• Cisco Compatible SFP-10G-LR-S-BCC 10GBASE-LR SFP+ Module
1 1

Blue Cable Co

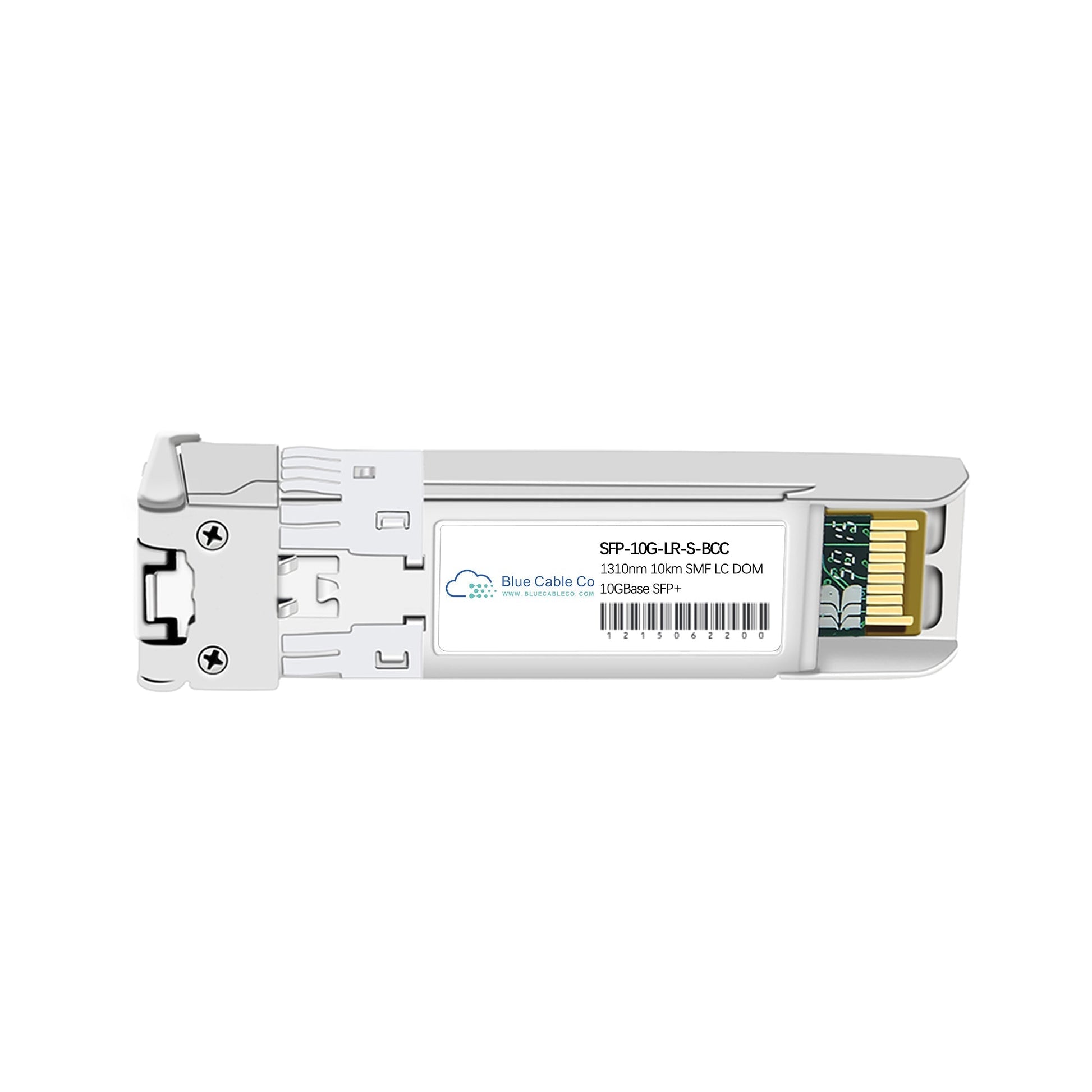

SFP-10G-LR-S-BCC | Cisco Compatible 10GBASE-LR SFP+ Module for SMF, S-Class (does not support FCoE)

SFP-10G-LR-S-BCC

43 in stock

$93.50 inc. GST
$85.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The SFP-10G-LR-S-BCC is a drop-in compatible replacement for the Cisco SFP-10G-LR-S. This module delivers plug-and-play 10 Gigabit Ethernet connectivity over single-mode fibre for Cisco switches and routers with SFP+ ports. - IEEE 802.3ae 10GBASE-LR compliance guarantees interoperability with any standards-compliant 10GbE equipment on the same link - SFP+ form factor, 10.3125 Gbps data rate, 1310nm wavelength, 10km reach on G.652 single-mode fibre, dual LC connector - Digital optical monitoring (DOM) support enables real-time access to temperature, laser bias current, transmit power, receive power, and supply voltage - S-Class design: Ethernet-only operation with commercial temperature range (0 to 70 degrees C), does not support FCoE, OTN, or WAN-PHY protocols - Hot-swappable design allows installation or replacement without powering down the host device - Fully compatible with 10GBASE XENPAK, X2, and XFP interfaces on the same optical link

Features

• IEEE 802.3ae 10GBASE-LR compliance ensures optical interoperability with 10GBASE XENPAK, X2, and XFP form factors on the same link, enabling mixed-generation deployments
• Single-rate Ethernet operation at 10.3125 Gbps with commercial temperature range (0 to 70 degrees C), purpose-built for enterprise and data centre environments without storage or transport protocol requirements
• 1310nm DFB laser transmitter with extinction ratio ≥ 3.5 dB and spectral width ≤ 1.0 nm guarantees clean signal transmission over G.652 single-mode fibre
• DOM capability via SFF-8472 two-wire serial interface provides real-time monitoring of five operating parameters plus alarm and warning flags for proactive link management
• Hot-swappable SFP+ form factor supports field installation and replacement without service interruption or chassis power-down
• Minimum 2m cabling distance per IEEE 802.3ae specification prevents receiver saturation on very short campus or intra-rack links
• S-Class architecture omits FCoE, OTN, and WAN-PHY multirate support to deliver cost-optimised 10GbE connectivity for pure Ethernet applications

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10G-LR-S-BCC
Compatible Replacement For: SFP-10G-LR-S
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3125 Gbps
Wavelength: 1310nm
Fibre Type: Single-Mode (SMF, G.652)
Connector Type: Dual LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae 10GBASE-LR, SFF-8431, SFF-8432
Max Reach: Up to 10km on standard single-mode fibre (G.652)
Operating Temperature: 0 to 70 degrees C (commercial)
Power Consumption: < 1W
Protocol Support: Ethernet only (does not support FCoE, OTN, or WAN-PHY)

Also Known As

SFP-10G-LR-S=

FAQs

Q: Will this work in place of the Cisco SFP-10G-LR-S?
A: Yes. The SFP-10G-LR-S-BCC is a direct plug-and-play replacement for the Cisco SFP-10G-LR-S, matching its SFP+ form factor, 10.3125 Gbps data rate, 1310nm wavelength, and 10km reach on G.652 single-mode fibre. It conforms to IEEE 802.3ae 10GBASE-LR and SFF-8431 electrical interface standards, ensuring compatibility with any Cisco switch or router that accepts the original part.

Q: Which Cisco platforms support this module?
A: This module works in any Cisco platform with SFP+ ports that support 10GBASE-LR optics. Compatibility is determined by the SFP+ port standard and the platform's support for 10 Gigabit Ethernet, not by specific model numbers. Consult the Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix for your platform to confirm SFP-10G-LR-S support, or verify that your device has SFP+ ports rated for 10GbE operation.

Q: What type of fibre and minimum cabling distance does this require?
A: This module requires G.652 single-mode fibre (OS2) with dual LC connectors. The minimum cabling distance is 2 metres per IEEE 802.3ae specification to prevent receiver saturation. Use patch cords with PC or UPC polish only; APC connectors are not supported. The maximum reach is 10 kilometres on standard single-mode fibre, subject to fibre quality and total link budget.

Q: Why does the S-Class designation matter for my network?
A: The S-Class designation indicates this is a single-rate, Ethernet-only module that does not support FCoE (Fibre Channel over Ethernet), OTN (Optical Transport Network), or WAN-PHY protocols. If your network requires pure 10 Gigabit Ethernet connectivity without storage or transport overlays, S-Class modules offer cost-effective performance. If you need FCoE for converged storage and data traffic, or multirate operation for OTN/WAN-PHY, select a non-S-Class module instead.

Q: Can I access DOM parameters, and what do they tell me?
A: Yes. This module supports digital optical monitoring (DOM) per SFF-8472, accessible via the two-wire serial interface at I2C address A2h. You can monitor transceiver temperature, laser bias current, transmitted optical power, received optical power, and supply voltage in real time. The module also provides alarm and warning flags that trigger when parameters exceed factory-set thresholds, enabling proactive troubleshooting of link degradation before traffic is affected.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney

Cisco sfp-10g-sr transceiver module with metallic housing and a white label displaying serial number, model details, and regulatory markings.
Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
Blue Cable Co
Cisco

Tested on real vendor hardware in Sydney

Every Blue Cable Co transceiver is coded for your platform and tested in our Sydney test rack on real vendor switches and firewalls before it ships. We check it is recognised and links up the same way the OEM optic does, so you don't find an "unsupported transceiver" error after it's installed.

Brands tested: Cisco, Meraki, Arista, Aruba, HPE, Juniper, Dell, Fortinet, Palo Alto, Check Point, Sophos, Moxa and NVIDIA. Speeds up to 100Gb.

  • 5 year replacement warranty
  • Sydney stock
  • Re-coding if you need it
