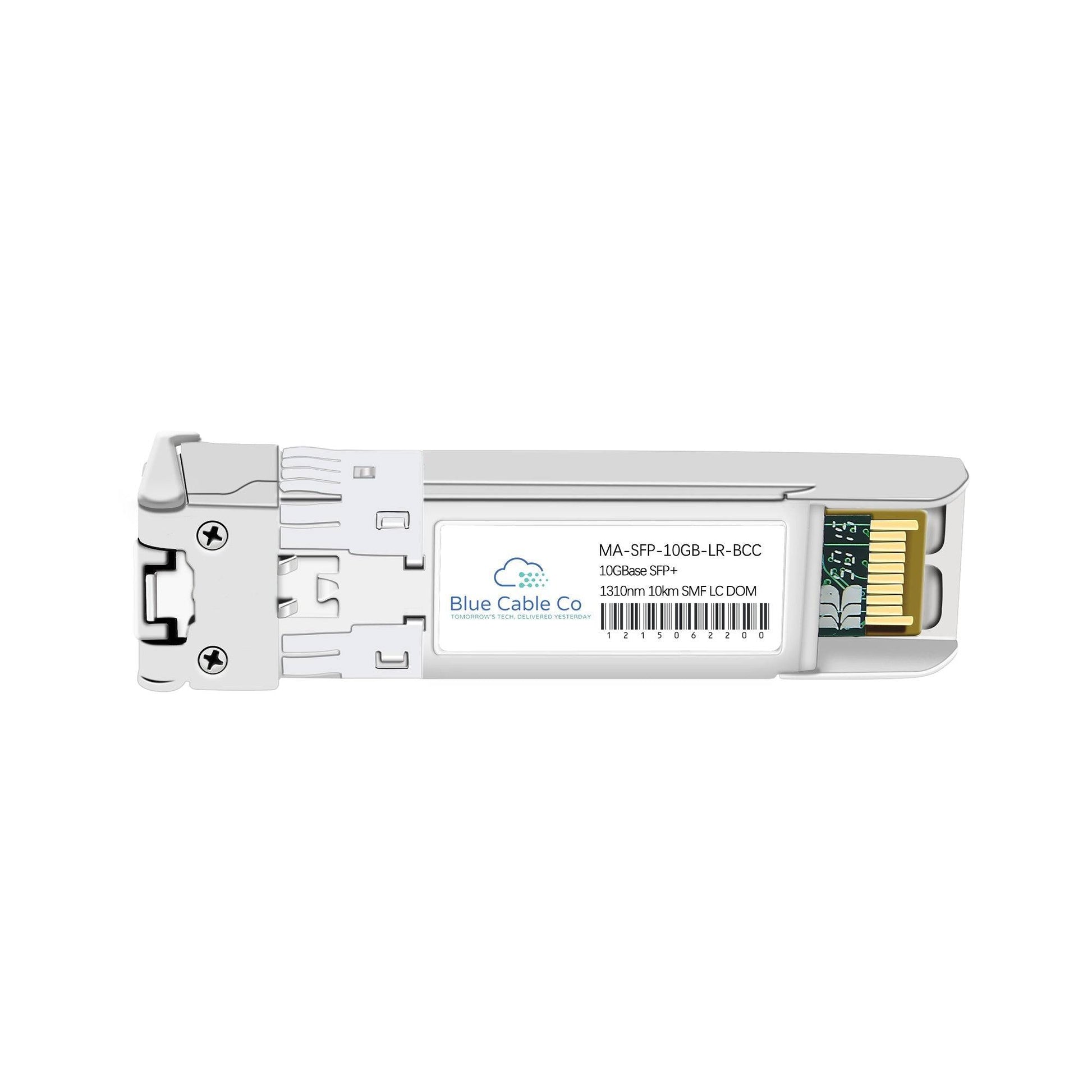

• Silver SFP+ 10GBASE-LR-ER transceiver module with Cisco-compatible label
1 1

Blue Cable Co

SFP-10G-LR-BCC | Cisco Compatible 10GB Single-Mode 10km (10GBASE-LR)

SFP-10G-LR-BCC

51 in stock

$90.20 AUD
$90.20 AUD
$90.20 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The SFP-10G-LR-BCC is a drop-in compatible replacement for the Cisco SFP-10G-LR. It operates as a plug-and-play solution in Cisco SFP+ ports requiring 10GBASE-LR connectivity over single-mode fibre. - IEEE 802.3ae 10GBASE-LR compliance guarantees interoperability with any standards-compliant 10 Gigabit Ethernet equipment - SFP+ form factor delivering 10.3125 Gbps over single-mode fibre (SMF G.652) at 1310 nm wavelength - Reaches 10 km with dual LC connector, suitable for campus backbone and building-to-building links - Digital diagnostic monitoring (DDM) via SFF-8472 provides real-time access to temperature, voltage, transmit power, receive power, and laser bias current - Hot-swappable design enables installation and removal without powering down the host platform

Features

• IEEE 802.3ae 10GBASE-LR compliance guarantees optical interoperability with 10GBASE XENPAK, X2, and XFP modules on the same link
• 1310 nm wavelength selected for low chromatic dispersion and favourable attenuation over standard G.652 single-mode fibre
• SFF-8472 DDM interface delivers real-time telemetry via I2C: temperature, supply voltage, transmit power, receive power, and laser bias current with alarm and warning thresholds
• Typical optical budget of 6 to 7 dB supports 10 km reach accounting for connector loss, fibre attenuation (0.5 dB/km at 1310 nm), and splice margin
• Hot-swappable SFP+ MSA form factor enables live insertion and removal without host power-down or service interruption
• Dual LC/PC connector interface requires PC or UPC polished patch cords; APC connectors are not supported per Cisco cabling specifications

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10G-LR-BCC
Compatible Replacement For: SFP-10G-LR
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3125 Gbps
Wavelength: 1310 nm
Fibre Type: Single-mode (SMF G.652)
Connector Type: Dual LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae 10GBASE-LR, SFF-8431, SFF-8432
Max Reach: 10 km (per IEEE 802.3ae, subject to fibre and link conditions)
Operating Temperature: 0°C to 70°C (commercial)

Also Known As

SFP-10G-LR=

FAQs

Q: Will this work in place of the Cisco SFP-10G-LR?
A: Yes. The SFP-10G-LR-BCC is fully compliant with IEEE 802.3ae 10GBASE-LR and the SFP+ MSA, matching the Cisco SFP-10G-LR in form factor, data rate, wavelength, and reach. It operates as a plug-and-play replacement in any Cisco SFP+ port that accepts the SFP-10G-LR.

Q: Which Cisco platforms support this transceiver?
A: This module works in Cisco switches and routers with SFP+ ports that support 10GBASE-LR optics, including Nexus and Catalyst series platforms. Specific model compatibility depends on the platform's support for standard 10GBASE-LR SFP+ modules; consult your device's transceiver compatibility matrix or contact us for platform-specific confirmation.

Q: What type of fibre and patch cords are required for 10 km reach?
A: This module requires standard single-mode fibre (SMF G.652, 9/125 micron core) with dual LC connectors. Patch cords must have PC (physical contact) or UPC (ultra-physical contact) polish; APC (angled physical contact) connectors are not supported. The 10 km reach assumes typical fibre attenuation of 0.5 dB/km at 1310 nm plus connector and splice losses within the IEEE-defined optical budget.

Q: How do I access DDM parameters to monitor link health?
A: DDM parameters are accessible via the SFF-8472 two-wire serial interface (I2C) at address A2h. Most network operating systems and management platforms poll this interface automatically to display real-time temperature, voltage, transmit power, receive power, and laser bias current. Check your switch CLI or management software for commands to display optical transceiver diagnostics.

Q: Can this module operate at data rates below 10 Gbps, such as 1 Gigabit Ethernet?
A: No. The SFP-10G-LR-BCC is a 10GBASE-LR module designed for 10.3125 Gbps signalling. It does not support 1 Gigabit Ethernet (1000BASE-LX) or other lower data rates. For multi-rate applications requiring both 1G and 10G support, confirm your platform supports dual-rate SFP+ modules or select a module explicitly specified as multi-rate.
