• Juniper Compatible QSFPP-4X10GE-SR-BCC 40GB Fiber Optic Connector
1 1

Blue Cable Co

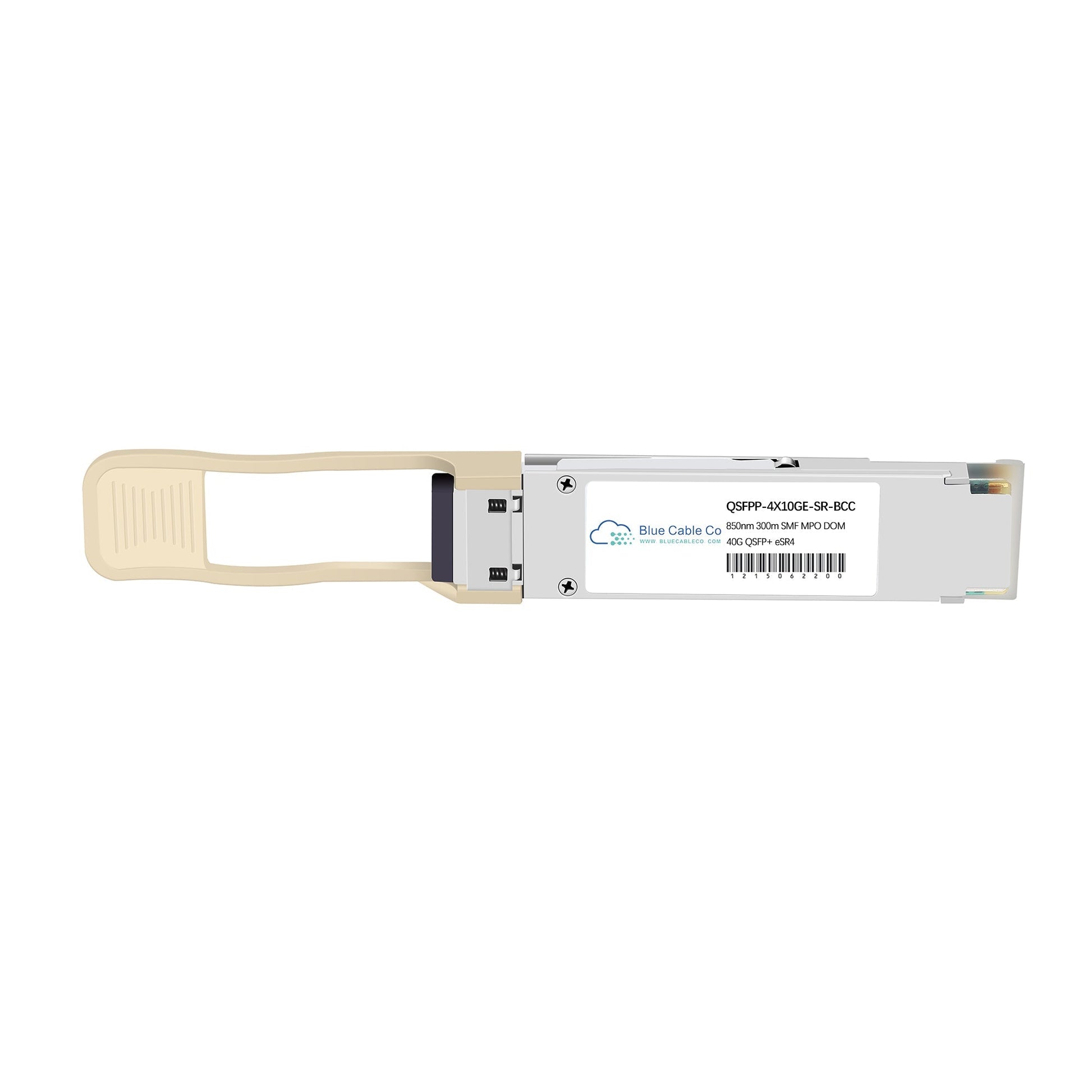

QSFPP-4X10GE-SR-BCC | Juniper Compatible 40GB Multi-Mode 400m (40GBASE-CSR4)

QSFPP-4X10GE-SR-BCC

20 in stock

$212.30 inc. GST
$193.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFPP-4X10GE-SR-BCC is a drop-in compatible replacement for the Juniper QSFPP-4X10GE-SR. It operates as a plug-and-play solution in Juniper EX, QFX, and MX series platforms with 40G QSFP+ ports. - IEEE 802.3ba 40GBASE-SR4 compliance guarantees interoperability with standards-compliant 40G interfaces and supports 4x10GBASE-SR breakout mode - QSFP+ form factor, 40 Gbps aggregate data rate over four 10 Gbps lanes, 850nm VCSEL wavelength, MTP/MPO-12 connector - Multi-mode fibre: up to 400m on OM4, 300m on OM3, 100m on OM2 (subject to fibre quality and link budget) - 4x10G breakout support via MTP-to-LC breakout cable for connectivity to four independent 10GBASE-SR interfaces - Digital diagnostic monitoring (DOM) via I2C interface for real-time access to optical power, temperature, bias current, and voltage parameters - Hot-swappable installation, standard 0 to 70 degrees C operating temperature range

Features

• IEEE 802.3ba 40GBASE-SR4 compliance ensures full interoperability with any standards-compliant 40G optical interface, while per-lane 10GBASE-SR compliance guarantees breakout mode compatibility with 10G SFP+ interfaces over the full specification range
• Four independent parallel optical lanes operating at 10.3125 Gbps each, using VCSEL transmitters and PIN photodiode receivers, enable aggregate 40 Gbps throughput or 4x10G breakout via external MTP-to-LC fibre ribbon cable
• Hot-swappable with automatic link initialization and no host reboot required; individual lanes can be monitored independently via DOM, useful for troubleshooting multi-lane links or verifying balanced power distribution in breakout deployments
• Optimized transmit and receive characteristics prevent receiver overload when used in 4x10G breakout mode with 10GBASE-SR SFP+ modules, avoiding false DOM alarm triggers while maintaining standards compliance across the optical budget range
• OM3 and OM4 laser-optimized multimode fibre support with modal bandwidth requirements per IEEE 802.3ba; OM5 wideband multimode fibre also supported for future SWDM applications, though 850nm operation uses standard SR4 parallel transmission
• Power consumption typically under 2.5W with 3.3V single supply operation; LVCMOS control signals (ModSelL, IntL, ResetL, LPMode) provide module presence detection, interrupt notification, and low-power state management per MSA specification

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFPP-4X10GE-SR-BCC
Compatible Replacement For: QSFPP-4X10GE-SR
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+
Data Rate: 40 Gbps (4 x 10 Gbps lanes)
Wavelength: 850nm (VCSEL)
Fibre Type: Multi-mode (OM2, OM3, OM4, OM5)
Connector Type: MTP/MPO-12 female
DOM Support: Yes (Digital Diagnostic Monitoring)
Standards: IEEE 802.3ba 40GBASE-SR4, IEEE 802.3ae 10GBASE-SR (per lane), QSFP+ MSA (SFF-8436)
Max Reach: Up to 400m on OM4, 300m on OM3, 100m on OM2 (per IEEE specifications, subject to fibre and link conditions)
Operating Temperature: 0 to 70 degrees C (commercial)

Also Known As

740-054053

FAQs

Q: Will this work in place of the Juniper QSFPP-4X10GE-SR?
A: Yes. The QSFPP-4X10GE-SR-BCC is fully compatible based on QSFP+ form factor, IEEE 802.3ba 40GBASE-SR4 compliance, and 850nm wavelength over multimode fibre. It is a plug-and-play replacement and will initialize identically in any platform that accepts the Juniper original.

Q: Which Juniper platforms support this transceiver?
A: This module is compatible with Juniper platforms equipped with 40G QSFP+ ports, including EX series switches (such as EX4400, EX4650), QFX series switches (QFX5230, QFX10002), and MX series routers with 40G MIC or MPC line cards. Verify your specific model and Junos OS version support 40GBASE-SR4 or 4x10G breakout configuration.

Q: What fibre type and reach does this module support, and how does OM3 vs OM4 affect distance?
A: This transceiver requires laser-optimized multimode fibre with sufficient modal bandwidth. IEEE 802.3ba specifies 100m on OM3 and 150m on OM4 for 40GBASE-SR4. Extended-reach variants (40GBASE-CSR4) can achieve 300m on OM3 and 400m on OM4. Actual reach depends on fibre effective modal bandwidth, connector insertion loss, and total link budget.

Q: How does 4x10G breakout work, and what cable is required?
A: Breakout is achieved using a 12-fibre MTP/MPO to 4x LC duplex ribbon cable (Type B polarity). The host 40G QSFP+ port is configured via CLI to split into four independent 10G interfaces, each compliant with 10GBASE-SR. The breakout cable connects to four separate 10G SFP+ modules or ports. Each lane operates independently with its own DOM parameters.

Q: Does this module require forward error correction (FEC) or specific host configuration?
A: No FEC is required for 40GBASE-SR4 over the specified multimode fibre distances per IEEE 802.3ba. The transceiver operates with standard NRZ modulation at 10.3125 Gbps per lane. For breakout mode, the host platform must support channelization of the 40G port into 4x10G interfaces, typically configured via Junos CLI using the port-split or channelization command depending on platform and OS version.
