• Arista Compatible QSFP-100G-SR4-BCC 100GB Multi-Mode Fiber Optic Connector
1 1

Blue Cable Co

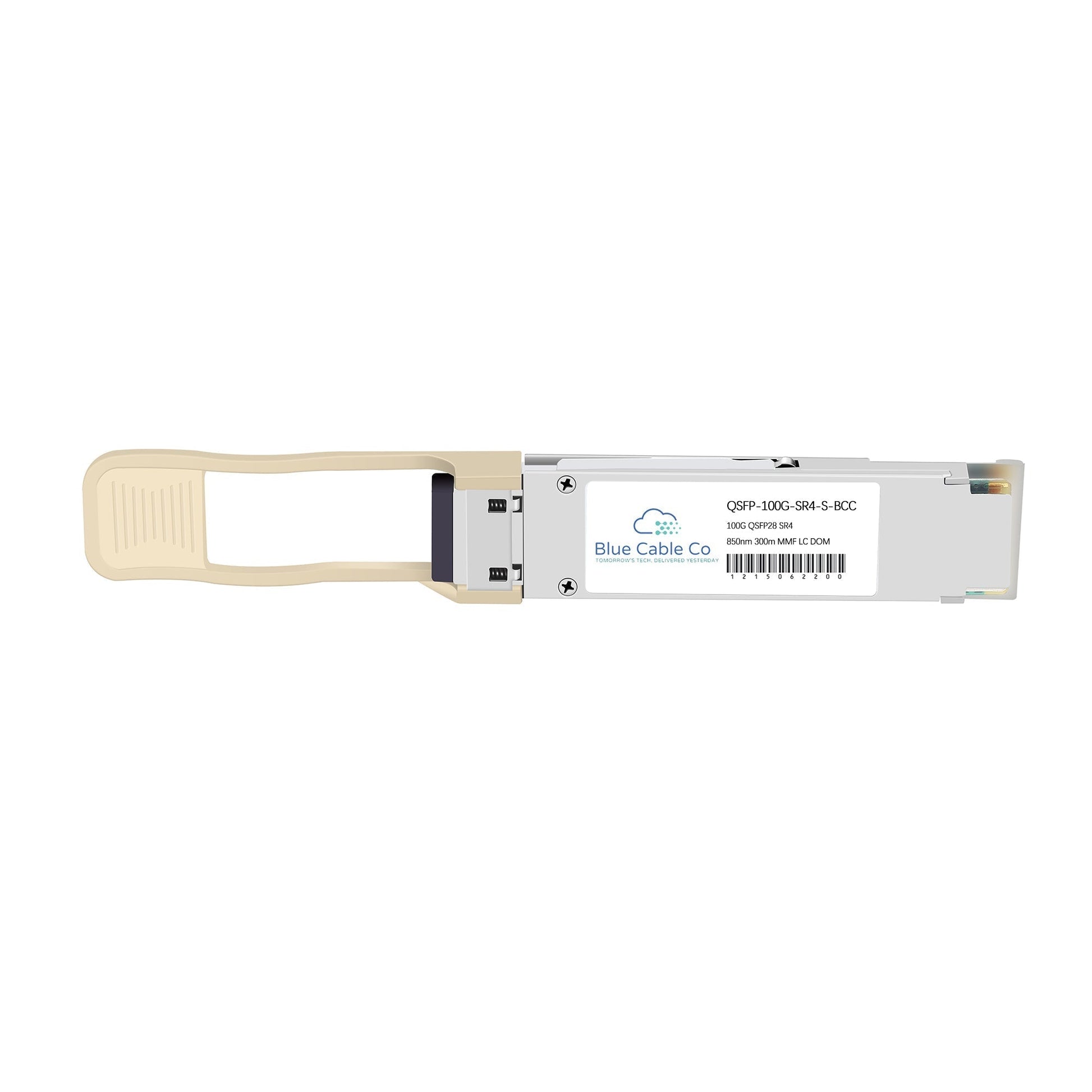

QSFP-100G-SR4-BCC | Arista Compatible 100GB Multi-Mode 100m (100GBASE-SR4)

QSFP-100G-SR4-BCC

24 in stock

$196.90 inc. GST
$179.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The QSFP-100G-SR4-BCC is a drop-in compatible replacement for the Arista QSFP-100G-SR4. This QSFP28 transceiver operates as plug-and-play in Arista switches with QSFP28 ports, delivering 100GB Ethernet connectivity over multi-mode fibre. - IEEE 802.3bm 100GBASE-SR4 and QSFP28 MSA compliant, ensuring interoperability with industry-standard hardware and infrastructure - QSFP28 form factor with 4 parallel 25GB channels delivering 100GB aggregate throughput at 850nm wavelength via MTP/MPO-12 connector - Reaches 70m over OM3 or 100m over OM4 multi-mode fibre with typical 1.9dB link budget - Digital diagnostic monitoring (DDM) provides real-time visibility into optical power, temperature, bias current, and supply voltage - Hot-swappable design supports live installation and removal without disrupting host equipment operation - Compatible with 100G to 4x25G breakout configurations for flexible network topologies

Features

• IEEE 802.3bm compliance guarantees optical and electrical interoperability with 100GBASE-SR4 infrastructure, eliminating vendor lock-in for parallel optics deployments
• Four independent 25Gbps VCSEL transmit channels and PIN receiver channels enable full-duplex 100Gbps operation with lane-level redundancy and failure isolation
• 850nm VCSEL array technology optimizes cost and power efficiency for short-reach multi-mode applications while maintaining robust link margins across OM3 and OM4 fibre types
• Hot-swappable QSFP28 MSA mechanical and electrical interface allows field installation and removal without powering down the host switch or router
• 1.9dB minimum link budget specification accommodates typical data centre patching scenarios including panel terminations and cross-connects within rated reach
• Supports both native 100G links and 4x25G breakout modes via MTP/MPO-to-LC fanout assemblies, enabling migration from 25G to 100G infrastructure
• DDM parameters accessible via I2C management interface provide optical Tx/Rx power, temperature, bias current, and voltage telemetry for proactive link health monitoring

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFP-100G-SR4-BCC
Compatible Replacement For: QSFP-100G-SR4
Compatibility: Arista compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28
Data Rate: 103.125 Gbps (4x 25.78125 Gbps)
Wavelength: 850nm (840-860nm range)
Fibre Type: Multi-mode (OM3/OM4)
Connector Type: MTP/MPO-12 male
DOM Support: Yes (DDM per QSFP28 MSA)
Standards: IEEE 802.3bm 100GBASE-SR4, QSFP28 MSA (SFF-8665), CAUI-4
Max Reach: Up to 70m over OM3, 100m over OM4 (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70°C (commercial grade)
Power Consumption: ≤2.5W typical

FAQs

Q: Will this work in place of the Arista QSFP-100G-SR4?
A: Yes. The QSFP-100G-SR4-BCC is engineered to the same IEEE 802.3bm 100GBASE-SR4 and QSFP28 MSA specifications as the Arista QSFP-100G-SR4, with matching form factor, data rate, wavelength, and reach. It operates plug-and-play in Arista QSFP28 ports without configuration changes.

Q: Which Arista platforms support this transceiver?
A: This module works in any Arista switch or router with QSFP28 ports that support 100GBASE-SR4 optics. Compatibility is determined by the QSFP28 electrical interface and 100GBASE-SR4 standard support, not specific platform models. Verify your platform documentation lists 100GBASE-SR4 QSFP28 support.

Q: What is the difference in reach between OM3 and OM4 fibre, and why does it matter?
A: OM3 fibre supports up to 70m at 850nm due to higher modal dispersion, while OM4 offers 100m with lower attenuation and better modal bandwidth. The difference matters in data centre spine-leaf architectures where OM4 provides the margin needed for 100m end-of-row connections, while OM3 limits you to shorter top-of-rack runs.

Q: Can I use this transceiver in 4x25G breakout mode with a fanout cable?
A: Yes. The four independent 25Gbps lanes can be broken out via an MTP/MPO-12 to 4x duplex LC fanout cable. Each lane operates as a discrete 25GBASE-SR link. The host switch must support breakout configuration, and FEC requirements depend on your switch platform and NOS version.

Q: Does this module require FEC to achieve the rated 100m reach over OM4?
A: FEC is typically not required for the physical layer to reach 100m over OM4, as the 1.9dB link budget and 850nm VCSEL performance are sufficient. However, some switch platforms enable FEC by default for 100G interfaces to improve bit error rate margins. Check your platform behaviour, as FEC adds latency but improves link robustness in marginal installations.
