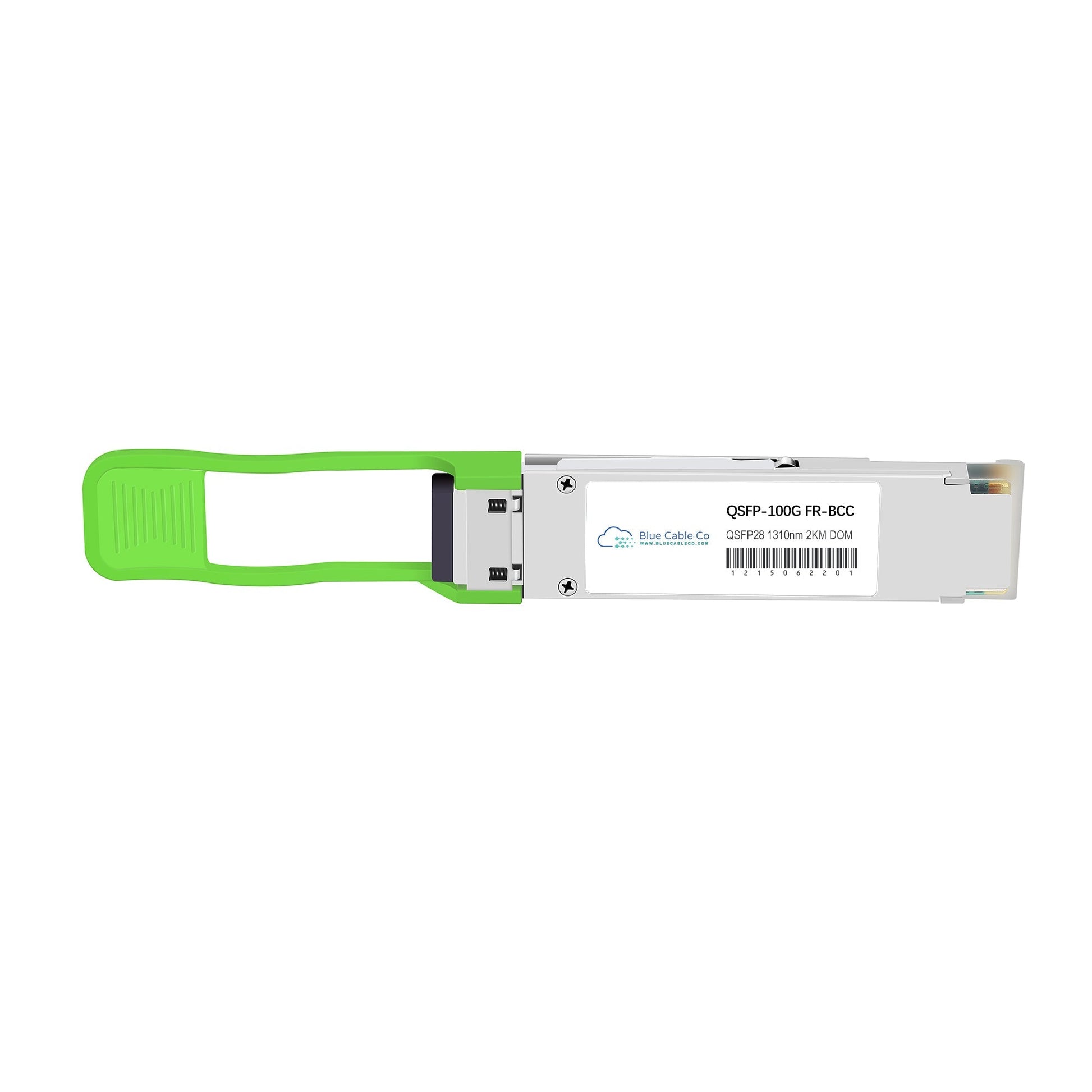

QSFP-100G-FR-BCC | Juniper Compatible 100G Single-Mode 2km (100GBASE-FR)

QSFP-100G-FR-BCC

Stock Status: Enquire

$1,072.50 AUD
$1,072.50 AUD
$1,072.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The QSFP-100G-FR-BCC is a drop-in compatible replacement for the Juniper QSFP-100G-FR. This QSFP28 transceiver is plug-and-play compatible with Juniper platforms that support 100GBASE-FR optics. - 100GBASE-FR1 compliant, guaranteeing interoperability on 100G Ethernet links requiring 2km single-mode reach - QSFP28 form factor with duplex LC connector, 1310nm wavelength, and up to 2km transmission over single-mode fibre - Single lambda PAM4 modulation with 4x 25G NRZ electrical host interface, delivering 100G over two fibres instead of eight - Media-side RS FEC (544,514) mandatory for reliable PAM4 transmission, host-side CAUI-4 interface requires no FEC - DOM support for real-time monitoring of optical power, temperature, bias current, and supply voltage - Operating temperature range 0 to 70 degrees Celsius, standard commercial temperature specification

Features

• 100GBASE-FR1 compliance ensures full interoperability with IEEE 802.3cu standard 100G Ethernet over single-mode infrastructure at 2km reach
• Single lambda PAM4 architecture uses one optical wavelength at 53.125 Gbaud to deliver 100G capacity over duplex fibre, simplifying cabling versus parallel 4-lane solutions
• Media-side RS FEC (544,514) is mandatory and enabled by default to support PAM4 error correction; host-side CAUI-4 electrical interface operates without FEC
• Cooled EML (Electro-absorption Modulated Laser) transmitter and PIN receiver provide 4 dB minimum optical link budget for reliable 2km transmission over G.652 single-mode fibre
• Host interface presents four 25.78125 Gbps NRZ electrical lanes conforming to CAUI-4, with gearbox converting to single 50 Gbaud PAM4 optical signal
• Hot-swappable design conforms to SFF-8636 and SFF-8665 MSA, supporting standard QSFP28 cages and thermal management systems
• DOM provides real-time monitoring of transmit/receive optical power, module temperature, laser bias current, and supply voltage via I2C interface

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: QSFP-100G-FR-BCC
Compatible Replacement For: QSFP-100G-FR
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP28
Data Rate: 100G (103.125 Gbps aggregate, 4x 25.78125 Gbps electrical)
Standards: 100GBASE-FR1, QSFP28 MSA, 100G Lambda MSA
Wavelength: 1310nm (1304.5 to 1317.5nm range)
Fibre Type: Single-Mode (SMF)
Connector Type: Duplex LC
Max Reach: Up to 2km (per datasheet, subject to fibre and link conditions)
Modulation: Single lambda PAM4 (50 Gbaud optical), 4x 25G NRZ (host electrical)
FEC: Media-side RS (544,514) FEC enabled, host-side CAUI-4 no FEC
DOM Support: Yes
Operating Temperature: 0 to 70 degrees Celsius (standard temperature)

Also Known As

740-088320

FAQs

Q: Will this work in place of the Juniper QSFP-100G-FR?
A: Yes. The QSFP-100G-FR-BCC is fully compliant with the 100GBASE-FR1 standard and matches the QSFP28 form factor, 100G data rate, 1310nm wavelength, duplex LC connector, and 2km single-mode reach of the Juniper QSFP-100G-FR. It is plug-and-play compatible and requires no configuration changes.

Q: Which Juniper platforms support this transceiver?
A: This transceiver works in any Juniper platform with QSFP28 ports that support 100GBASE-FR optics and RS FEC. The platform must provide CAUI-4 electrical signaling (4x 25G NRZ) and support the media-side RS (544,514) FEC required for PAM4 operation. Consult Juniper documentation to confirm 100GBASE-FR support for your specific model.

Q: Why does this module require FEC to be enabled?
A: PAM4 modulation uses four amplitude levels instead of two, reducing the signal-to-noise ratio compared to NRZ. Media-side RS (544,514) FEC is mandatory in the 100GBASE-FR1 specification to detect and correct bit errors introduced by this reduced margin, ensuring reliable 2km transmission. The FEC is enabled by default on the optical side; host-side FEC is not required.

Q: Can I use this transceiver with OM3 or OM4 multi-mode fibre?
A: No. This is a single-mode transceiver designed for G.652 single-mode fibre with 9/125 micron core. It will not function over multi-mode fibre (OM3, OM4, or OM5). The 1310nm wavelength and EML laser are optimized for single-mode propagation and the 4 dB link budget assumes single-mode attenuation characteristics.

Q: How does the single lambda PAM4 architecture differ from 100GBASE-LR4?
A: 100GBASE-FR1 uses one 1310nm wavelength modulated with PAM4 at 53.125 Gbaud over duplex fibre. 100GBASE-LR4 uses four separate CWDM wavelengths (around 1295nm to 1330nm) each carrying 25G NRZ over duplex fibre with passive multiplexing. FR1 simplifies the optical design and reduces cost but requires mandatory FEC and reaches only 2km, whereas LR4 reaches 10km without requiring FEC.
