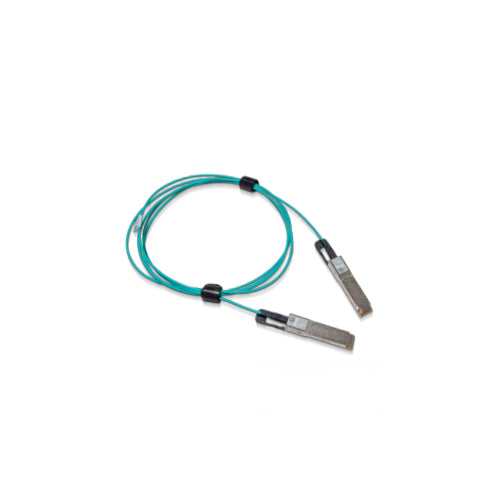

• NVIDIA MFS1S00-H130V 200Gb/s QSFP56 AOC with 80cm teal silver fiber optic cable
1 1

NVIDIA

NVIDIA MFS1S00-H130V | LinkX 200G QSFP56 Active Optical Cable, MMF, 130m

MFS1S00-H130V

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA LinkX MFS1S00-H130V is a VCSEL-based QSFP56 multi-mode active optical cable for 200Gb/s InfiniBand HDR and 200GbE links. It carries a QSFP56 connector on each end and is built for data-centre and HPC links between InfiniBand HDR switches, adapters and systems where distances run beyond passive copper reach. It also suits 200GbE links between SN3700 and SN4600 switches.

This SKU is the 130m length. It runs 4 x 50Gb/s PAM4 over 850nm multi-mode fibre, with SFF-8665 compliant QSFP56 connectors at both ends. Power comes from a single 3.3V supply, drawing 4.8W typical and 5.0W maximum per end with retiming on all lanes, and the cable is rated for an operating case temperature of 0 to 70 C.

The cable is hot pluggable and uses an SFF-8636 compliant I2C management interface with digital diagnostic monitoring. It is intended for NVIDIA and Mellanox 200Gb/s InfiniBand HDR systems with QSFP56 ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports IBTA InfiniBand HDR and 200GbE
- Selectable retiming per lane for optical transmitters and receivers
- Programmable Rx output amplitude and pre-emphasis
- Hot pluggable for easy installation and replacement
- Much longer reach than passive copper cables with high port density
- Single 3.3V power supply
- SFF-8636 I2C management interface with digital diagnostic monitoring (DDM)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Data rate: up to 200Gb/s (4 x 50Gb/s PAM4)
- Supported protocols: IBTA InfiniBand HDR and 200GbE
- Connector: QSFP56 (SFF-8665 compliant), both ends
- Fibre type: multi-mode fibre (MMF), 4 optical transceivers per end
- Wavelength: 850nm VCSEL
- Length: 130m
- Supply voltage (Vcc): 3.135 min / 3.3 typ / 3.465 max V
- Power dissipation per end (retiming on all lanes): 4.8W typical, 5.0W maximum
- Supply noise tolerance (10Hz-10MHz): 66 mVpp min
- Operating case temperature: 0 to 70 C
- Operating relative humidity: 5 to 85%
- Signalling rate (PAM4): 53.125 Gb/s per lane (+/-100 ppm)
- Signalling rate (NRZ): 25.78125 Gb/s per lane (+/-100 ppm)
- Differential data input swing at TP1a: 900 mVpp max
- Differential data output swing at TP4: 900 mVpp max
- Pin assignment: SFF-8679 compliant
- Management interface: SFF-8636 compliant I2C
- Retiming: selectable per lane (Tx and Rx) up to 50Gb/s
- Compliance: RoHS

FAQs

Q: What does this cable connect?
A: It links NVIDIA and Mellanox 200Gb/s InfiniBand HDR systems with QSFP56 ports, and 200GbE links between SN3700 and SN4600 switches.

Q: How much power does it draw?
A: It runs from a single 3.3V supply provided by the host port, drawing 4.8W typical and 5.0W maximum per end with retiming on all lanes.

Q: Does it need a licence or separate optics?
A: No. It is a fixed active optical cable with QSFP56 connectors on both ends, so no separate transceivers are needed.

Q: How does the 130m cable differ from other lengths in this range?
A: The MFS1S00-HxxxV range shares the same 200Gb/s QSFP56 multi-mode design. The suffix sets the cable length, and this SKU is the 130m version.

Q: Can it be hot plugged and monitored?
A: Yes. It is hot pluggable and has an SFF-8636 compliant I2C management interface with digital diagnostic monitoring.
