NVIDIA MFP7E40-N020 | SMF OS2 MPO-12 APC to dual MPO-12 APC passive trunk, 20m

SKU:MFP7E40-N020

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density single‑mode trunk harness with MPO‑12 APC on one end and dual MPO‑12 APC on the other for streamlined leaf–spine and patch‑panel interconnects. Passive, low‑reflectance APC polish supports long‑reach, high‑bandwidth links when paired with compatible optics and panels.

Features

- High‑density MPO‑12 to dual MPO‑12 architecture simplifies rack‑to‑rack cabling
- APC polish for low reflectance in long‑reach links
- Passive design—no power, no firmware, speed‑agnostic
- Factory‑terminated ends for consistent performance
- Single‑mode OS2 fiber for data center and campus backbones
- 20 m length suited for row‑to‑row and aggregation runs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this an active optical cable?
A: No. It is a passive single‑mode fiber trunk harness with MPO‑12 APC connectors.

Q: Can I mate this APC connector with UPC?
A: No. Do not mix APC with UPC; doing so degrades performance and can damage endfaces.

Q: What speeds does it support?
A: As a passive SMF cable it is speed‑agnostic and supports whatever the connected MPO‑based optics/panels support (e.g., 100G/200G/400G), within optical budgets.

Q: Is polarity Type A or Type B?
A: Polarity is not specified. Verify required polarity for your system and select accordingly.

Q: Is it single‑mode or multimode?
A: Single‑mode (OS2). Use with SMF infrastructures and single‑mode MPO optics.

Q: Are the connectors male (pinned) or female (unpinned)?
A: Not specified. Check the pin requirement of your equipment and match accordingly.

Technical Specifications

- Cable type: Single-Mode Fiber (SMF), OS2 9/125 µm

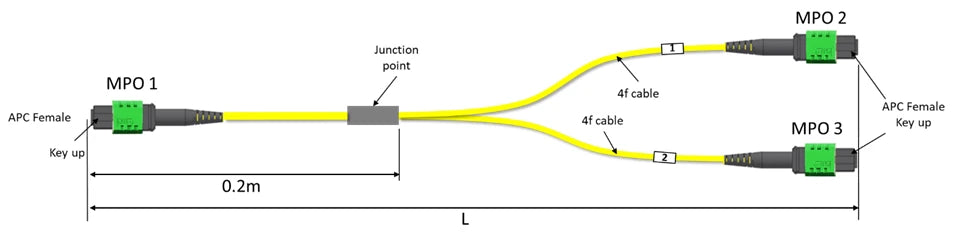

- Configuration: MPO‑12 APC to 2x MPO‑12 APC (dual‑leg harness)
- Polish/return interface: APC (8° angle) on all connectors
- Mode/compatibility: For OS2 SMF infrastructures and MPO‑based systems
- Operation: Passive optical cable (no electronics)
- Length: 20 m
- Use cases: Data center backbones, leaf–spine, AI/HPC clusters, patch‑panel trunks
- Connector gender/pins: MPO‑12 APC (check port pin requirement; not specified)
- Polarity: Not specified (verify required polarity with your system)
- Standards: MPO connector family per IEC 61754‑7 series
- Environment: Intended for indoor structured cabling
