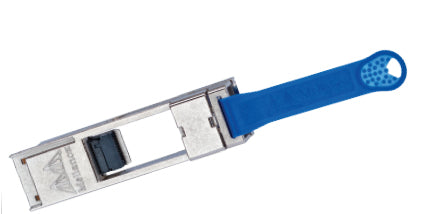

• NVIDIA QSFP+ to SFP+ adapter with silver blue fiber optic connector
1 1

NVIDIA

NVIDIA 980-9I71G-00J000 | LinkX QSA QSFP+ to SFP+ 10GbE Adapter, Standard Temp

980-9I71G-00J000

Stock Status: Enquire

$177.10 inc. GST
$161.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This passive QSFP+ to SFP+ adapter (QSA) lets an SFP+ or SFP transceiver or cable be used in a QSFP+ port, enabling 10GbE or 1GbE links on 40GbE switch or NIC ports. The standard temperature version suits typical data centre and enterprise environments with an operating case temperature of 0 to 70°C. Its vendor-agnostic, low insertion loss design makes it a practical way to reuse existing SFP+ optics and direct attach cables when migrating or mixing speeds.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Connects a single-lane SFP+ or SFP transceiver or cable to a quad-lane QSFP+ port
- Allows a switch QSFP+ port to link to a NIC SFP port, or a NIC QSFP+ port to a switch SFP port
- Interoperates with major optical module and direct attach copper cable vendors
- Low insertion loss on the conversion path between the QSFP+ cage and the SFP receptacle
- Passive design with no external power required
- Industry-standard compliance and strict quality testing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connector on first end: QSFP+
- Connector on second end: SFP+
- Supports 10GbE SFP+ and 1GbE SFP transceivers meeting the SFP MSA
- Compliant with QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8418/8419
- SFP receptacle connected to lane 1 of the QSFP+ connector, other three lanes not connected
- Passive, vendor-agnostic design with low insertion loss
- Supply voltage: 3.15 to 3.45V
- Operating case temperature: 0 to 70°C (standard version)
- Conversion: 40Gb/s QSFP+ port to 10Gb/s SFP+

FAQs

Q: What does this adapter do?
A: It converts a QSFP+ port into a single SFP+ or SFP port, so a 10GbE SFP+ transceiver or direct attach cable can be used in a 40GbE QSFP+ port.

Q: How many lanes are active when using the adapter?
A: Only lane 1 of the QSFP+ connector is connected to the SFP receptacle. The other three lanes are not connected, so the port operates as a single 10GbE link.

Q: Can it be used with both SFP+ and SFP modules?
A: Yes. It is qualified for 10GbE SFP+ and 1GbE SFP transceivers that meet the SFP MSA.

Q: Is this the standard or extended temperature version?
A: This is the standard temperature version, rated for an operating case temperature of 0 to 70°C. An extended-temperature variant is sold under a separate part number with an _E suffix.

Q: Is the adapter vendor-agnostic?
A: Yes. It is a passive design that interoperates with major optical module and direct attach copper cable vendors.
