NVIDIA

NVIDIA 980-9I580-00N030 | LinkX NDR MPO-12 APC Fibre Cable, SMF OS2, 40m

SKU:980-9I580-00N030

$333.96 inc. GST
$303.60 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

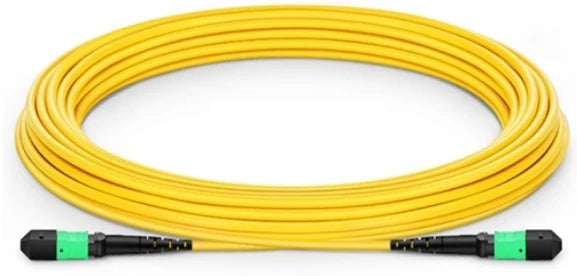

This 40m single-mode (OS2) passive fibre trunk cable terminates in MPO-12 APC connectors at both ends. It is designed for NDR 400G and 800G InfiniBand and Ethernet links, connecting MPO-12 transceivers such as DR4-class optics in structured data-centre cabling. The yellow-jacketed cable is passive, so it draws no power, and suits high-density spine-leaf deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Validated for use with NVIDIA Quantum-2 and ConnectX-8 platforms
- Straight 4-channel MPO-12 APC fibre cabling for DR4-class optics
- High-density MPO-12 connectivity for structured data-centre cabling
- Passive cable with no power draw
- Suited to spine-leaf network designs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Fibre type: single-mode (SMF / OS2, 9/125 µm)
- Connectors: MPO-12 APC to MPO-12 APC
- Length: 40 m
- Data rate class: NDR (400G/800G)
- Wavelength window: 1310 nm (PSM4/DR4 optics)
- Jacket colour: yellow
- Legacy OPN: MFP7E30-N040
- NVIDIA P/N: 980-9I580-00N030

FAQs

Q: What type of fibre does this cable use?
A: It uses single-mode OS2 (9/125 µm) fibre with MPO-12 APC connectors at both ends.

Q: Which optics is this cable intended for?
A: It is intended for MPO-12 transceivers such as DR4-class optics operating in the 1310 nm window on NDR 400G and 800G InfiniBand and Ethernet links.

Q: Does this cable require power?
A: No. It is a passive fibre cable and draws no power.

Q: How does this SKU differ from other cables in the range?
A: This SKU is the 40m length with MPO-12 APC to MPO-12 APC termination on single-mode fibre. Other SKUs in the family differ by length or connector configuration.
