NVIDIA

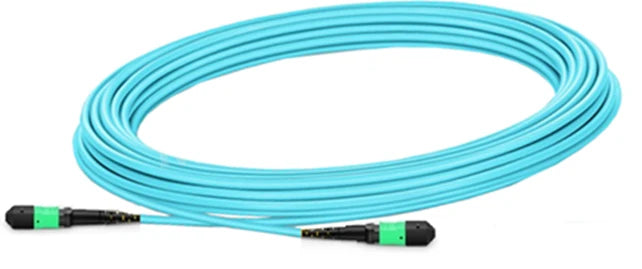

NVIDIA 980-9I57Y-000015 | MMF MPO-12 APC trunk, 850nm SR4, Type-B, 15m, up to 200G, MPO-12 to MPO-12

SKU:980-9I57Y-000015

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Enterprise-grade MPO-12 multimode trunk designed for SR4 optics in Ethernet and InfiniBand networks. MPO-12 APC connectors on both ends with Type-B polarity enable straightforward 40/100/200G patching for QSFP-SR4 and QSFP56-SR4 ports. Length: 15 m; jacket color: Blue.

Features

- MPO-12 APC both ends for high-density SR4 links
- SR4 multimode performance up to 200G
- Type-B polarity for correct lane mapping
- Factory-terminated for low-loss, consistent performance
- 15 m length balances reach and loss for row-to-row connectivity

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will this work with QSFP28 SR4 100G modules?
A: Yes, it is designed for SR4 at 850 nm and supports 100G SR4.

Q: Is the cable polarity Type-B?
A: Yes, it uses Type-B polarity, standard for SR4 links.

Q: Does this cable have pins?
A: It is intended to be unpinned (female) to mate with pinned SR4 transceivers; verify your optics’ pin requirements.

Q: Is it suitable for 400G SR8?
A: No, SR8 typically requires MPO-16. This cable is MPO-12 for SR4.

Q: Can it be used in InfiniBand HDR environments?
A: Yes, with appropriate SR4-based HDR optics and within multimode reach limits.

Technical Specifications

- Cable type: Passive multimode fiber trunk
- Fiber: MMF (50/125 µm), optimized for 850 nm SR4
- Connectors: MPO-12 APC to MPO-12 APC
- Polarity: Type-B (key-up to key-up)
- Length: 15 m
- Jacket color: Blue
- Supports: 40/100/200GbE SR4, InfiniBand EDR/HDR SR4
- Typical channel reach with SR4 optics: up to 100 m on suitable MMF plant
- Compliance: RoHS
- Ideal for: QSFP/QSFP28/QSFP56 SR4 patching in leaf-spine fabrics
