NVIDIA

NVIDIA 980-9I57W-000007 | LinkX NDR MPO-12/APC MMF Trunk Cable, 7m, Type B

SKU:980-9I57W-000007

$154.33 inc. GST
$140.30 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

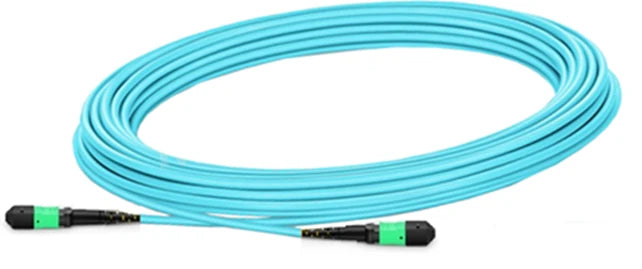

Passive multimode fibre trunk cable with MPO-12/APC connectors at both ends, 7m long, built for NDR InfiniBand and 400GbE SR4 links at 850nm. It connects multimode OSFP and QSFP112 transceivers across racks, using OM3/OM4 50/125um fibre with Type B polarity and an aqua jacket. The APC polish keeps back-reflection low, and the passive design draws no power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Validated and supported for NDR InfiniBand and 400GbE links including Quantum-2, ConnectX-8 and BlueField-3
- Designed to connect multimode twin-port OSFP, single-port OSFP and QSFP112 transceivers
- Passive cable with no power draw
- APC polish with an 8-degree angle for low back-reflection
- Type B polarity suited to SR4 parallel optic links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Part number: 980-9I57W-000007 (legacy OPN MFP7E10-N007)
- Length: 7m
- Connectors: MPO-12/APC to MPO-12/APC
- Fibre: multimode OM3/OM4 50/125um, 12 fibres
- Wavelength: 850nm
- Polarity: Type B (crossed)
- Jacket colour: aqua
- Cable type: passive
- Lifecycle phase: MP (mass production)

FAQs

Q: What transceivers does this cable connect?
A: It is designed for multimode SR4 transceivers with MPO-12/APC interfaces, including twin-port OSFP, single-port OSFP and QSFP112 modules used in NDR InfiniBand and 400GbE links.

Q: What polarity does this cable use?
A: It uses Type B (crossed) polarity with MPO-12/APC connectors at both ends, which matches the parallel optic SR4 links this cable is designed for.

Q: Is this cable single-mode or multimode?
A: It is multimode, using OM3/OM4 50/125um fibre at 850nm. It should be paired with multimode SR4 optics, not single-mode modules.

Q: How does this SKU differ from the other lengths in the range?
A: The connectors, fibre type and polarity are the same across the range. This SKU is the 7m length, while sibling SKUs are available at 5m (980-9I73V-000005) and 10m (980-9I57X-00N010).

Q: Does this cable require power?
A: No. It is a passive fibre trunk cable with no power requirement.
