NVIDIA

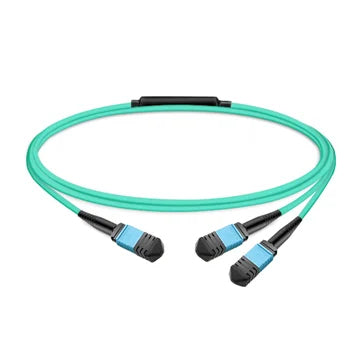

NVIDIA 980-9I572-00N005 | LinkX NDR MPO-12 to 2x MPO-12 Fibre Cable, OM4, 5m

SKU:980-9I572-00N005

$221.38 inc. GST
$201.25 ex. GST
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA LinkX passive multimode fibre splitter trunk cable has one MPO-12 APC connector on one end and two MPO-12 APC connectors on the other, in a 5m length. It uses OM4 50/125 µm multimode fibre for 850nm SR4 links and is validated for NDR InfiniBand and 400/800GbE connections using NVIDIA twin-port OSFP SR4 transceivers. It suits AI and HPC cluster deployments that need to break out a twin-port OSFP transceiver into two separate MPO-12 links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Validated and supported NDR cable in NVIDIA Quantum-2, ConnectX-7 and BlueField-3 compatibility lists
- Passive splitter design breaks out a twin-port OSFP transceiver into two MPO-12 links
- APC (angled polish) endface reduces back-reflection
- OM4 multimode fibre for 850nm SR4 optical links

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Part number: 980-9I572-00N005 (legacy OPN MFP7E20-N005)
- Connectors: 1 x MPO-12 APC to 2 x MPO-12 APC
- Fibre type: multimode OM4 50/125 µm (MMF)
- Length: 5m
- Wavelength: 850nm (SR4)
- Data rate: NDR, up to 800Gb/s, split as 2 x 400Gb/s
- Cable type: passive splitter trunk

FAQs

Q: What does this cable connect?
A: It connects a twin-port OSFP SR4 850nm transceiver, via its single MPO-12 APC end, to two separate MPO-12 APC links on the other end, allowing an 800Gb/s port to be split into two 400Gb/s connections.

Q: Is this cable active or passive?
A: It is a passive fibre cable with no electronics. The optical transceivers at each end provide the signalling.

Q: What fibre type and length is this cable?
A: It uses OM4 50/125 µm multimode fibre and is 5m long, suited to short-reach connections within a rack or between adjacent racks.

Q: Which NVIDIA platforms is it validated for?
A: It is listed as a validated and supported NDR cable for NVIDIA Quantum-2 InfiniBand switches, ConnectX-7 adapters and BlueField-3 DPUs when used with NVIDIA twin-port OSFP SR4 transceivers.

Q: Why does it use APC connectors?
A: The angled physical contact (APC) endface reduces back-reflection, which helps maintain signal integrity on high-speed 850nm SR4 links.
