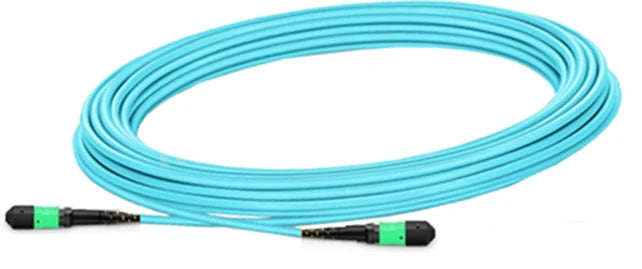

• NVIDIA 980-9I570-00N030 200G MPO-12 OM4 MMF trunk cable 30m light blue
1 1

NVIDIA

NVIDIA 980-9I570-00N030 | Up to 200G | MPO-12 trunk | OM4 MMF 50/125 | SR4 850nm | 30m | 2x MPO | Blue

980-9I570-00N030

Stock Status: Enquire

$228.97 AUD
$228.97 AUD
$228.97 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High‑density MPO‑12 multimode trunk using OM4 50/125 µm bend‑insensitive fiber for SR4 parallel‑optic links up to 100/200G. Low‑loss MPO terminations protect 850 nm budgets across structured cabling and direct module connections. The 30 m blue, Type‑B assembly delivers plug‑and‑play performance for dense switch‑to‑switch or panel‑based SR4 deployments.

Features

OM4 50/125 µm bend‑insensitive fiber for high‑bandwidth SR4 links
- Low‑loss MPO‑12 terminations for tight 850 nm link budgets
- Type‑B polarity for correct lane mapping in SR4 parallel optics
- Compatible with 40/100/200G SR4 ecosystems and MPO panels
- Factory‑tested for insertion loss and polarity integrity
- Blue jacket for quick multimode identification in dense racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Length: 30 m
- Connector ends: MPO-12 to MPO-12
- Fiber type: OM4 multimode, 50/125 µm, bend‑insensitive
- Polarity: Type‑B (key up to key up)
- Data rates supported: up to 200G SR4; backward‑compatible with 40/100G SR4
- Operating wavelength: 850 nm
- Fiber count: 12‑fiber (8 fibers used for xR4 links)
- Typical insertion loss: ≤0.35 dB per mated pair (low‑loss), ≤0.75 dB max
- Jacket color: Blue
- Standards: IEC 61754-7 (MPO), ANSI/TIA‑568.3‑D, ISO/IEC 11801

FAQs

Q: Is this trunk suitable for 100G SR4 modules?
A: Yes. It is an OM4 MPO‑12 trunk designed for SR4 parallel optics and supports 40/100/200G SR4 links within OM4 distance limits.

Q: What polarity does it use?
A: Type‑B, the common choice for SR4 parallel‑optic links and MPO cassettes wired for straight‑through lane mapping.

Q: Can I connect this directly between two SR4 transceivers?
A: Yes, provided the pinning matches the transceiver ports. Many SR4 modules require male‑pinned cables to mate with their female MPO ports.
