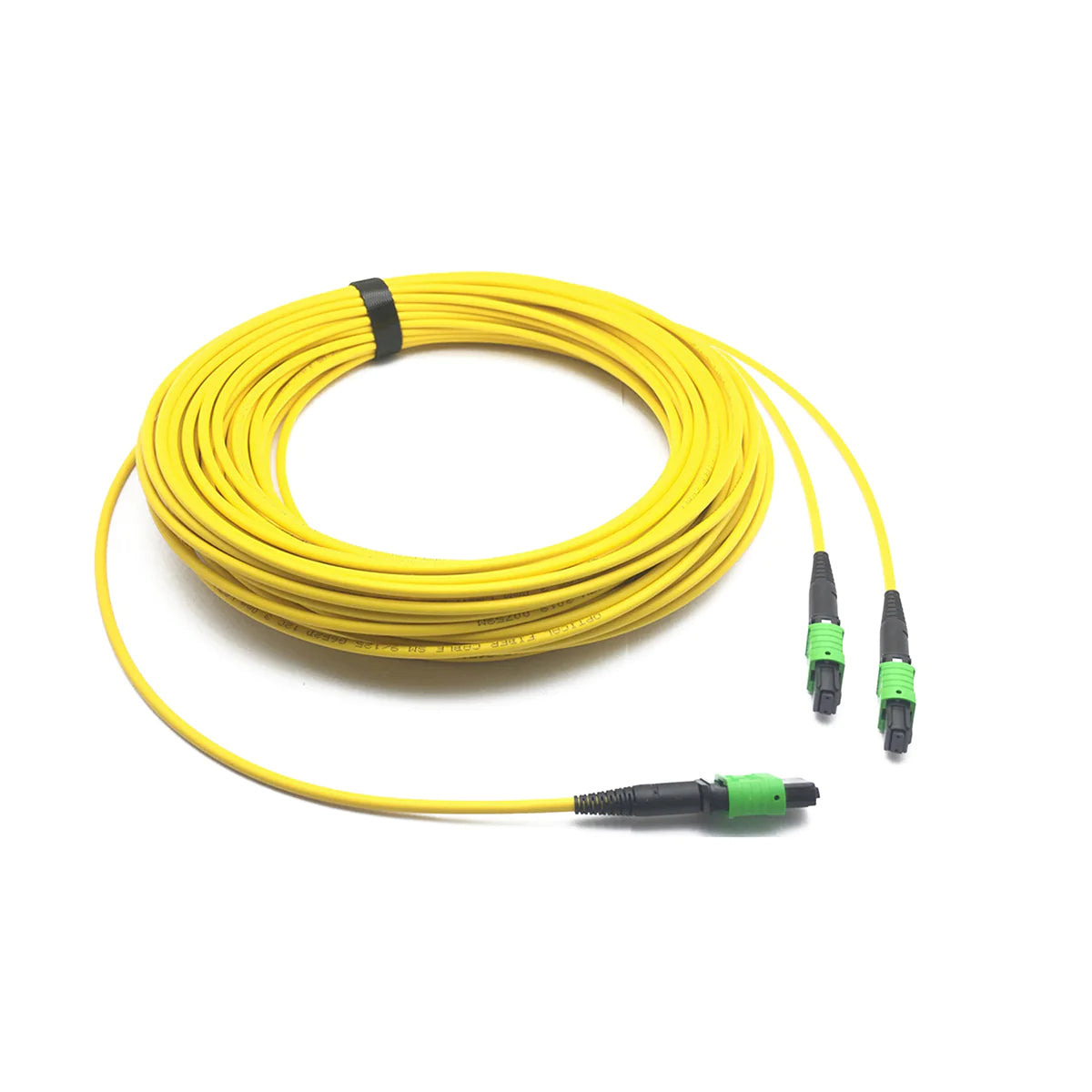

• NVIDIA 980-9I56Q-00N030 400G MPO-12 OS2 SMF yellow fiber optic cable 30m
1 1

NVIDIA

NVIDIA 980-9I56Q-00N030 | Up to 400G | MPO-12 trunk | OS2 SMF 9/125 | DR4/PSM4 1310nm | 30m | 2x MPO | Yellow

980-9I56Q-00N030

Stock Status: Enquire

$465.52 AUD
$465.52 AUD
$465.52 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density parallel‑optics MPO-12 trunk built on OS2 9/125 µm bend‑insensitive single‑mode fiber for DR4/PSM4 links up to 400G. Low‑loss, factory‑terminated MPO connectors preserve link budgets at 1310 nm across leaf/spine fabrics, panels, or direct transceiver runs. 30 m length with Type‑B polarity and yellow jacket enables plug‑and‑play integration for modern data center and InfiniBand/Ethernet parallel‑optic deployments.

Features

OS2 9/125 µm bend‑insensitive single‑mode fiber for maximum reach and signal integrity
- Low‑loss MPO‑12 factory terminations to protect tight DR4/PSM4 link budgets
- Type‑B polarity for straightforward SR4/DR4 parallel‑optic cabling
- Ready for 100/200/400G parallel‑optic InfiniBand and Ethernet fabrics
- 12‑fiber construction supporting 8‑lane xR4 links with spare fibers
- Factory tested for insertion loss and polarity verification
- Yellow jacket for quick single‑mode identification in high‑density racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Length: 30 m
- Connector ends: MPO-12 to MPO-12
- Fiber type: OS2 single‑mode, 9/125 µm, bend‑insensitive
- Polarity: Type‑B (key up to key up)
- Data rates supported: up to 400G parallel optics (e.g., DR4/PSM4), backward‑compatible with 100/200G
- Operating wavelength window: 1310 nm
- Fiber count: 12‑fiber (8 fibers used for xR4 links)
- Typical insertion loss: ≤0.35 dB per mated pair (low‑loss), ≤0.75 dB max
- Jacket color: Yellow
- Standards: IEC 61754-7 (MPO), ANSI/TIA‑568.3‑D, ISO/IEC 11801

FAQs

Q: Is this cable suitable for 400G DR4 links between transceivers?
A: Yes. It is an OS2 single‑mode MPO‑12 trunk designed for parallel‑optic DR4/PSM4 links up to 400G.

Q: What polarity does it use?
A: Type‑B (key up to key up), which is the standard for SR4/DR4 style parallel optics and MPO cassettes wired for straight‑through lane mapping.

Q: Does it have pins (male) or no pins (female)?
A: Parallel‑optic transceivers commonly present MPO‑12 female ports and require male‑pinned cables. Verify the pinning requirement of your transceivers or cassettes before deployment.

Q: Can I use this with LC transceivers (e.g., FR4)?
A: No. This is an MPO‑to‑MPO trunk for parallel optics. LC‑based modules require LC duplex patching or MPO‑to‑LC breakout cassettes.
