NVIDIA

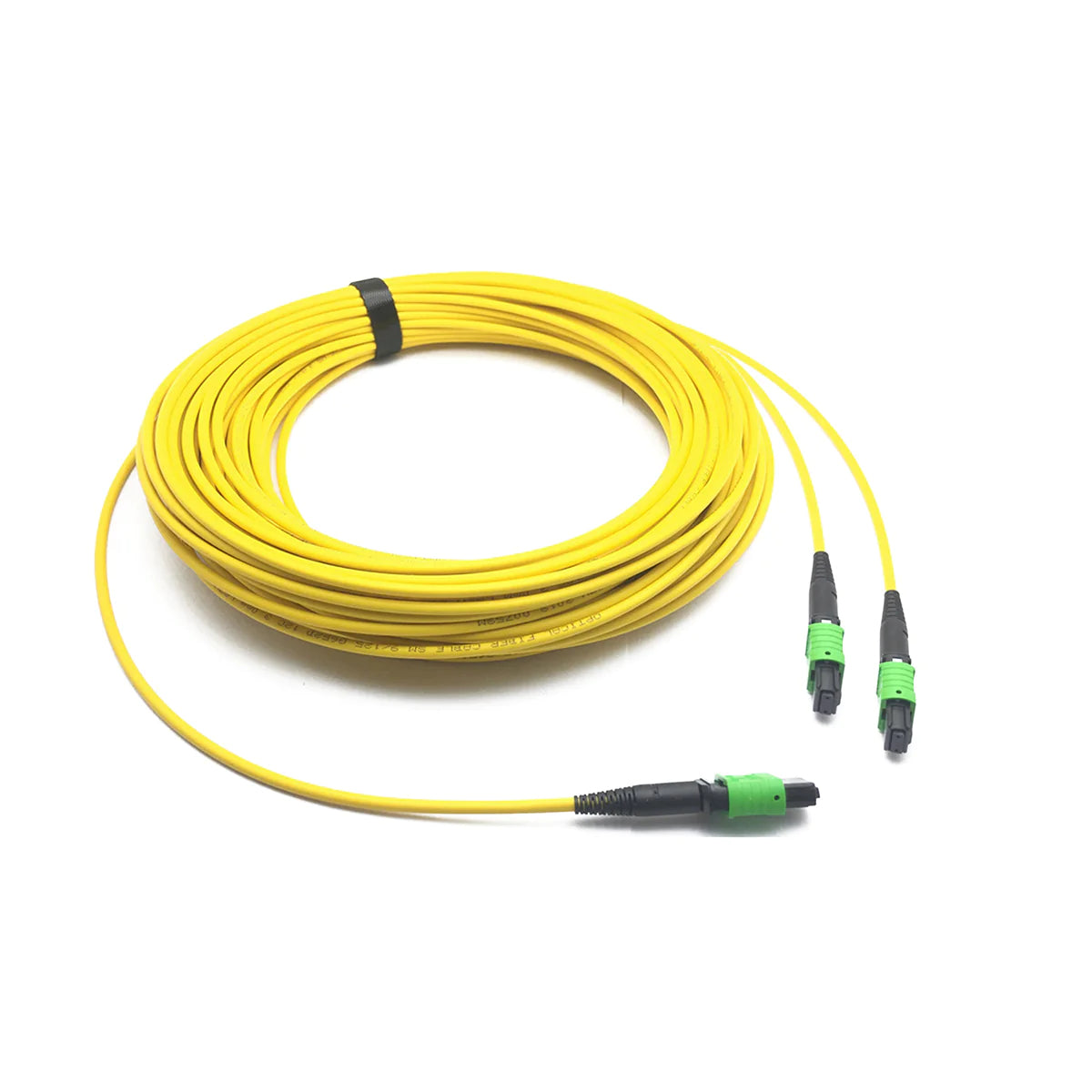

NVIDIA 980-9I56P-00N020 | MFP7E40 1:2 Splitter Cable, SMF, MPO12 APC, 20m

SKU:980-9I56P-00N020

$252.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA passive single-mode fibre splitter cable connects one 4-channel MPO-12/APC port to two 2-channel MPO-12/APC ports over a 20 m run. It is validated for NDR and 400GbE InfiniBand and Ethernet deployments, making it suited to breaking out DR4-style optical ports into two 2-channel links in AI and HPC clusters. The angled-polish connectors and flexible round jacket support clean signal quality and easy routing in dense racks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Flexible round outer jacket for easier installation and routing
- Push-pull latching for quick release
- NVIDIA Green connector shell denoting MPO/APC
- Angled-polish (APC) connectors deflect back reflections away from the transceiver to protect signal quality
- Splits an 800G/400G DR4-style port into two 2-channel links, for example with 400G NDR or PSM4/DR4 style optics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Part number: 980-9I56P-00N020 (legacy OPN MFP7E40-N020)
- Fibre type: single-mode (SMF), 9/125 µm
- Length: 20 m (65.62 ft)
- Connectors: 1 x MPO-12/APC to 2 x MPO-12/APC
- Configuration: 4-channel to two 2-channel splitter
- Fibres: 8 active, 4 inactive used as strength members
- Connector gender: female-to-female
- Cable type: passive
- Validated for NDR / 400GbE InfiniBand and Ethernet use
- Lifecycle phase: MP (mass production)

FAQs

Q: What does this cable connect?
A: It connects one 4-channel MPO-12/APC port to two 2-channel MPO-12/APC ports using a passive single-mode 1:2 splitter configuration.

Q: Is this cable active or passive?
A: It is a passive fibre cable with no electronics, so it needs no power.

Q: What connector polish does it use?
A: All connectors are MPO-12 with APC (angled physical contact) polish, which deflects back reflections away from the transceiver. They should be mated only with APC-compatible ports and optics.

Q: Which networks is it validated for?
A: It is validated for NDR and 400GbE InfiniBand and Ethernet use, including 400G NDR and PSM4/DR4 style optics.

Q: How many fibres in the cable are active?
A: Eight fibres are active and four are inactive, with the inactive fibres used as strength members.
