NVIDIA

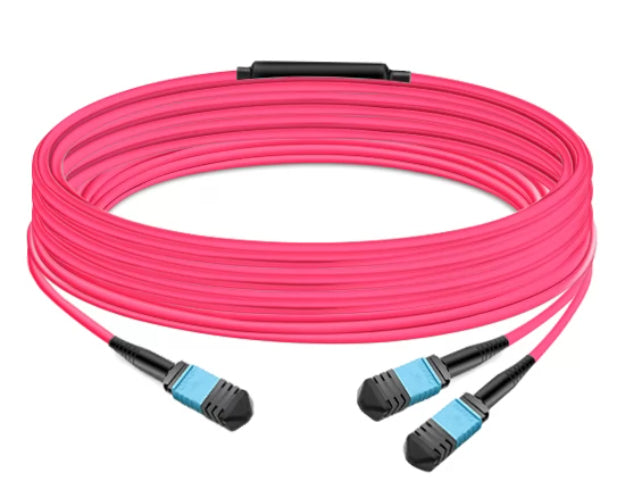

NVIDIA 980-9I55Z-00N050 | LinkX MPO-12 APC to 2x MPO-12 APC Splitter Cable, 50m

SKU:980-9I55Z-00N050

$310.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This passive multimode OM4 fibre splitter cable breaks out one MPO-12 APC connector to two MPO-12 APC connectors over a 50m length. It is designed to connect OSFP switch ports to ConnectX-7 adapters and BlueField-3 DPUs in compute and storage servers for InfiniBand and Ethernet NDR links. Type B polarity, a 3.0mm LSZH jacket and APC polish make it suited to high-density data centre fibre deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive fibre breakout cable for InfiniBand and Ethernet NDR links
- Designed for OSFP switch to ConnectX-7 and BlueField-3 DPU connections
- Validated cable for NVIDIA Quantum-2 and BlueField firmware
- APC polish connectors for low back reflection
- LSZH jacket suited to data centre environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Part number: 980-9I55Z-00N050 (legacy OPN MFP7E20-N050)
- Fibre type: multimode (MMF), OM4 50/125um
- Connectors: MPO-12 APC to 2x MPO-12 APC breakout
- Length: 50m
- Polarity: Type B
- Jacket: LSZH
- Cable diameter: 3.0mm
- Cable type: passive, no active electronics
- Supports NDR link speeds up to 50m over multimode
- Lifecycle phase: mass production

FAQs

Q: What does this cable connect?
A: It links an OSFP switch port to ConnectX-7 adapters or BlueField-3 DPUs in compute and storage servers, splitting one MPO-12 APC connector into two MPO-12 APC connectors.

Q: Is this cable active or passive?
A: It is a passive fibre cable with no active electronics or power requirement.

Q: What fibre type and length does it use?
A: It uses OM4 50/125um multimode fibre and is 50m long.

Q: Can APC and UPC connectors be mixed?
A: No. This cable uses APC polish and should only be connected to APC-compatible ports and cables.

Q: What polarity does the cable use?
A: It uses Type B polarity with a 3.0mm LSZH jacket.
