NVIDIA

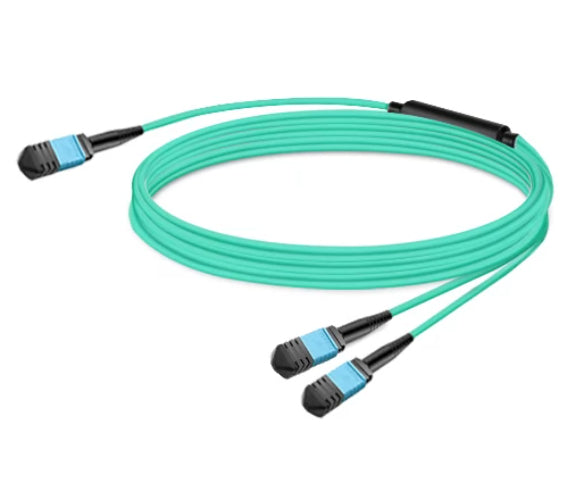

NVIDIA 980-9I557-00N030 | LinkX MPO-12 APC to 2x MPO-12 APC Splitter Cable, 30m MMF

SKU:980-9I557-00N030

$232.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This NVIDIA LinkX passive multimode splitter fibre cable has one 4-channel MPO-12/APC end and two 2-channel MPO-12/APC ends, with a 30 m length on 50/125 µm multimode fibre. It lets a single twin-port 800G OSFP transceiver connect to two single-port 400G OSFP or QSFP112 transceivers, each running at 200G. It suits InfiniBand, Ethernet and NVLink deployments that need compact high-density breakout links within a data centre.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports InfiniBand, Ethernet and NVLink
- For use with 400G OSFP or QSFP112 transceivers
- Splits a 4-channel (800G twin-port) end into two 2-channel (200G) ends
- APC 8-degree polish deflects back reflections
- Push-pull latching for quick release
- Telcordia GR-1435 compliant
- Connectors compliant with IEC 61754-7 and ANSI/TIA/EIA-604-5
- Flexible round LSZH/OFNR jacket

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Connectors: MPO-12/APC to 2x MPO-12/APC, female, low-loss
- Fibre type: 50/125 µm multimode (OM3 for lengths up to 30 m)
- Length: 30 m
- Number of fibres: 8 active
- Topology: crossed, Type B polarity
- Jacket: Aqua, LSZH-OFNR
- Cable diameter: 3 ± 0.2 mm
- Minimum bend radius: 30 mm
- Insertion loss: ≤0.35 + 0.0004 x L dB
- Operating temperature: 0 to 70°C
- Storage temperature: -40 to 85°C
- Humidity: 10 to 85% RH

FAQs

Q: What does this splitter cable connect?
A: The 4-channel MPO-12/APC end plugs into a twin-port 800G OSFP transceiver. The two 2-channel MPO-12/APC ends plug into single-port 400G OSFP or QSFP112 transceivers, each running at 200G.

Q: What fibre type and length does it use?
A: It uses 50/125 µm multimode fibre (OM3 for lengths up to 30 m) and this SKU is 30 m long, with 8 active fibres.

Q: Which protocols are supported?
A: It supports InfiniBand, Ethernet and NVLink.

Q: Why does the cable use APC connectors?
A: The APC 8-degree polish deflects back reflections, helping maintain signal quality on high-speed links.

Q: What is the minimum bend radius?
A: The minimum bend radius is 30 mm, and the cable has a 3 mm diameter flexible round jacket.
