Cisco

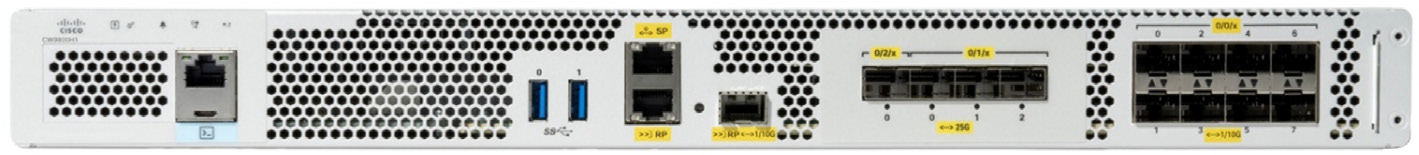

Cisco CW9800L | Catalyst 9800-L Wireless Controller, 500 APs, 10Gbps

SKU:CW9800L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst CW9800L is a compact 1RU wireless LAN controller from the Catalyst 9800 series, running Cisco IOS XE. It is built for small to medium wireless networks, growing businesses, educational campuses and remote branches, and offers twice the capacity of the base C9800-L. It can also operate in Meraki Campus Gateway mode for cloud-managed campus deployments that need seamless Layer 3 roaming at scale.

The controller manages up to 500 access points and 10,000 clients at up to 10 Gbps of throughput. Two fixed 1G/10G SFP+ uplinks carry traffic, and a 1GE copper service port handles management. It is powered by an 8-core 2 GHz Intel Icelake-D processor and supports up to 4096 WLANs and 4096 VLANs. It supports centralised, FlexConnect distributed branch and SD-Access wireless fabric deployment modes.

It works with Cisco Catalyst Center and the Meraki dashboard. A 110W AC adapter powers the unit, and an optional CW9800L-RPS= adds dual-input DC power redundancy. SFP and SFP+ modules for the uplinks are chosen to suit your network.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Twice the capacity and increased performance over the base C9800-L
- Runs Cisco IOS XE and integrates with Cisco Catalyst Center for analytics and automation
- Built-in security including WPA3, Encrypted Traffic Analytics and Software-Defined Access
- Supports centralised, FlexConnect distributed branch and SD-Access wireless fabric modes
- Cloud monitoring through the Meraki dashboard
- Campus Gateway mode with centralised client database, RADIUS proxy and mDNS gateway for seamless Layer 3 roaming
- Up to 10 dB quieter operation than the previous model
- Compact 1RU form factor with optional redundant power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Maximum access points: 500
- Maximum clients: 10,000
- Maximum throughput: up to 10 Gbps
- Fixed uplinks: 2x 1G/10G SFP+
- Service/management port: 1x 1GE copper
- Chassis height: 1 RU
- Processor: Intel Icelake-D 8-core, 2 GHz
- Maximum WLANs: 4096
- Maximum VLANs: 4096
- Maximum site tags: 250
- Maximum Flex APs per site: 400
- Maximum policy tags: 4096
- Maximum RF tags: 250
- Maximum RF profiles: 500
- Memory: 32GB on-board pSLC eMMC bulk flash
- Power adapter: 110W single 12V output (C9800-AC-110W)
- AC input voltage: 100 to 240 VAC, 50/60 Hz
- Maximum power consumption: 90 W with 4.5 W USB load
- Operating temperature: 0 to 40 C standard, 0 to 50 C short-term
- Storage temperature: -25 to 70 C
- Operating humidity: 5% to 90% RH non-condensing
- Operational altitude: 0 to 10,000 ft (3048 m) at 30 C

FAQs

Q: How many access points and clients can it manage?
A: It manages up to 500 access points and 10,000 clients, with up to 10 Gbps of throughput.

Q: What licensing does it need?
A: In controller mode, Cisco Catalyst wireless licensing applies on a per-access-point basis. In Campus Gateway mode it is managed through the Meraki dashboard and uses Meraki licensing.

Q: How is the controller powered, and is power redundancy available?
A: It uses a 110W single 12V output AC adapter (C9800-AC-110W) accepting 100 to 240 VAC, 50/60 Hz. Maximum consumption is 90 W. The optional CW9800L-RPS= adds dual-input DC power redundancy.

Q: Do the SFP+ uplinks need optics?
A: Yes. The two fixed 1G/10G uplinks accept SFP and SFP+ modules, which are chosen to suit your cabling and distance requirements.

Q: Can it run in Meraki Campus Gateway mode?
A: Yes. A CW9800L can operate as a Meraki Campus Gateway, which needs IOS XE 17.18.2 or later and is managed from the Meraki dashboard.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
