Cisco

Cisco C9800-AC-110W | Catalyst 9800-L 110W 12V DC External AC Power Adapter

SKU:C9800-AC-110W

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

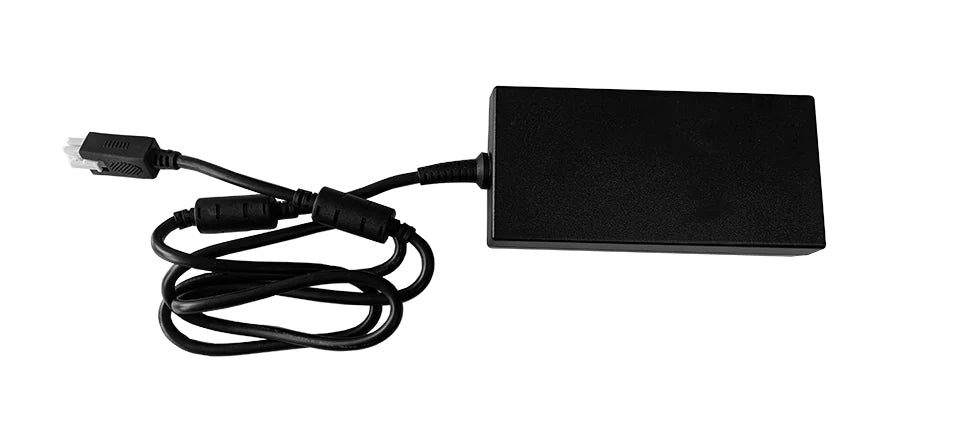

The C9800-AC-110W is an external AC/DC power adapter for the Cisco Catalyst 9800-L Wireless Controller. It converts 100 to 240 VAC mains input into a single 12V DC output and is the default power source for the 9800-L family. It suits branch, campus and small-to-midsize wireless deployments where a controller needs powering or its adapter replaced.

The adapter delivers 110W from a single 12V DC output and accepts 100 to 240 VAC at 50/60 Hz, so it works on mains supplies worldwide. The Catalyst 9800-L draws a maximum of about 86.9 W in the 9800-L-C and 84.5 W in the 9800-L-F, which sits comfortably within the adapter's 110W rating. No licence is required for the adapter itself.

It is intended for the Catalyst 9800-L Wireless Controller, models C9800-L-C-K9 and C9800-L-F-K9, and is not documented for use with other Catalyst 9800 models.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Default power source for the Catalyst 9800-L Wireless Controller
- Universal AC input suits global deployments
- Single 12V DC output feeding the 1RU half-width 9800-L chassis
- 110W rating gives headroom over the 9800-L maximum draw
- Suitable as a replacement adapter for existing 9800-L controllers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: External AC/DC power adapter
- Output power: 110W
- Output: Single output, 12V DC
- Input voltage: 100 to 240 VAC
- Input frequency: 50/60 Hz
- Rated input: 120/240V AC
- Host controller AC input range: 90 to 264 VAC
- Host controller AC input frequency range: 47 to 63 Hz
- Host max measured power, 9800-L-C: 86.9 W
- Host max measured power, 9800-L-F: 84.5 W
- Host max heat dissipation, 9800-L-C: 296.4 Btu/hr
- Host max heat dissipation, 9800-L-F: 288.2 Btu/hr
- Host operating temperature: 0 to 40 C, derated 1.0 C per 305 m above sea level
- Host operating humidity: 5% to 95% noncondensing
- Host operating altitude: 0 to 3000 m

FAQs

Q: Which controllers does this power adapter work with?
A: It is designed for the Catalyst 9800-L Wireless Controller, models C9800-L-C-K9 and C9800-L-F-K9. It is not documented as a power source for other Catalyst 9800 models.

Q: Does it need a licence or subscription?
A: No. The power adapter itself requires no licence.

Q: What input voltage does it accept?
A: It accepts 100 to 240 VAC at 50/60 Hz, so it can be used on mains supplies in most regions.

Q: Is 110W enough for the Catalyst 9800-L?
A: Yes. The 9800-L draws a maximum of about 86.9 W (9800-L-C) or 84.5 W (9800-L-F), which is within the adapter's 110W rating.

Q: What is the output of this adapter?
A: A single 12V DC output rated at 110W.
