Cisco

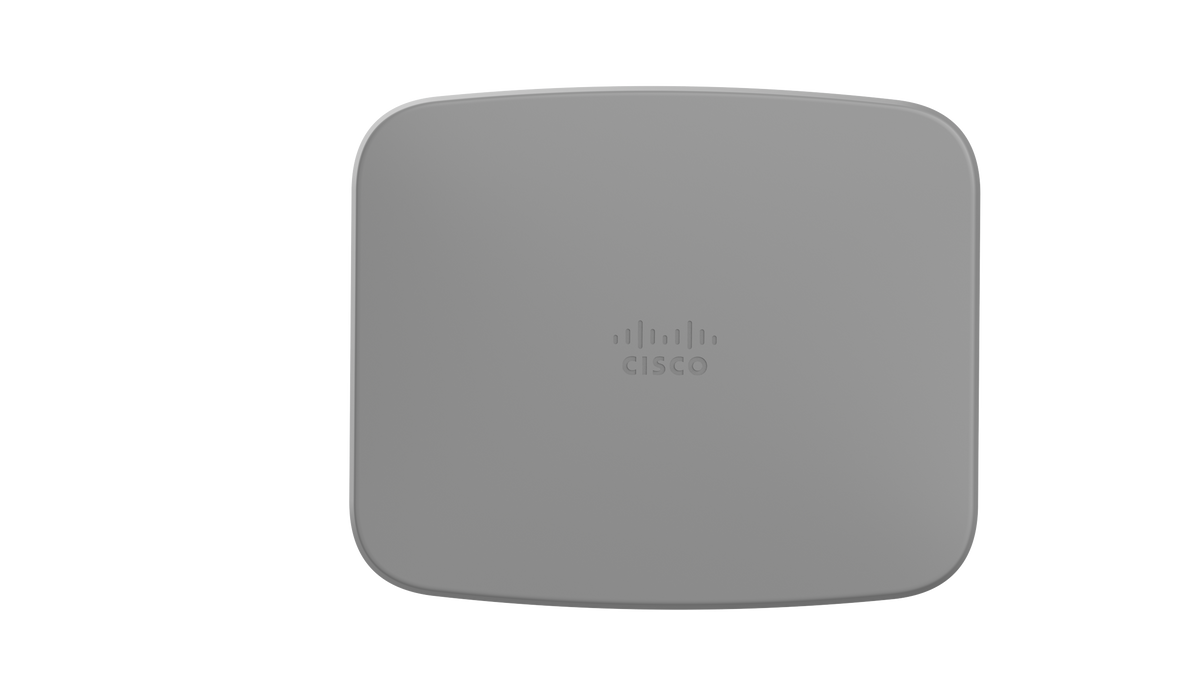

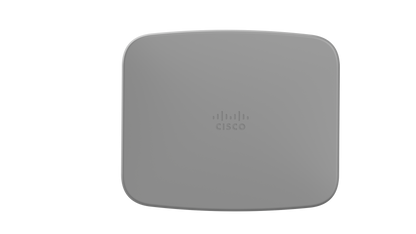

Cisco CW-ANT-T-D4-N | Wi-Fi 7 Tri-Band Directional Antenna, 8 dBi, 8x N-Type

CW-ANT-T-D4-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CW-ANT-T-D4-N is an eight-port, tri-band directional antenna for Wi-Fi 7 outdoor access points. It suits high-density outdoor deployments that need focused directional coverage, such as stadiums and public venues, campuses, transportation facilities, industrial sites, warehouses and municipal or smart-city networks.

It covers the 2.4 GHz, 5 GHz and 6 GHz bands with a peak gain of 8 dBi (8/8/8 dBi across the three bands) through eight N-Type female connectors in an 8-port MIMO design. Beamwidth is 85° x 45° on 2.4 GHz and 90° x 40° on both 5 GHz and 6 GHz. The antenna is IP66/IP67 rated and operates from -40°C to 65°C. A Self-Identifying Antenna (SIA) EEPROM and an integrated accelerometer report the antenna type and its orientation to the connected access point.

The antenna is a passive accessory, so it needs no licence and no power of its own. It is listed as a supported external antenna for the Cisco Wireless CW9177E outdoor Wi-Fi 7 access point, with Cisco's dual 4x N-N type antenna cable (M/M, 4 ft) as the matching cable accessory.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tri-band directional antenna supporting 2.4, 5 and 6 GHz for Wi-Fi 7 deployments
- 8-port MIMO design with cross-polarised elements and consistent gain across bands
- Self-Identifying Antenna (SIA) EEPROM identifies the antenna to the connected access point
- Integrated accelerometer reports antenna orientation
- Ruggedised IP67 radome with pressure-release vent for outdoor use
- Integrated articulating bracket (CW-MNT-ART2-00) adjustable ±60° in azimuth and elevation
- Compact form factor for wall or pole mounting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Directional
- Frequency bands: 2.4 GHz, 5 GHz and 6 GHz
- Operating frequency range: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
- Peak gain: 8 dBi (8/8/8 dBi on 2.4/5/6 GHz)
- Connectors: 8 x N-Type female
- Azimuth 3-dB beamwidth: 85° (2.4 GHz), 90° (5 GHz), 90° (6 GHz)
- Elevation 3-dB beamwidth: 45° (2.4 GHz), 40° (5 GHz), 40° (6 GHz)
- Polarisation: Linear
- Nominal input impedance: 50 Ohms
- VSWR: <2.0
- Isolation (2.4/5 to 5H/6 GHz): >35 dB
- Isolation (same band pairs): >20 dB
- Front-to-back ratio: >20 dB
- Antenna elements: four dual-band (2.4/5 GHz) and four (5H/6 GHz) cross-polarised
- SIA functionality: Available, with integrated accelerometer
- Environment rating: IP66, IP67
- Operating temperature: -40°C to 65°C (-20°C to 50°C including solar load)

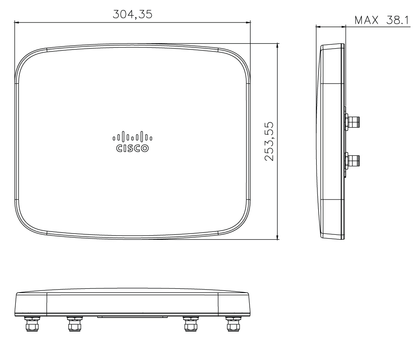

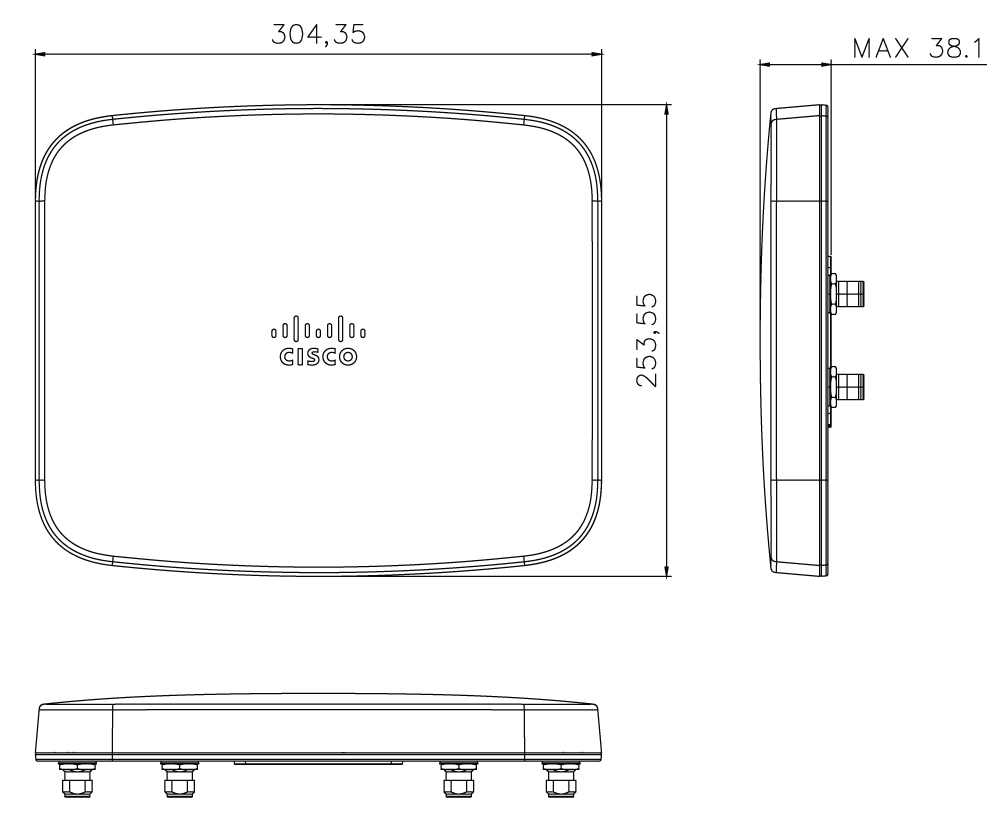

- Dimensions (L x W x D): 304 x 253 x 38 mm
- Weight (without mount): 1268 g

FAQs

Q: Which access point does this antenna work with?
A: It is listed as a supported external antenna for the Cisco Wireless CW9177E outdoor Wi-Fi 7 access point. The CW9177E supports the antenna's accelerometer when paired with it.

Q: Does the antenna need a licence or power?
A: No. It is a passive accessory with no licence requirement. The accelerometer and SIA EEPROM are powered through the connected access point, which needs its own Meraki or Catalyst licence.

Q: What cable connects the antenna to the access point?
A: Cisco's dual 4x N-N type antenna cable (M/M, 4 ft) is the matching cable accessory.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: How is this antenna different from other CW-ANT models?
A: This model is the tri-band directional antenna with 8 dBi gain and eight N-Type connectors. Other models in the CW-ANT range differ in gain, coverage pattern and connector count.
