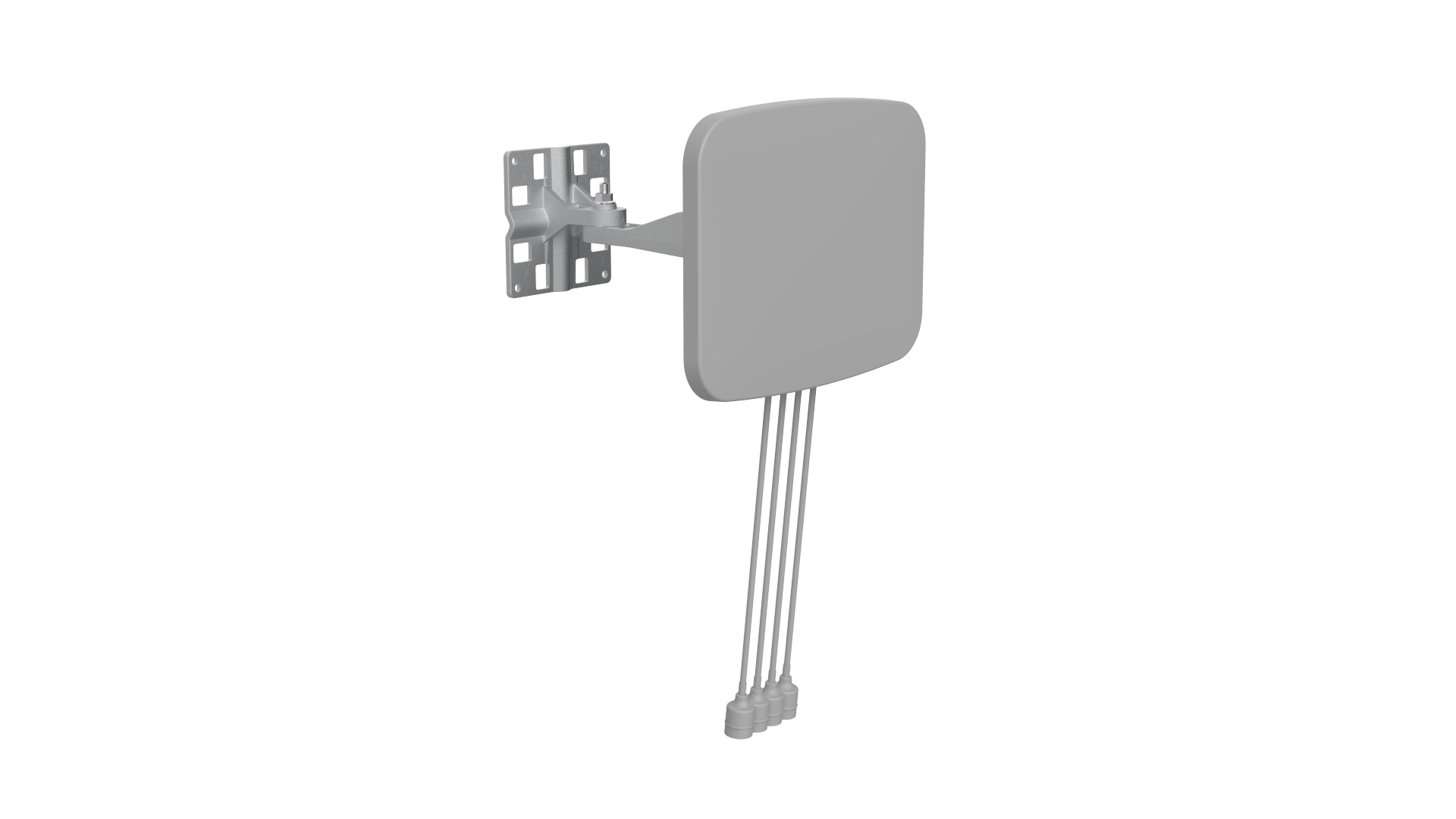

• Meraki CW-ANT-D1-NS-00 directional tri-band patch antenna with brushed metal finish
1 1

Cisco

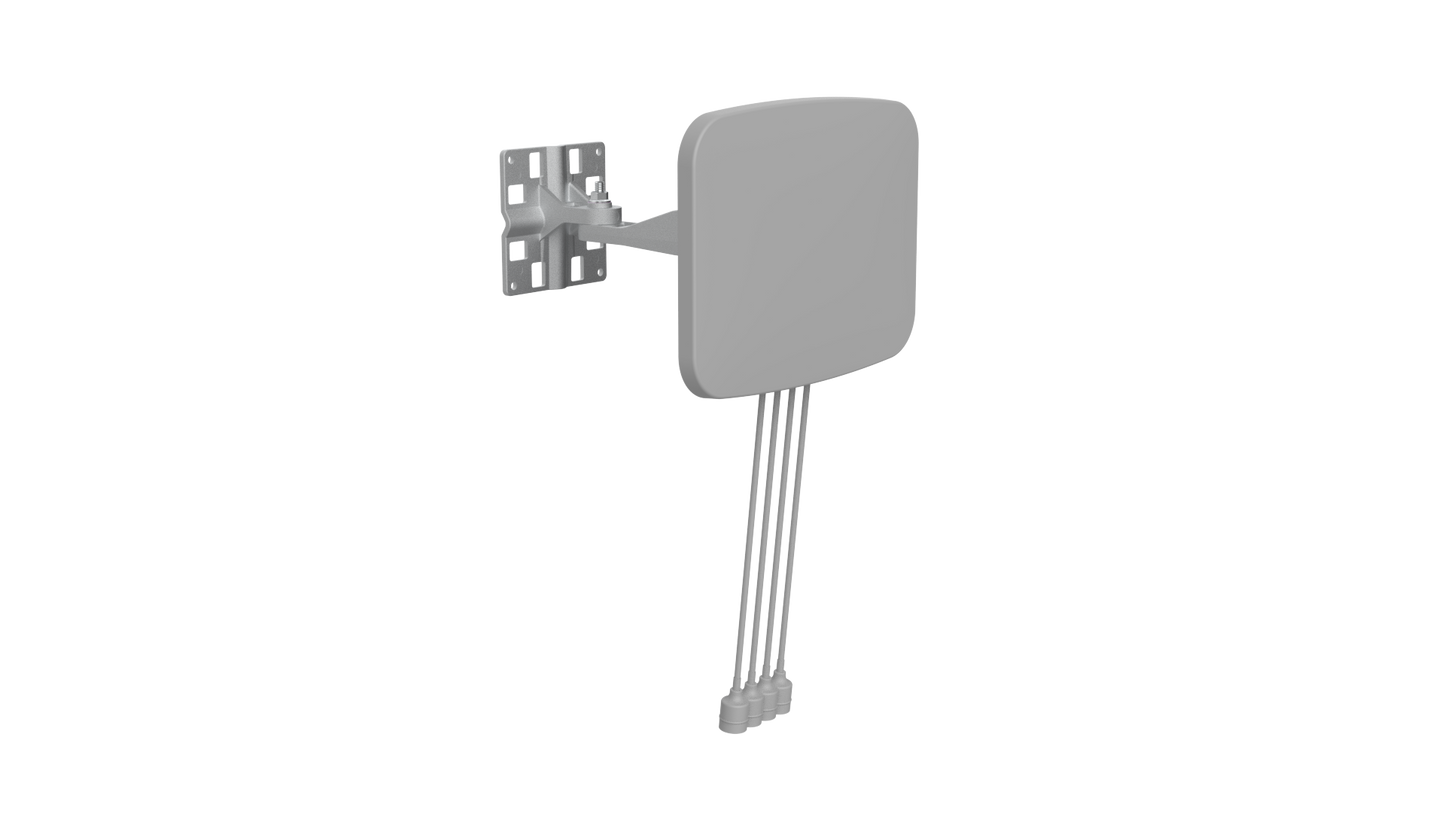

Cisco CW-ANT-D1-NS-00 | Directional patch antenna: tri‑band 2.4/5/6 GHz, 8/9/9 dBi, N‑Type, focused coverage

CW-ANT-D1-NS-00

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Tri‑band directional patch antenna delivering focused coverage and improved SNR for enterprise Wi‑Fi. Ideal for corridors, warehouses, and targeted cells; supports 2.4, 5, and 6 GHz bands with 8/9/9 dBi nominal gain. N‑Type connector interface for integration with external‑antenna APs in Catalyst and Cisco ecosystems.

Features

- Focused beam for higher SNR and less co‑channel interference
- Tri‑band coverage including Wi‑Fi 6E
- Enterprise‑grade N‑Type RF interface
- Flexible mounting for directional cells
- Works with Catalyst and Meraki external‑antenna APs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Directional patch
- Frequency bands: 2.4 GHz, 5 GHz, 6 GHz (Wi‑Fi tri‑band)
- Nominal gain: 8 dBi (2.4 GHz), 9 dBi (5 GHz), 9 dBi (6 GHz)
- Connector: N‑Type
- Application: Focused coverage for hallways, warehouses, and point‑to‑point cells
- Compatibility: External‑antenna APs including Cisco Catalyst and Meraki (use appropriate pigtails/adapters as needed)
- Mounting: Supports wall/ceiling orientation (check included bracket and site needs)

FAQs

Q: Is this antenna suitable for Wi‑Fi 6E?
A: Yes. Its tri‑band design includes the 6 GHz band used by Wi‑Fi 6E, in addition to 2.4 and 5 GHz.

Q: Can it be used outdoors?
A: Use indoors or in sheltered outdoor environments as specified by the antenna’s environmental ratings, and weatherproof all RF connections.

Q: What AP connector types are supported?
A: The antenna uses N‑Type. If your AP uses RP‑TNC, employ suitable RP‑TNC↔N adapters or pigtails.
