Juniper

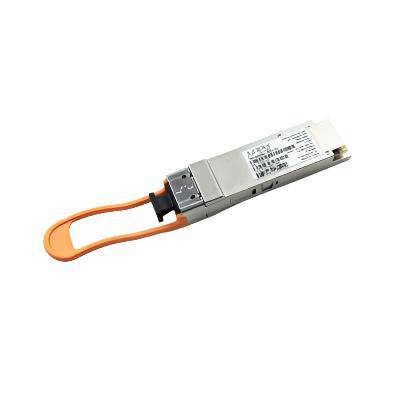

Juniper QSFPP-4X10GE-SR | 40G QSFP+ to 4x10G SR Breakout Transceiver, MPO-12

SKU:QSFPP-4X10GE-SR

$750.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Juniper 40G QSFP+ transceiver breaks one 40GbE port out into four 10GBASE-SR links over 850nm multimode fibre. It suits data centre and WAN deployments where a 40G port on an MX, ACX or PTX platform needs to feed four 10GbE short-reach connections.

It uses an MPO-12 connector and 50/125 micron multimode fibre, reaching 300 m on OM3 and 400 m on OM4. Each lane signals at 10.3125 GBd with a transmitter wavelength of 840 nm to 860 nm. Maximum power consumption is 3.5 W, drawn from the host QSFP+ port, and the operating temperature range is 0 to 70 C. Digital optical monitoring is supported per SFF-8636. No licence is required for the optic itself.

The breakout end connects through MPO-to-LC fanout cabling to four SFP+ SR optics. Juniper lists support on ACX5000, ACX7100-32C, ACX7100-48L, MX204, MX240, MX480, MX960, MX304, MX10016 and PTX10001-36MR, and its Hardware Compatibility Tool shows further platforms including QFX5120-48Y, QFX5200-32C, EX4650-48Y, EX4400, PTX1000, PTX10003 and ACX5096.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Breaks one 40G QSFP+ port out into four 10GBASE-SR links
- Digital optical monitoring and diagnostics per SFF-8636
- Supported on Juniper MX, ACX and PTX platforms
- Low 3.5 W maximum power draw per module
- Standard 0 to 70 C operating range
- Supports OM3 and OM4 multimode fibre over MPO-12
- On MX304 from Junos 23.R1, qualified as a 4x1G breakout with 1G-SX optics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Form factor: QSFP+
- Speed: 4 x 10 Gigabit Ethernet / 40 Gigabit Ethernet
- Breakout capable: Yes
- Standard: 10GBASE-SR
- Connector: MPO-12
- Fibre type: MMF 50/125 micron
- Wavelength: 850 nm (840 to 860 nm)
- Reach: 300 m on OM3 / 400 m on OM4
- Signalling rate per lane: 10.3125 GBd
- Transmitter output power per lane: -7.3 to -1.3 dBm
- Receiver input power per lane: -9.9 to -1.0 dBm
- Transmitter 3-dB spectral width: 0.45 nm maximum
- Maximum power consumption: 3.5 W
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Digital optical monitoring: Yes, SFF-8636

Also Known As

740-054053

FAQs

Q: Does this transceiver need a licence?
A: No. The optic itself does not require a licence or subscription.

Q: What cabling does it need for the 4x10G breakout?
A: It connects via MPO-12 to four SFP+ SR optics using MPO-to-LC fanout cabling over 50/125 micron multimode fibre.

Q: What distance does it reach?
A: Up to 300 m on OM3 fibre and 400 m on OM4 fibre.

Q: Which Juniper platforms support it?
A: Juniper lists support on ACX5000, ACX7100-32C, ACX7100-48L, MX204, MX240, MX480, MX960, MX304, MX10016 and PTX10001-36MR, with further platforms in Juniper's Hardware Compatibility Tool.

Q: How much power does it draw?
A: It draws up to 3.5 W maximum, powered by the host QSFP+ port.
