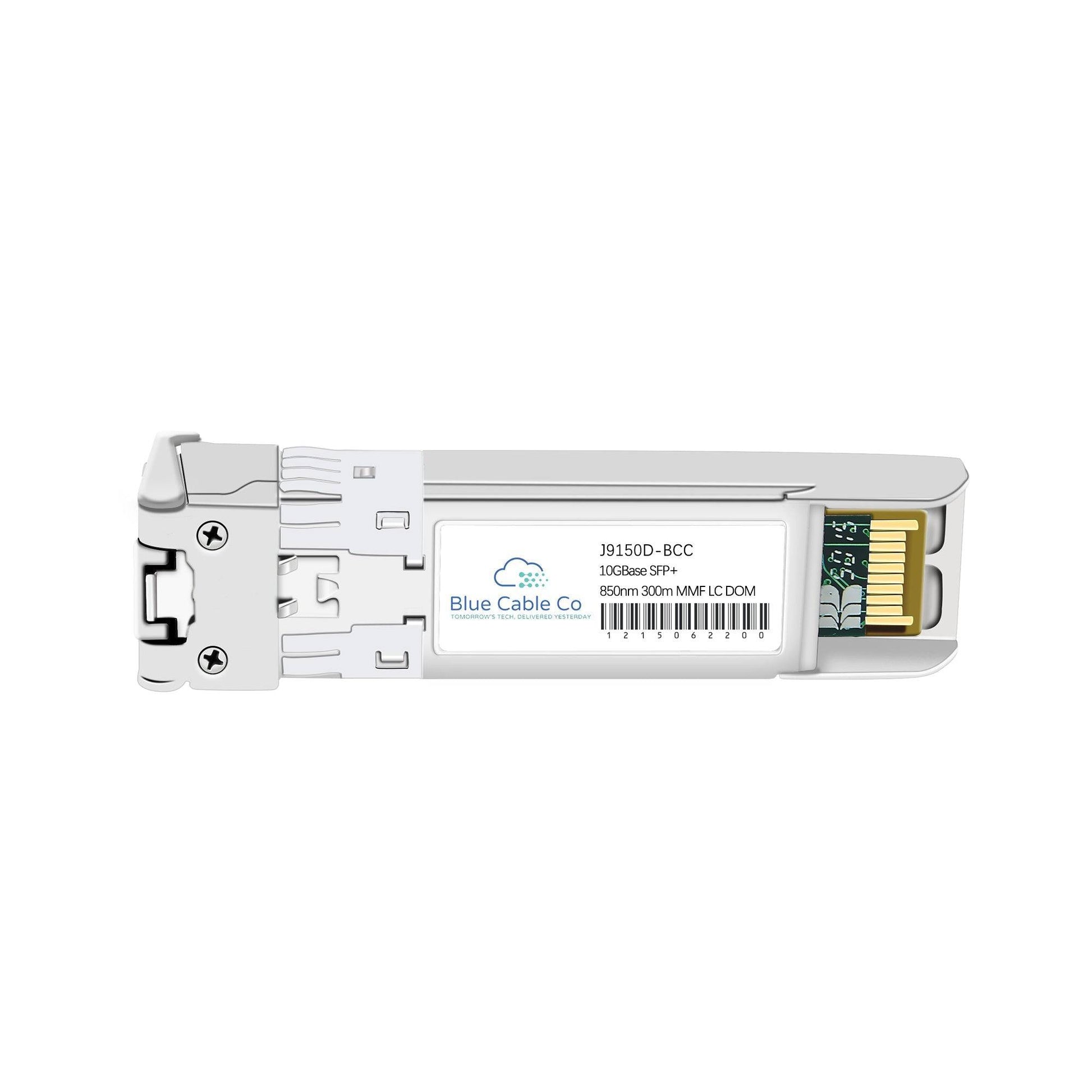

• Aruba Compatible J9150D-BCC 10GBASE-SR SFP+ Transceiver Module
1 1

Blue Cable Co

J9150D-BCC | Aruba Compatible 10GB Multi-Mode 300m (10GBASE-SR)

J9150D-BCC

17 in stock

$72.93 inc. GST
$66.30 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The J9150D-BCC is a drop-in compatible replacement for the Aruba J9150D. This 10GBASE-SR SFP+ transceiver provides plug-and-play compatibility with HPE Aruba networking equipment. - IEEE 802.3ae 10GBASE-SR compliance guarantees interoperability across standards-based 10 Gigabit Ethernet infrastructure - SFP+ form factor, 10.3 Gbps data rate, 850nm VCSEL transmitter, duplex LC connector, multimode fibre (OM3/OM4) - Up to 300m reach on OM3 fibre and 400m on OM4 fibre using 50/125 micron cable - Digital Diagnostic Monitoring (DDM) support via SFF-8472 interface for real-time optical power, temperature, voltage, and laser bias reporting - Hot-pluggable design supports field installation without service disruption - Compliant with SFF-8431 and SFF-8432 MSA specifications for electrical and mechanical host compatibility

Features

• IEEE 802.3ae 10GBASE-SR compliance ensures standards-based interoperability with any vendor platform supporting 10 Gigabit Ethernet short-reach links at 850nm over multimode fibre
• SFF-8431 and SFF-8432 MSA compliance defines the electrical interface, signaling rate (9.95 to 11.1 GBd), and mechanical form factor, ensuring host compatibility across SFP+ slots
• VCSEL transmitter and PIN photodiode receiver deliver 10.3 Gbps bi-directional throughput with a minimum optical link budget of 6.1 dB, suitable for intra-rack and short campus links
• Digital Diagnostic Monitoring (SFF-8472) exposes real-time transmit/receive optical power, laser bias current, module temperature, and supply voltage via I2C for proactive link health monitoring
• Operating data rate range of 1.25 to 10.31 Gbps supports both Gigabit Ethernet and 10 Gigabit Ethernet on the same physical module, enabling mixed-speed deployments
• Hot-pluggable design with commercial operating temperature range (0 to 70 degrees C) and 1W maximum power consumption supports dense switch installations without additional cooling
• Compatible with both OM3 and OM4 multimode fibre: OM3 delivers 300m reach, OM4 extends to 400m, enabling flexible cabling choices based on installed infrastructure

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Replaces (older part numbers)

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: J9150D-BCC
Compatible Replacement For: J9150D
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3 Gbps
Wavelength: 850 nm
Fibre Type: Multimode (OM3/OM4)
Fibre Diameter: 50/125 micron
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae 10GBASE-SR, SFF-8431, SFF-8432, SFF-8472
Max Reach: 300m on OM3, 400m on OM4 (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70 degrees C
Power Consumption: 1W maximum
Transmitter Type: VCSEL
Receiver Type: PIN photodiode

Replaces (older part numbers)

J9150A, JL782A, JL784A

FAQs

Q: Will this work in place of the Aruba J9150D?
A: Yes. The J9150D-BCC is compliant with IEEE 802.3ae 10GBASE-SR, uses the same SFP+ form factor, and delivers 10.3 Gbps over 850nm multimode fibre. It is plug-and-play compatible with any Aruba switch or router that accepts the J9150D.

Q: Which Aruba platforms support this transceiver?
A: Confirmed compatible switch families include the Aruba 2530, 2540, 2930F, 6200, 6300, 6400, and 8400X series. Any Aruba platform with SFP+ slots supporting 10GBASE-SR at 850nm will accept this module.

Q: What is the difference in reach between OM3 and OM4 fibre?
A: OM3 fibre (50/125 micron, 2000 MHzkm modal bandwidth) supports 300m at 10 Gbps. OM4 fibre (50/125 micron, 4700 MHzkm modal bandwidth) supports 400m at 10 Gbps. Both use 850nm wavelength. The higher modal bandwidth of OM4 reduces modal dispersion, enabling the longer reach.

Q: How do I access the DDM parameters?
A: DDM data is available via the SFF-8472 two-wire I2C interface at address A2h. Most Aruba switch operating systems expose this via CLI commands such as 'show interface transceiver' or similar. The module reports transmit power, receive power, laser bias current, supply voltage, and temperature in real time.

Q: Can I use this transceiver with OM2 fibre?
A: Yes, but reach is limited. 10GBASE-SR over OM2 fibre (50/125 micron, 500 MHzkm modal bandwidth) is restricted to 82 metres due to modal dispersion at 10 Gbps. If your installed base is OM2 and you need longer links, consider 10GBASE-LRM transceivers which are specifically designed for legacy multimode fibre.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney

Cisco sfp-10g-sr transceiver module with metallic housing and a white label displaying serial number, model details, and regulatory markings.
Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
Blue Cable Co
Cisco

Tested on real vendor hardware in Sydney

Every Blue Cable Co transceiver is coded for your platform and tested in our Sydney test rack on real vendor switches and firewalls before it ships. We check it is recognised and links up the same way the OEM optic does, so you don't find an "unsupported transceiver" error after it's installed.

Brands tested: Cisco, Meraki, Arista, Aruba, HPE, Juniper, Dell, Fortinet, Palo Alto, Check Point, Sophos, Moxa and NVIDIA. Speeds up to 100Gb.

  • 5 year replacement warranty
  • Sydney stock
  • Re-coding if you need it
