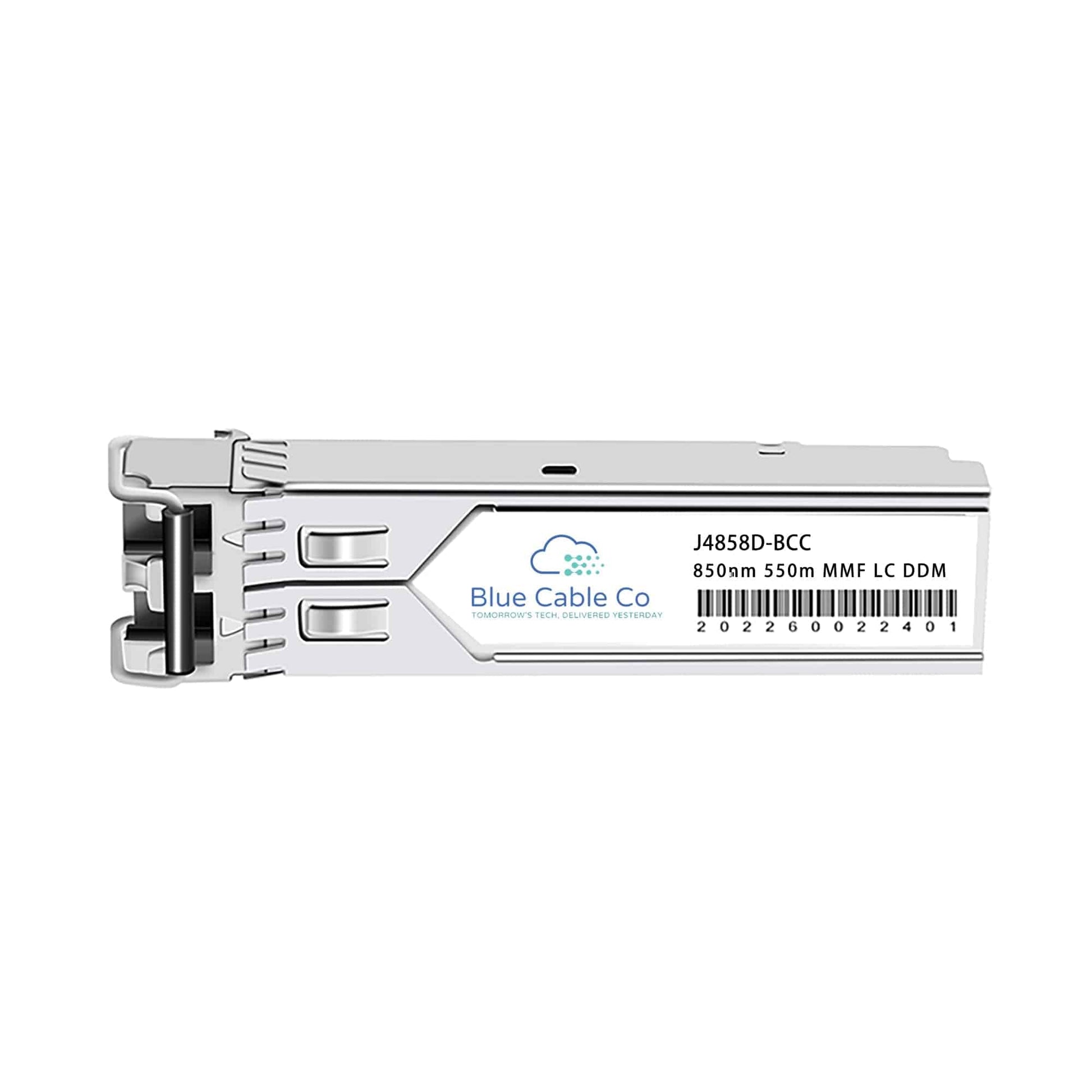

• Aruba Compatible J4858D-BCC 1GB Multi-Mode 550m SFP Transceiver
1 1

Blue Cable Co

J4858D-BCC | Aruba Compatible 1GB Multi-Mode 550m (1000BASE-SX)

J4858D-BCC

34 in stock

$49.50 inc. GST
$45.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The J4858D-BCC is a drop-in compatible replacement for the Aruba J4858D. This 1000BASE-SX SFP transceiver provides plug-and-play compatibility with Aruba switches and networking platforms that require 1.25Gbps Gigabit Ethernet connectivity over multi-mode fibre. - IEEE 802.3z 1000BASE-SX compliance guarantees interoperability with any standard Gigabit Ethernet SFP port - SFP form factor, 1.25Gbps data rate, 850nm wavelength, LC duplex connector - Up to 550m reach over 50/125µm OM2 multi-mode fibre, 275m over 62.5/125µm OM1 fibre - Digital optical monitoring (DOM) support via SFF-8472 enables real-time parameter tracking - Hot-swappable design with standard 0 to 70°C operating temperature range - MSA compliant for use across multi-vendor network environments

Features

• IEEE 802.3z 1000BASE-SX standard compliance ensures seamless interoperability with any vendor's Gigabit Ethernet SFP slot, including mixed-vendor deployments where the same module may be used across different switch platforms
• 850nm VCSEL laser transmitter operates within a 830-860nm spectral window with -9 to -3dBm average output power and 7.5dB minimum optical budget, sufficient for typical campus and data centre multi-mode installations
• Digital diagnostics monitoring via SFF-8472 two-wire serial interface provides real-time access to temperature, supply voltage, TX bias current, TX output power, and RX input power for proactive link management
• Reach scales with fibre grade: 550m over OM2 (50/125µm, 500 MHz·km), 275m over OM1 (62.5/125µm, 200 MHz·km), with higher-grade OM3/OM4 fibre extending usable distance beyond the rated 500m OM2 specification
• Hot-swappable SFP form factor with duplex LC connector enables in-service replacement without powering down the host switch, reducing maintenance windows in production networks
• Commercial temperature range (0 to 70°C) with single +3.3V supply and maximum 130mA current draw suits standard enterprise switch environments and rack-mounted installations
• SFP MSA (SFF-8477) compliance guarantees mechanical and electrical compatibility with all MSA-compliant SFP ports, including those in routers, switches, media converters, and NICs

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Replaces (older part numbers)

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: J4858D-BCC
Compatible Replacement For: J4858D
Compatibility: Aruba compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25Gbps (1000BASE-SX)
Wavelength: 850nm
Fibre Type: Multi-mode
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3z, SFP MSA, SFF-8477
Max Reach: 550m over 50/125µm OM2 MMF, 275m over 62.5/125µm OM1 MMF, 220m over 62.5/125µm FDDI MMF
Operating Temperature: 0 to 70°C (commercial)

Replaces (older part numbers)

J4858C, JL745A, JL780A

FAQs

Q: Will this work in place of the Aruba J4858D?
A: Yes. The J4858D-BCC is a direct replacement for the Aruba J4858D. Both are IEEE 802.3z 1000BASE-SX compliant SFP transceivers operating at 850nm over multi-mode fibre at 1.25Gbps. The module is plug-and-play compatible with Aruba switches and will be recognised without configuration changes.

Q: Which Aruba switches support this transceiver?
A: This transceiver is compatible with Aruba switches that have SFP ports supporting 1000BASE-SX, including the 2530, 2540, 2615, 2620, 2930F, and 2930M series. It will work in any Aruba platform with a Gigabit SFP slot that accepts IEEE 802.3z modules. The module is MSA compliant and will also function in SFP ports from other vendors in multi-vendor environments.

Q: What fibre types and distances does this transceiver support?
A: This transceiver supports 50/125µm OM2 multi-mode fibre up to 550m, 62.5/125µm OM1 fibre up to 275m, and 62.5/125µm FDDI fibre up to 220m. On higher-grade OM3 or OM4 fibre, usable distance may extend beyond 550m due to the improved modal bandwidth of those fibre types, though 550m is the rated specification for OM2.

Q: How do I access DOM diagnostic parameters?
A: This transceiver implements SFF-8472 digital diagnostics monitoring. Parameters including temperature, supply voltage, TX bias current, TX output power, and RX input power are accessible via the two-wire serial interface at address A2h. Most Aruba switch operating systems expose these values through CLI commands or web interface, allowing real-time monitoring without external tools.

Q: Can this transceiver be used in a 10G SFP+ port at 1G speed?
A: Yes, provided the host switch supports dual-rate operation on its SFP+ ports. Many Aruba switches with SFP+ slots will auto-negotiate to 1Gbps when a 1000BASE-SX SFP is inserted. Consult the switch datasheet to confirm 1G/10G dual-rate support on the specific port, as not all SFP+ ports support backward compatibility to 1Gbps.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney

Cisco sfp-10g-sr transceiver module with metallic housing and a white label displaying serial number, model details, and regulatory markings.
Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
Blue Cable Co
Cisco

Tested on real vendor hardware in Sydney

Every Blue Cable Co transceiver is coded for your platform and tested in our Sydney test rack on real vendor switches and firewalls before it ships. We check it is recognised and links up the same way the OEM optic does, so you don't find an "unsupported transceiver" error after it's installed.

Brands tested: Cisco, Meraki, Arista, Aruba, HPE, Juniper, Dell, Fortinet, Palo Alto, Check Point, Sophos, Moxa and NVIDIA. Speeds up to 100Gb.

  • 5 year replacement warranty
  • Sydney stock
  • Re-coding if you need it
