HPE

HPE Q1H68A | Premier Flex OM4 MPO-12 to 4x LC Breakout, 30m

SKU:Q1H68A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This HPE Premier Flex breakout cable is a 30 m bendable OM4 multimode fibre cable with a single MPO-12 connector on one end that fans out to four duplex LC connectors on the other. It suits high-density data centre cabling where one MPO port is broken out into four duplex links, such as 4 x 10GbE or 4 x 14/28 Gb Fibre Channel, particularly in cabinets where cable routing risks tight bends.

The cable uses graded-index 50/125um OM4 fibre rated at 4700 MHz-km at 850 nm, with a minimum recommended bend radius of 7.5 mm and an optical insertion loss of 0.5 dB. Maximum reach with no bend is 100 m for 4x26.56 Gb (PAM4), 4x28.05 Gb FC and 4x14.025 Gb FC, and 150 m for 4x25.78 Gb and 4x10 GbE. The MPO end is a female UPC connector and the LC ends are duplex UPC. This is the 30 m length within the Premier Flex range.

The blue jacket is OFNR rated LSZH thermoplastic, and the cable is RoHS compliant. It is a passive cable and needs no power. It is intended for HPE StoreFabric SAN and Ethernet switch and server environments that use MPO-based ports with duplex LC breakouts.

Enquire with XS Network Tech for new or used pricing and availability.

Features

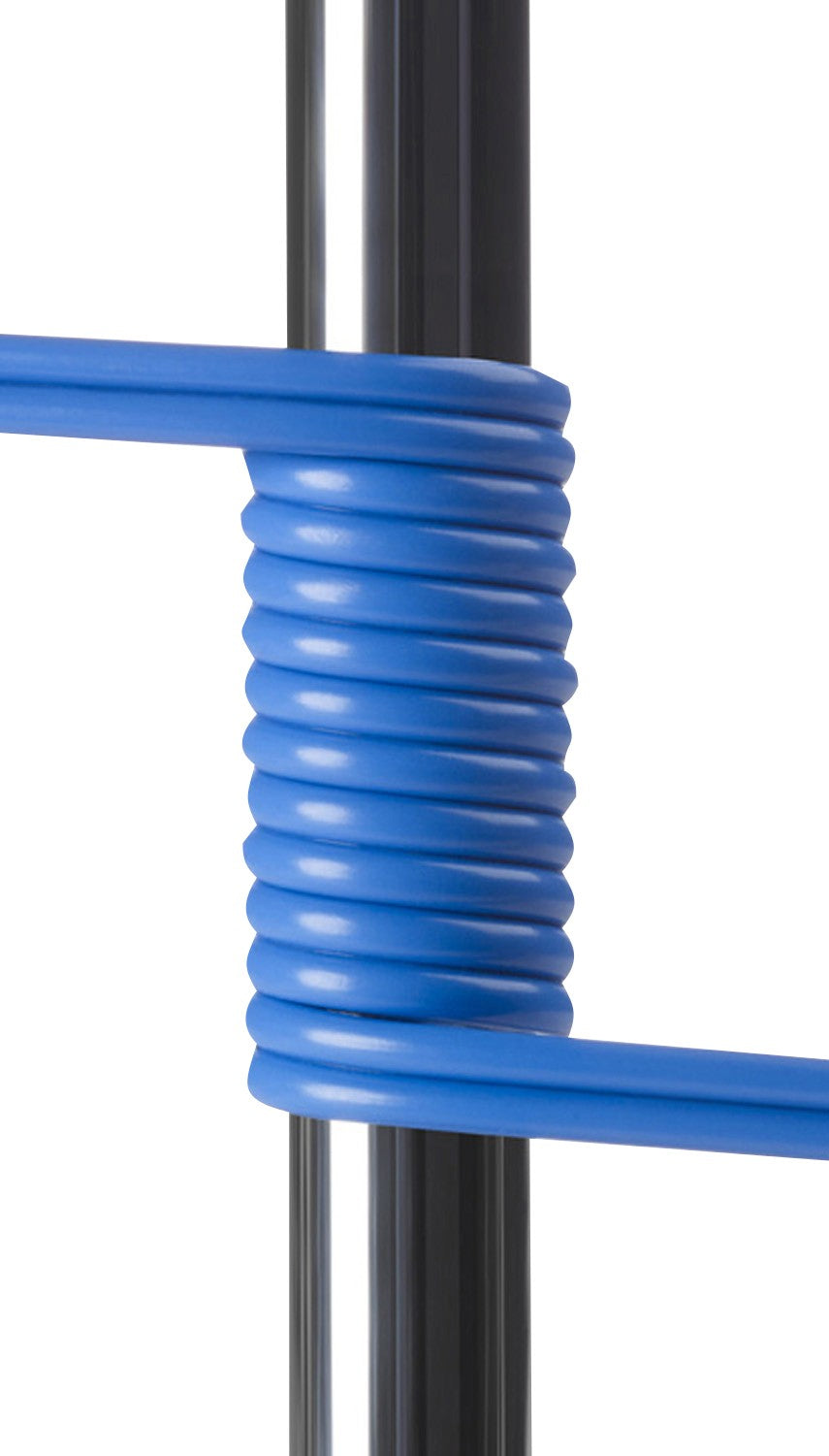

- Up to 10 times better bend performance than existing fibre cables, helping avoid data loss and transmission errors from tight bends, kinks and cabinet-door pinching
- Bendable OM4 multimode fibre with a 7.5 mm minimum recommended bend radius
- MPO-12 to 4 x duplex LC breakout, so a single high-density port can fan out to four duplex links
- Low-smoke zero-halogen (LSZH) riser-rated blue jacket
- Passive design with no power required
- RoHS compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Length: 30 m
- Fibre type: Graded-index, bendable multimode OM4 50/125um
- Connectors: MPO-12 on one end, 4 x duplex LC on the other ends
- MPO connector type: Female, UPC
- LC connector: Duplex UPC
- Core diameter: 50um +/- 3um
- Cladding diameter: 125um +/- 2um
- Bandwidth: 4700 MHz-km @ 850nm (laser)
- Optical insertion loss: 0.5 dB
- Minimum recommended bend radius: 7.5 mm
- Approximate loss @ 35.7 mm bend radius (850 nm): < 0.05 dB (2 turns)
- Approximate loss @ 15 mm bend radius (850 nm): < 0.1 dB (2 turns)
- Approximate loss @ 7.5 mm bend radius (850 nm): < 0.2 dB (2 turns)
- Maximum reach (no bend): 4x26.56 Gb (PAM4) 100 m, 4x28.05 Gb FC 100 m, 4x14.025 Gb FC 100 m
- Maximum reach (no bend): 4x25.78 Gb 150 m, 4x10 GbE 150 m
- Jacket colour: Blue
- Jacket material: OFNR (riser) LSZH thermoplastic
- Power: Passive cable, no power required
- Compliance: RoHS compliant

FAQs

Q: What does this cable break out to?
A: One MPO-12 connector on one end splits into four duplex LC connectors on the other, so a single high-density MPO port can serve four duplex links.

Q: Does it need power or a licence?
A: No. It is a passive fibre cable, so no power and no licence are required.

Q: What speeds and distances does it support?
A: With no bend, it reaches 150 m for 4x10 GbE and 4x25.78 Gb, and 100 m for 4x26.56 Gb (PAM4), 4x28.05 Gb FC and 4x14.025 Gb FC.

Q: What environments is it intended for?
A: It is intended for HPE StoreFabric SAN and Ethernet switch and server environments that use MPO-based ports and duplex LC breakouts, such as the StoreFabric SN3600B.

Q: How does the 30 m cable differ from the other Premier Flex breakout cables?
A: Only the length differs. Q1H68A is the 30 m cable, alongside the K2Q46A (5 m), K2Q47A (15 m) and Q1H69A (50 m).
