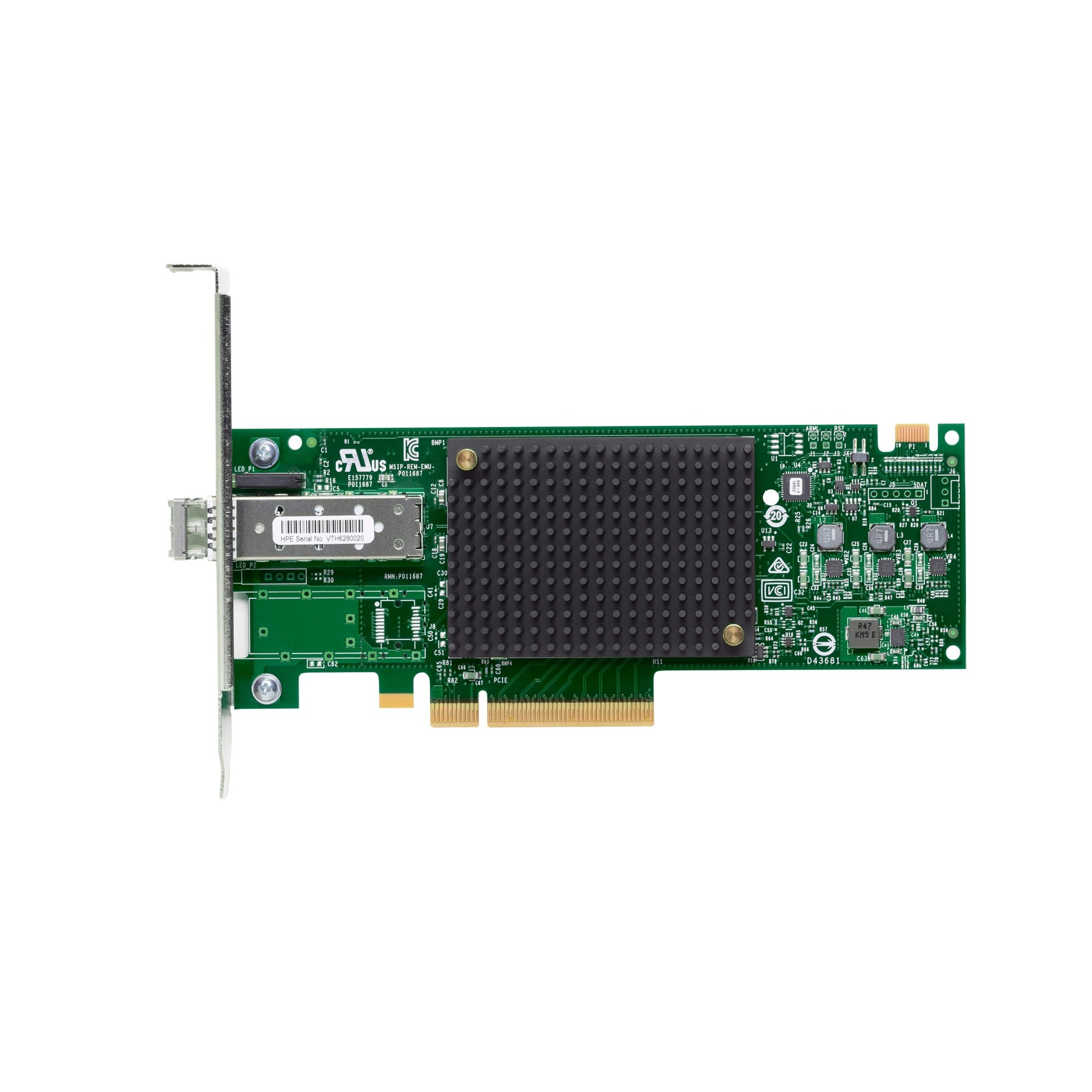

HPE Q0L13A | StoreFabric SN1200E 1-Port 16Gb FC HBA, PCIe 3.0 x8
SKU:Q0L13A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The StoreFabric SN1200E is a single-port 16Gb Fibre Channel host bus adapter for HPE ProLiant servers. It connects servers to Fibre Channel SANs and HPE storage, and suits high-density virtualisation and NVMe over Fibre Channel deployments.
The card uses a PCIe 3.0 x8 host interface and a single 16Gb Fibre Channel port that auto-negotiates at 16, 8 and 4 Gbps. Media is a short-wave multi-mode SFP+ optic with an LC connector. It is powered from the PCIe slot, so no separate power supply is needed, and it ships with both full-height and half-height brackets. No licence or subscription is required, and Emulex OneCommand management software is available from HPE Software Downloads.
It has been through HPE interoperability testing with ProLiant servers, HPE Storage and HPE 16Gb FC edge and core switches. Supported servers include select ProLiant Gen8, Gen9 and Gen10 models such as the DL360, DL380, DL385, DL560, DL580 and ML350.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- NVMe over Fibre Channel ready
- Up to 3x the IOPS, 2x the throughput and half the latency of 8Gb FC HBAs
- Smart SAN support with Target Driven Zoning for HPE 3PAR
- Express Lane I/O prioritisation, managed with Emulex OneCommand
- HPE Active Health System integration
- Secure firmware update to protect firmware authenticity
- Forward error correction (FEC) and Class-specific Control (CS_CTL) QoS
- D-Port diagnostics, link cable beaconing, FDMI, FC Ping and FC Trace Route
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Alternate part number: 870001-001
- Ports: 1 x 16Gb Fibre Channel
- Port speed: 16 Gbps, auto-negotiates 16/8/4 Gbps
- Host interface: PCIe 3.0 x8
- Media: Multi-mode optic (SFP+)
- Connector: Short-wave laser with LC connector
- Brackets: Full-height and half-height (low-profile)
- Servers supported: Select HPE ProLiant Gen8, Gen9 and Gen10 servers
- Operating systems: Windows Server 2016/2012/2012 R2 and Hyper-V (x64), RHEL 7.x/6.x (x64), SLES 12.x/11.x (x64), VMware ESX/ESXi 6.5/6.0/5.5
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 85 C
- Operating relative humidity: 10% to 90% at 40 C, non-condensing
- Dimensions (W x D x H): 167.6 x 17.5 x 68.9 mm
FAQs
Q: Does it need a licence or subscription?
A: No. The adapter requires no licence or subscription. Emulex OneCommand management software can be downloaded from HPE Software Downloads.
Q: Does it need a separate power connection?
A: No. The adapter is powered from the PCIe slot, so no separate power supply is required.
Q: Which HPE servers is it designed for?
A: It supports select HPE ProLiant Gen8, Gen9 and Gen10 servers, including the DL360, DL380, DL385, DL560, DL580 and ML350, and the Apollo 4510 Gen10. Check HPE SPOCK for your exact server model.
Q: Will it link to older 8Gb or 4Gb Fibre Channel switches?
A: Yes. The port auto-negotiates at 16, 8 and 4 Gbps, so it can connect to switches running at those speeds.
Q: Can it be fitted in a low-profile slot?
A: Yes. Both full-height and half-height brackets are supplied with the card, so it can be fitted in either slot height.
