HPE P72660-B21 | EPYC 9135 Server Processor, 16-Core, 3.65GHz, 200W
SKU:P72660-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

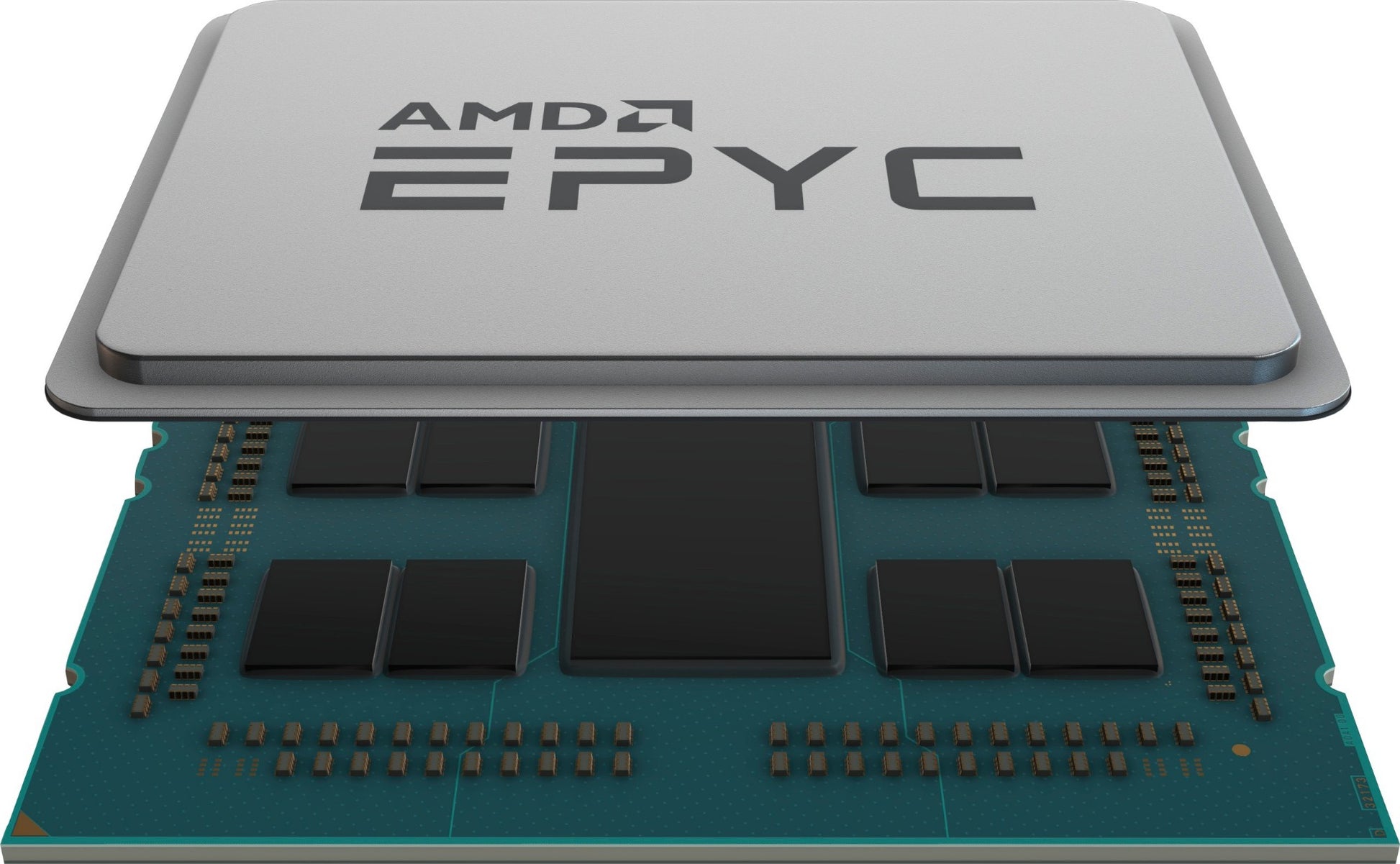

The AMD EPYC 9135 is a 16-core, 32-thread server processor for supported HPE ProLiant Gen11 and Gen12 rack servers, from the AMD EPYC 9005 Series. Its high base frequency suits virtualisation hosts, database servers and other compute-intensive enterprise workloads that benefit from strong per-core performance, including per-core licensed software.
The processor runs at a 3.65 GHz base clock with boost up to 4.3 GHz, backed by 64 MB of L3 cache and a 200 W TDP. It uses the Socket SP5 interface and supports 12 channels of DDR5 memory at up to 6400 MT/s, giving up to 576 GB/s of memory bandwidth. PCIe 5.0 is supported with up to 128 lanes for high-speed storage, network adapters and accelerators.
It is designed for HPE ProLiant DL325, DL365 and DL385 Gen11 servers, and Gen12 support applies on selected platforms. Confirm compatibility against the HPE QuickSpecs for the target server. A heatsink and fan kit must be ordered separately for the server.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- High-frequency 16-core design suited to per-core licensed and latency-sensitive workloads
- 12-channel DDR5 memory support with up to 576 GB/s bandwidth
- PCIe 5.0 with up to 128 lanes for storage, networking and accelerators
- Supports AMD Infinity Guard and AMD Infinity Architecture
- HPE-qualified option for supported ProLiant servers
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Processor model: AMD EPYC 9135
- Base clock speed: 3.65 GHz
- Boost frequency: up to 4.3 GHz
- Cores: 16
- Threads: 32
- Cache: 64 MB L3
- Power consumption (TDP): 200 W
- Processor socket: Socket SP5
- Operating mode: 64-bit
- Memory type: DDR5-SDRAM
- Maximum memory speed: 6400 MT/s
- Memory channels: 12
- Maximum memory bandwidth: 576 GB/s
- PCI Express version: 5.0
- Maximum PCI Express lanes: 128
- On-board graphics: No
- Market segment: Server
FAQs
Q: Which HPE servers is this processor designed for?
A: It is designed for supported HPE ProLiant Gen11 servers such as the DL325, DL365 and DL385, with Gen12 support on selected platforms. Confirm against the HPE QuickSpecs for your specific server model.
Q: Does this processor need a heatsink and fan kit?
A: Yes. The processor is supplied without a heatsink or fan kit, so a compatible kit must be ordered separately for the target server.
Q: What type of memory does it support?
A: It supports DDR5 memory across 12 channels at up to 6400 MT/s, with up to 576 GB/s of memory bandwidth.
Q: Does it include integrated graphics?
A: No. The EPYC 9135 has no on-board graphics, so the server relies on its own management or add-in graphics for display output.
Q: What is the thermal power requirement?
A: The processor has a 200 W TDP, so the server cooling and power configuration must support a 200 W Socket SP5 processor.
