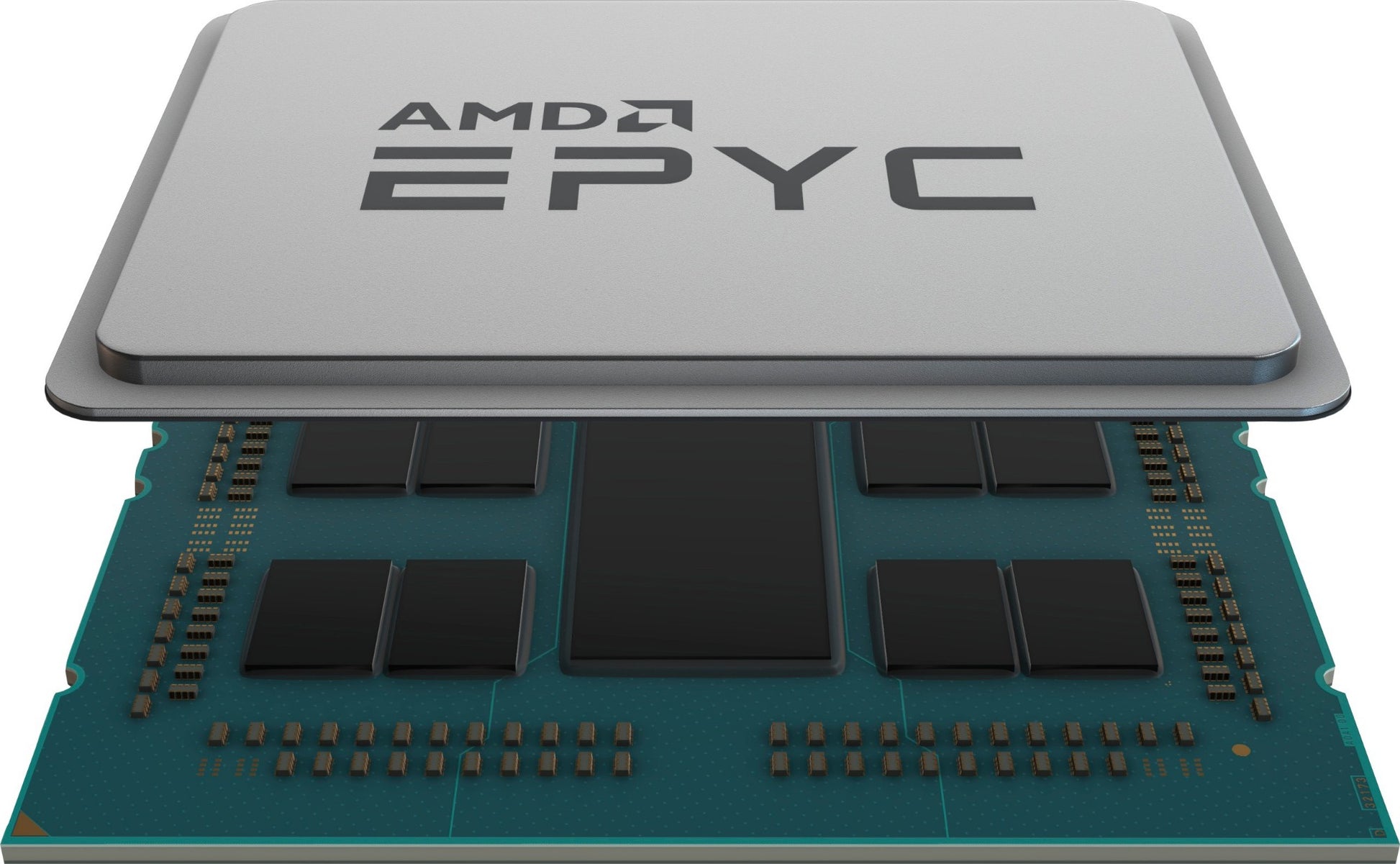

HPE P72648-B21 | EPYC 9745 Processor, 128-Core, 2.4GHz, 400W, SP5
SKU:P72648-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The AMD EPYC 9745 is a 5th Gen EPYC 9005 Series server processor for Socket SP5, supplied as an HPE option for ProLiant Gen11 AMD servers. It is built for high-density compute, virtualisation and cloud, containerised and cloud-native workloads, analytics, and video surveillance or AI inference workloads.
This SKU is the 128-core variant, running 256 threads at a 2.4 GHz base frequency with boost up to 3.7 GHz and 256 MB of L3 cache. It carries a 400 W TDP and supports 12-channel DDR5 memory at up to 6400 MHz, with 576 GB/s of memory bandwidth and PCI Express 5.0 with 128 lanes. It sits above the 96-core 2.3 GHz 320 W EPYC 9645 option for buyers who need maximum core density per socket.
It is listed as a core option in the HPE ProLiant DL325 Gen11 and DL345 Gen11 QuickSpecs, and in the DL345 Gen12 QuickSpecs. As an SP5 part it needs a compatible SP5 server board with the matching heatsink and fan kit. Server power supplies and cooling must be sized for 400 W processors.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 5th Gen AMD EPYC architecture with 128 cores for high-density workloads
- 256 threads for heavily parallel virtualisation and container platforms
- 12-channel DDR5 memory support up to 6400 MHz
- PCIe Gen5 I/O with 128 lanes
- AMD Infinity Guard security features
- AMD Infinity Architecture
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Processor family: AMD EPYC
- Processor model: 9745
- AMD part number: 100-000001460
- Series: AMD EPYC 9005 Series (5th Gen)
- Processor cores: 128
- Processor threads: 256
- Base frequency: 2.4 GHz
- Max boost frequency: 3.7 GHz
- Cache: 256 MB L3
- TDP: 400 W
- Socket: SP5
- Memory channels: 12
- Memory type: DDR5-SDRAM
- Memory speed supported: up to 6400 MHz
- Memory bandwidth: 576 GB/s
- PCI Express: 5.0 (x128)
- Operating mode: 64-bit
- Market segment: Server
- Max memory per CPU (1DPC, HPE DL345/DL325 Gen11): 3 TB
FAQs
Q: Which HPE servers is the EPYC 9745 listed for?
A: It is listed as a core option in the HPE ProLiant DL325 Gen11 and DL345 Gen11 QuickSpecs, and in the HPE ProLiant Compute DL345 Gen12 QuickSpecs.
Q: What power and cooling does a 400 W processor need?
A: The host server's power supplies and cooling must be sized for 400 W CPUs. Check the server QuickSpecs for the supported power supply and heatsink options.
Q: Will it fit any server board?
A: No. It is a Socket SP5 part, so it needs a compatible SP5 server board along with the matching heatsink and fan kit.
Q: How much memory can it address?
A: Up to 3 TB per CPU at one DIMM per channel in the HPE DL345 and DL325 Gen11. The DL345 Gen12 QuickSpecs list up to 6 TB.
Q: How does it differ from the EPYC 9645?
A: The 9745 has 128 cores at 2.4 GHz and a 400 W TDP. The EPYC 9645 (P72649-B21) has 96 cores at 2.3 GHz and a 320 W TDP.
