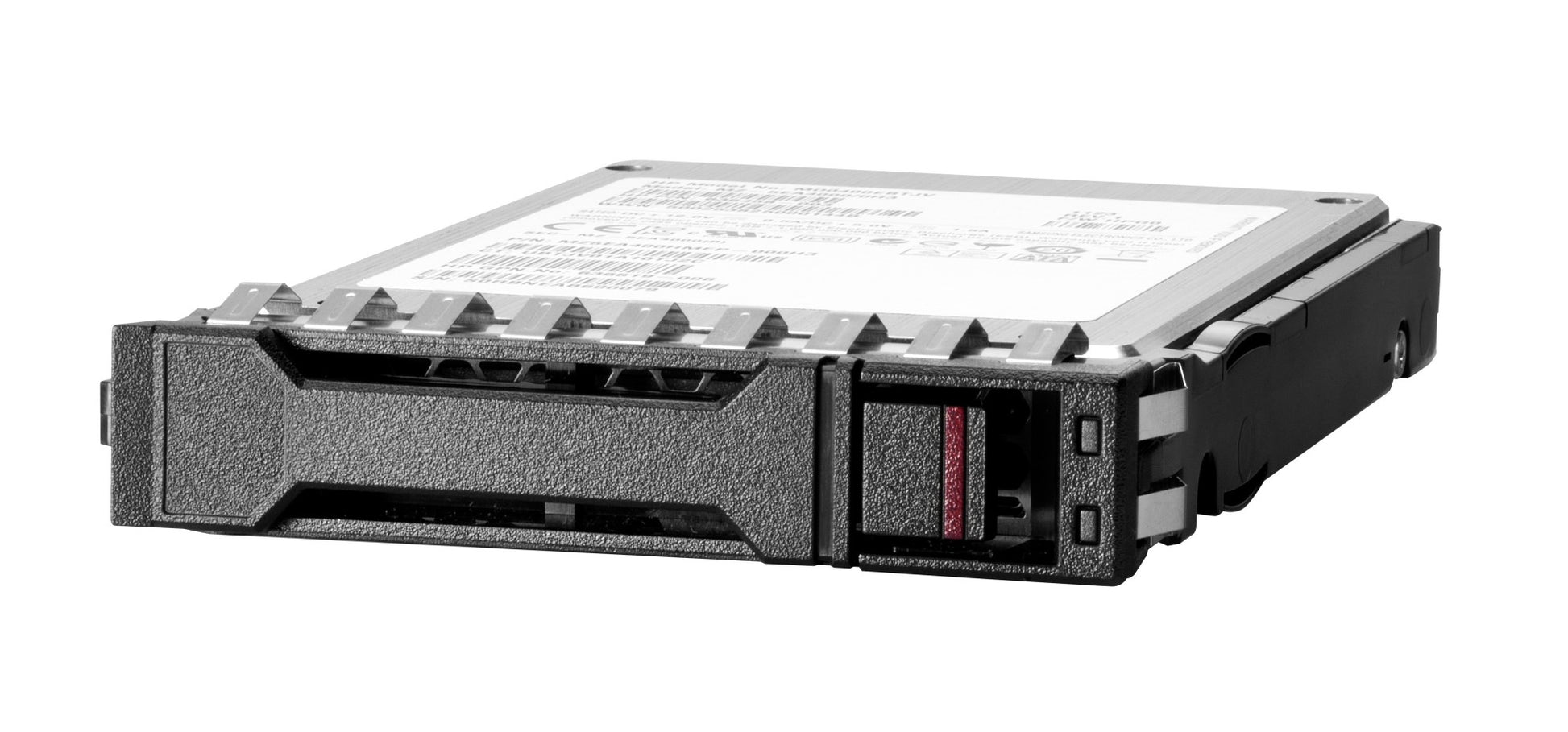

HPE P69255-B21 | 15.36TB NVMe U.3 SSD, Read Intensive, SFF, SPDM
SKU:P69255-B21
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 15.36TB NVMe PCIe Gen4 solid state drive from the HPE NVMe Mainstream Performance Read Intensive U.3 Static range is built for supported HPE servers and storage platforms with U.3 NVMe SFF bays. It suits big data analytics, cloud computing, HPC, business intelligence, database applications, virtualisation, read caching and bulk storage workloads that need high IOPS per watt.
The drive is rated Read Intensive at 1 DWPD, with 28,032 lifetime writes. In the 4KiB random tests it delivers 220,577 read IOPS and 267,851 write IOPS at a queue depth of 16, peaking at 1,098,870 read IOPS at QD256 and 274,294 write IOPS at QD16. It uses a U.3 connector in a 2.5 inch SFF basic carrier, is hot-pluggable, stands 15 mm high and draws 15.6 W. SPDM (Security Protocol and Data Model) support provides device attestation.
It works with HPE servers and storage platforms that have U.3 NVMe SFF bays and can use PCIe Gen4 bandwidth, making it a practical upgrade path from SATA SSDs. Check the HPE Solid State Disk Drives QuickSpecs for the supported server list.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Balances high read IOPS, low latency and high endurance at a sensible price point
- Direct application access over the PCIe bus for greater I/O bandwidth and lower latency
- Uses PCIe Gen4 bandwidth in select servers as an upgrade path from SATA SSDs
- Suited to read caching, social media and bulk storage workloads needing high IOPS per watt
- Full data-path error detection to maintain data accuracy
- SPDM support for device attestation
- Hot-pluggable SFF basic carrier design
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 15.36 TB
- Interface: NVMe PCIe 4.0 (Gen4)
- Connector and form factor: U.3, SFF 2.5 inch, Basic Carrier
- Endurance class: Read Intensive
- Endurance: 1 DWPD
- Lifetime writes: 28,032
- Random read (4KiB, Q=16): 220,577 IOPS
- Maximum random read (4KiB): 1,098,870 IOPS at QD256
- Random write (4KiB, Q=16): 267,851 IOPS
- Maximum random write (4KiB): 274,294 IOPS at QD16
- Power: 15.6 W
- Plug type: Hot pluggable
- Height: 15 mm
- Weight: 0.5 kg
- Security: SPDM (Security Protocol and Data Model)
FAQs
Q: What endurance class is this drive?
A: It is a Read Intensive drive rated at 1 drive write per day, with 28,032 lifetime writes. It suits workloads dominated by reads such as caching, analytics and bulk storage.
Q: Which servers can use this SSD?
A: It is intended for supported HPE servers and storage platforms with U.3 NVMe SFF bays. The HPE Solid State Disk Drives QuickSpecs lists the supported platforms.
Q: What does SPDM support provide?
A: SPDM stands for Security Protocol and Data Model. It allows the drive to support device attestation on platforms that use it.
Q: How much power does the drive draw?
A: It is rated at 15.6 W.
Q: Can it be swapped while the server is running?
A: Yes. The drive is hot-pluggable and comes in an SFF basic carrier for supported drive bays.
