HPE

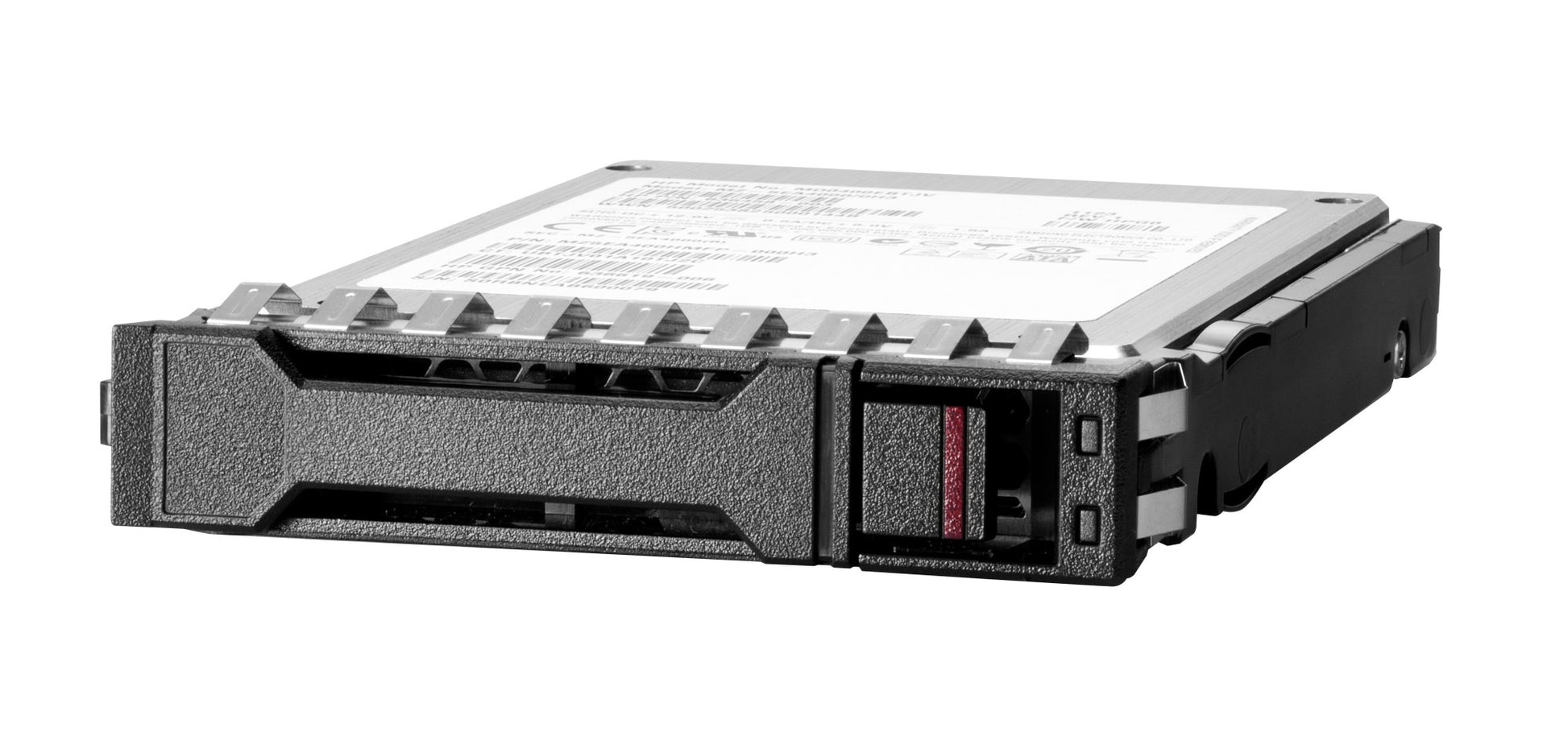

HPE P64848-B21 | 7.68TB NVMe Gen4 U.3 SSD, Read Intensive, Multi Vendor

SKU:P64848-B21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 7.68TB read-intensive NVMe SSD is part of the HPE NVMe Mainstream Performance Read Intensive U.3 Static SSD range. It is a 2.5-inch SFF hot-plug drive in a Basic Carrier with a U.3 connector, built for read-heavy, high-IOPS workloads such as big data analytics, cloud computing, high performance compute, business intelligence, database applications and virtualization.

The drive uses an NVMe PCIe Gen4 interface with TLC flash and a single port. It is rated for 1.0 DWPD, with sequential read and write speeds of up to 6,200 and 3,870 MiB/s. Random performance reaches up to 950,000 read IOPS and 190,000 write IOPS at 4KiB, with average read and write latency of 76 and 17 microseconds at queue depth 1. This is the 7.68TB, Read Intensive, U.3 Static V2, Multi Vendor variant. Power draw is 5.00 W at idle and 21.00 W at maximum.

HPE QuickSpecs list support on select ProLiant Gen11 and Gen12 platforms. The drive needs a U.3-capable NVMe backplane and controller, so check the HPE server QuickSpecs for exact platform support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High IOPS for read-heavy data centre workloads
- Full data-path error detection to maintain data accuracy
- Digitally signed firmware
- Backed by up to 3.35 million hours of HPE testing and qualification
- Suited to big data analytics, cloud computing, HPC, business intelligence, database and virtualization workloads
- Lower I/O latency and better power efficiency than traditional HDDs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- HPE option kit SKU: P64848-B21
- Capacity: 7,680 GB (7.68TB)
- Workload type: Read Intensive (RI)
- Interface: NVMe PCIe Gen4
- Form factor: SFF (2.5-inch)
- Connector: U.3
- Plug type: Hot plug
- Carrier type: Basic Carrier (BC)
- Flash type: TLC
- Port: Single
- Digitally signed firmware: Yes
- Server generations supported (select platforms): Gen11, Gen12
- Endurance: 1.0 DWPD (14,016 TBW)
- Max sequential read / write: 6,200 / 3,870 MiB/s
- Random read / write IOPS (4KiB, Q=16): 196,951 / 190,000
- Max random read / write IOPS (4KiB): 950,000 at Q256 / 190,000 at Q4
- Random read / write average latency (4KiB, Q1): 76 / 17 uSec
- Power, idle: 5.00 W
- Power, random read: 11.50 W
- Power, random write: 13.96 W
- Power, sequential read: 12.10 W
- Power, sequential write: 15.28 W
- Power, maximum: 21.00 W
- Z-height: 15 mm
- Data retention: 3 months unpowered once maximum rated write endurance is reached

FAQs

Q: Which servers is this drive designed for?
A: HPE QuickSpecs list support on select ProLiant Gen11 and Gen12 platforms. Check the QuickSpecs for your exact server model before ordering.

Q: What backplane or controller does it need?
A: It uses a U.3 SFF Basic Carrier, so it needs a U.3-capable NVMe backplane and controller in the server.

Q: What workload is this drive suited to?
A: It is a Read Intensive drive rated at 1.0 DWPD, aimed at read-heavy workloads such as analytics, databases, virtualization and cloud computing.

Q: Is it hot-pluggable?
A: Yes. It is a hot-plug SFF drive in a Basic Carrier and is powered from the server drive backplane.

Q: How much power does it draw?
A: Power draw is 5.00 W at idle and up to 21.00 W at maximum, with a 15 mm z-height.
