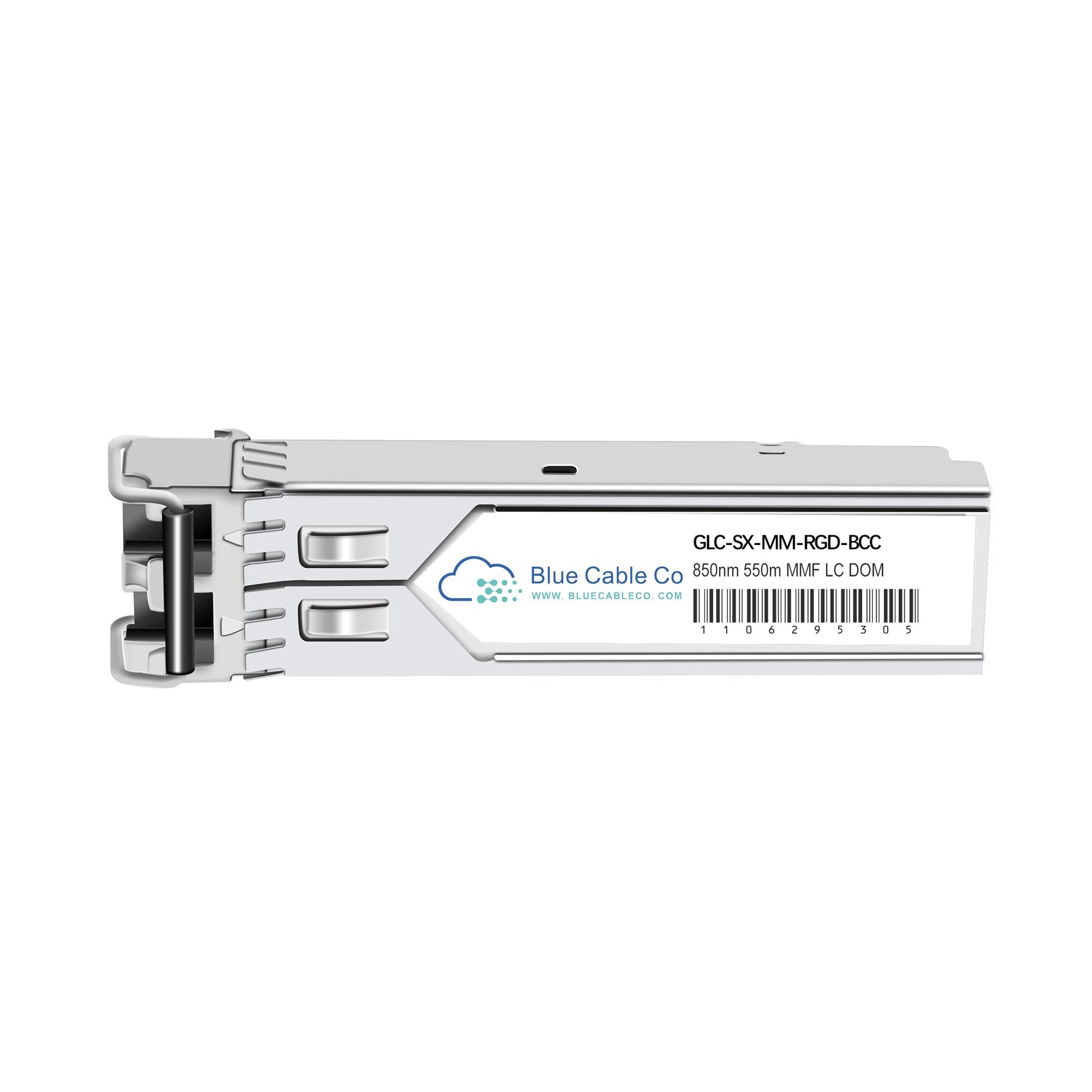

• Cisco Compatible GLC-SX-MM-RGD-BCC 1GB Multi-Mode SFP Module
1 1

Blue Cable Co

GLC-SX-MM-RGD-BCC | Cisco Compatible 1GB Multi-Mode 550m (1000BASE-SX) Rugged / Industrial

GLC-SX-MM-RGD-BCC

33 in stock

$51.70 inc. GST
$47.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The GLC-SX-MM-RGD-BCC is a drop-in compatible replacement for the Cisco GLC-SX-MM-RGD. Designed for industrial environments, this rugged SFP operates plug-and-play in Cisco switches, routers, and network interface cards with extended operating temperatures from -40 to 85 degrees Celsius. - IEEE 802.3z 1000BASE-SX standard compliance ensures interoperability with legacy and current Gigabit Ethernet infrastructure - SFP form factor, 1.25 Gbps data rate, 850nm VCSEL laser transmitter, duplex LC connector - Multi-mode fibre compatible: up to 550m over 50/125 micron OM2 fibre, up to 220m over 62.5/125 micron FDDI-grade fibre - Digital Optical Monitoring support via SFF-8472 MSA for real-time parameter tracking including optical power, temperature, and laser bias current - Hardened components and extended -40 to 85 degrees Celsius operating temperature range for harsh outdoor and factory environments - Hot-swappable design with single 3.3V power supply and power consumption under 1W

Features

• IEEE 802.3z 1000BASE-SX compliance guarantees interoperability with any standards-compliant Gigabit Ethernet platform using multi-mode fibre infrastructure at 850nm
• 850nm VCSEL laser transmitter and PIN photodiode receiver deliver up to 9 dB optical link budget, sufficient for 550m links over OM2 and OM3 multi-mode fibre under typical attenuation conditions
• Industrial temperature rating from -40 to 85 degrees Celsius achieved through ruggedized component selection and metal enclosure thermal design, enabling deployment in factory floors, outdoor enclosures, and harsh climate installations
• SFF-8472 MSA compliant Digital Optical Monitoring exposes real-time transceiver parameters including transmit and receive optical power, supply voltage, temperature, and laser bias current for proactive link diagnostics and failure prediction
• Hot-swappable SFP MSA form factor allows port-level insertion and removal without powering down host equipment, minimizing service interruption during maintenance or upgrades
• Single 3.3V supply with sub-1W power dissipation and lower EMI metal housing reduce thermal load per port and simplify power budget planning in high-density SFP installations
• Duplex LC optical interface supports legacy 62.5/125 micron FDDI-grade fibre and modern 50/125 micron OM2/OM3/OM4 multi-mode fibre, providing backward compatibility and migration flexibility

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

Replaces (older part numbers)

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-SX-MM-RGD-BCC
Compatible Replacement For: GLC-SX-MM-RGD
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps
Wavelength: 850nm
Fibre Type: Multi-mode (50/125 micron OM2, 62.5/125 micron FDDI-grade)
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472 MSA compliant)
Standards: IEEE 802.3z 1000BASE-SX
Max Reach: Up to 550m on 50/125 micron MMF, up to 220m on 62.5/125 micron MMF (per IEEE 802.3z standard, subject to fibre quality and link conditions)
Operating Temperature: -40 to 85 degrees Celsius (industrial / rugged grade)
Power Supply: Single 3.3V
Power Consumption: <1W

Also Known As

GLC-SX-MM-RGD=

Replaces (older part numbers)

GLC-SX-MM

FAQs

Q: Will this work in place of the Cisco GLC-SX-MM-RGD?
A: Yes. The GLC-SX-MM-RGD-BCC is designed as a direct replacement. It matches the IEEE 802.3z 1000BASE-SX standard, SFP form factor, 1.25 Gbps data rate, 850nm wavelength, and -40 to 85 degree Celsius operating range of the Cisco original. The module is plug-and-play compatible with Cisco equipment that specifies the GLC-SX-MM-RGD.

Q: Which Cisco platforms support this transceiver?
A: This transceiver is compatible with Cisco industrial Ethernet switches, routers, network interface cards, and fibre media converters that feature SFP ports and support 1000BASE-SX optics. The industrial temperature rating makes it suitable for ruggedized Cisco platforms designed for factory, outdoor, and extended-temperature deployments. Compatibility is determined by the platform supporting IEEE 802.3z 1000BASE-SX on SFP ports.

Q: What is the actual reach over OM3 and OM4 fibre compared to OM2?
A: The IEEE 802.3z 1000BASE-SX standard specifies up to 550m over 50/125 micron OM2 fibre. Over OM3 and OM4 fibre with lower attenuation and higher modal bandwidth, this module can reliably achieve the same 550m distance and may support greater distances depending on link budget. The 9 dB optical budget provides headroom over typical OM3/OM4 attenuation, but actual distance depends on connector loss, patch panel insertion loss, and fibre condition.

Q: Can I monitor the transceiver health and optical power levels in real time?
A: Yes. This module supports Digital Optical Monitoring via the SFF-8472 MSA interface. Your network operating system or switch management software can query the transceiver for transmit power, receive power, supply voltage, temperature, and laser bias current. This data enables proactive link monitoring, threshold alarms, and diagnostics without external test equipment. DOM is accessible through standard CLI or SNMP on compatible Cisco platforms.

Q: What makes the rugged version different from the standard GLC-SX-MMD?
A: The rugged variant extends the operating temperature range to -40 to 85 degrees Celsius, compared to the 0 to 70 degree Celsius range of standard commercial modules. This is achieved through component selection rated for industrial environments, enhanced thermal design, and materials that tolerate temperature cycling and vibration. The rugged version is required for outdoor cabinets, factory floors, and transportation applications where ambient temperature or enclosure heat exceeds commercial limits.
