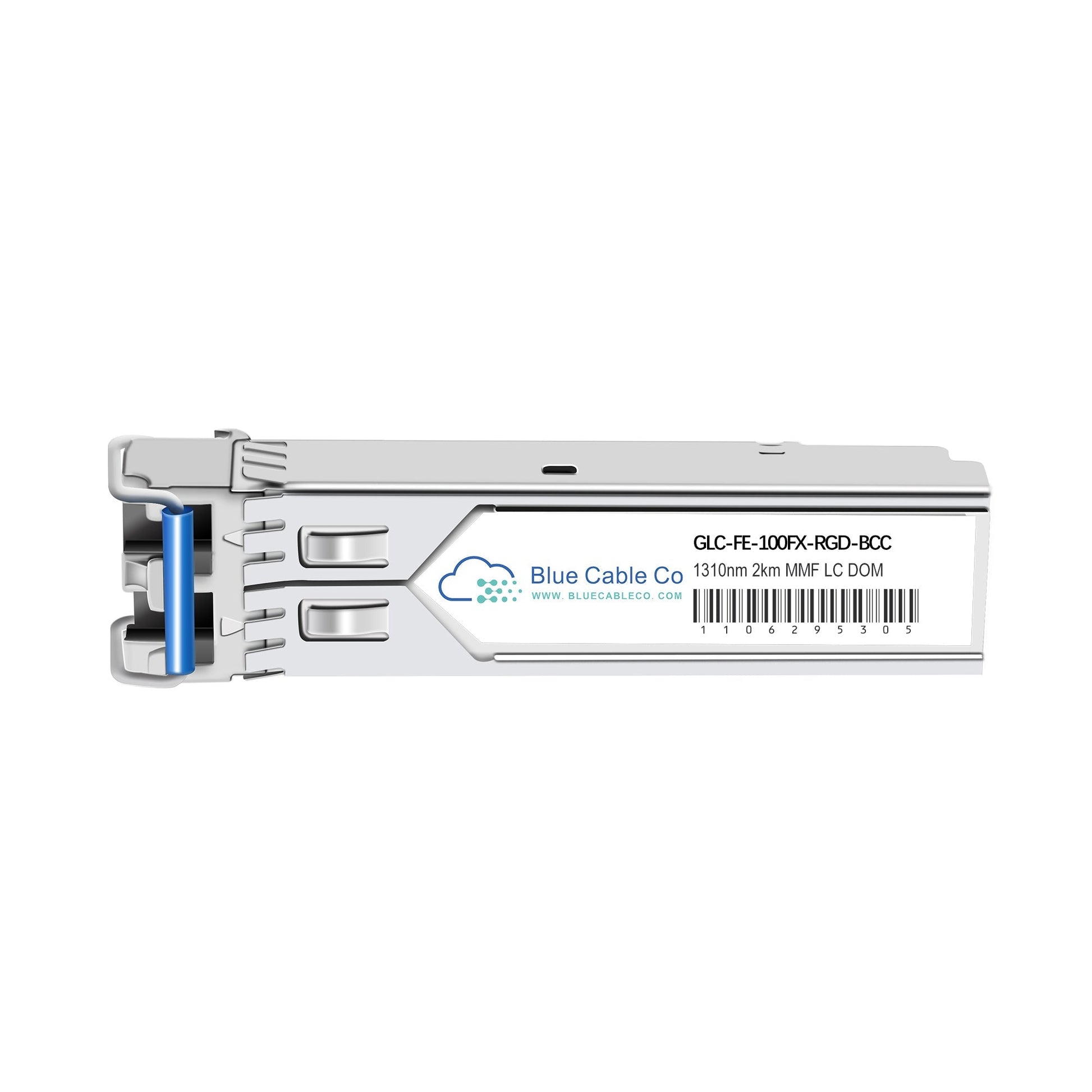

• Cisco Compatible GLC-FE-100FX-RGD-BCC Silver Fiber Optic Transceiver
1 1

Blue Cable Co

GLC-FE-100FX-RGD-BCC | Cisco Compatible 100MB Multi-Mode - 2km (100BASE-FX) Rugged / Industrial

GLC-FE-100FX-RGD-BCC

11 in stock

$49.28 inc. GST
$44.80 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The GLC-FE-100FX-RGD-BCC is a drop-in compatible replacement for the Cisco GLC-FE-100FX-RGD. This 100BASE-FX SFP transceiver is designed for plug-and-play operation in Fast Ethernet or dual-rate Fast/Gigabit Ethernet ports on Cisco Industrial Ethernet and SmartGrid switches and routers. - IEEE 802.3 100BASE-FX compliance ensures interoperability with standards-compliant equipment across industrial environments - SFP form factor, 100 Mbps data rate, 1310nm wavelength, multi-mode fibre, up to 2km reach via duplex LC connector - Industrial temperature range of -40 to 85°C for deployment in harsh outdoor and industrial settings where commercial-grade optics cannot operate - Digital Optical Monitoring (DOM) support provides real-time access to temperature, voltage, and optical power parameters for proactive link management - Hot-swappable design allows installation and removal without interrupting network operations or powering down the host device - MSA compliant 20-pin edge connector and 1W maximum power consumption for compatibility with SFP-equipped platforms

Features

• IEEE 802.3 100BASE-FX standard compliance guarantees full interoperability with any standards-compliant Fast Ethernet infrastructure, whether from Cisco or third-party vendors, eliminating vendor lock-in at the physical layer
• Industrial temperature rating from -40°C to +85°C enables deployment in outdoor enclosures, factory floors, substations, and other harsh environments where temperature extremes, vibration, and dust would disable commercial-grade transceivers rated only to +70°C
• Digital Optical Monitoring exposes real-time transmit and receive power, temperature, voltage, and bias current via I2C interface, allowing network management systems to track link health trends, detect failing fibres early, and reduce mean time to repair
• 1310nm wavelength on multi-mode fibre provides 2km reach over standard OM1 or better MMF with 8.5 dB link budget, suitable for intra-building or short campus runs without requiring single-mode fibre infrastructure
• Hot-swappable SFP form factor supports field replacement and port reconfiguration without chassis shutdown, maintaining uptime during transceiver upgrades or troubleshooting in production networks
• SFP MSA-compliant 20-pin electrical interface and 1W power draw ensure physical and electrical compatibility with Cisco Industrial Ethernet switches, routers, and any MSA-compliant Fast Ethernet or dual-rate Gigabit/Fast Ethernet SFP port

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-FE-100FX-RGD-BCC
Compatible Replacement For: GLC-FE-100FX-RGD
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-Factor Pluggable)
Data Rate: 100 Mbps (Fast Ethernet)
Wavelength: 1310nm
Fibre Type: Multi-mode fibre (MMF)
Connector Type: Duplex LC
DOM Support: Yes (Digital Optical Monitoring)
Standards Compliance: IEEE 802.3 100BASE-FX, SFP MSA
Max Reach: Up to 2km (per datasheet, subject to fibre quality and link conditions)
Operating Temperature: -40°C to +85°C (Industrial / Rugged)
Power Consumption: 1W maximum

Also Known As

GLC-FE-100FX-RGD=

FAQs

Q: Will this work in place of the Cisco GLC-FE-100FX-RGD?
A: Yes. The GLC-FE-100FX-RGD-BCC is electrically and mechanically identical to the Cisco GLC-FE-100FX-RGD and provides the same 100BASE-FX interface at 100 Mbps over multi-mode fibre. It is plug-and-play compatible with any Cisco Fast Ethernet SFP port or dual-rate Fast/Gigabit Ethernet port that accepts the original Cisco module, with no configuration changes required.

Q: Which Cisco platforms support this transceiver?
A: This transceiver operates in any Cisco switch or router with Fast Ethernet SFP ports or dual-rate Fast/Gigabit Ethernet SFP ports. It is specifically designed for Cisco Industrial Ethernet and SmartGrid platforms that require the industrial temperature range. Consult Cisco's 100M Ethernet SFP Compatibility Matrix for detailed platform support, as specific platform families are subject to software and hardware revision.

Q: What multi-mode fibre types are supported for the full 2km reach?
A: The 2km reach specification assumes OM1 (62.5/125 µm) or better multi-mode fibre with an 8.5 dB link budget. Higher-grade fibres such as OM2, OM3, or OM4 will also work and may extend reach slightly depending on splice loss and connector quality. The minimum cable distance is 2 metres. Actual reach depends on total insertion loss of the fibre path, including connectors, splices, and fibre attenuation.

Q: Can I monitor optical power and temperature in real time?
A: Yes. This transceiver includes Digital Optical Monitoring (DOM) accessible via the I2C interface on the SFP connector. DOM exposes transmit power, receive power, supply voltage, bias current, and temperature in real time. Most Cisco platforms expose these parameters through CLI commands or SNMP MIBs, allowing you to monitor link health and detect degraded optics or fibre before a link fails.

Q: What makes the industrial temperature rating critical for this transceiver?
A: The -40°C to +85°C industrial temperature range allows this transceiver to operate in outdoor cabinets, utility substations, factory automation enclosures, and other environments where ambient temperature exceeds the 0°C to +70°C limit of commercial-grade optics. Industrial-rated transceivers use components and assembly processes that maintain stable laser output, receiver sensitivity, and DOM accuracy across the extended temperature range, preventing link flapping or failure during temperature excursions.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney

Cisco sfp-10g-sr transceiver module with metallic housing and a white label displaying serial number, model details, and regulatory markings.
Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
Blue Cable Co
Cisco

Tested on real vendor hardware in Sydney

Every Blue Cable Co transceiver is coded for your platform and tested in our Sydney test rack on real vendor switches and firewalls before it ships. We check it is recognised and links up the same way the OEM optic does, so you don't find an "unsupported transceiver" error after it's installed.

Brands tested: Cisco, Meraki, Arista, Aruba, HPE, Juniper, Dell, Fortinet, Palo Alto, Check Point, Sophos, Moxa and NVIDIA. Speeds up to 100Gb.

  • 5 year replacement warranty
  • Sydney stock
  • Re-coding if you need it
