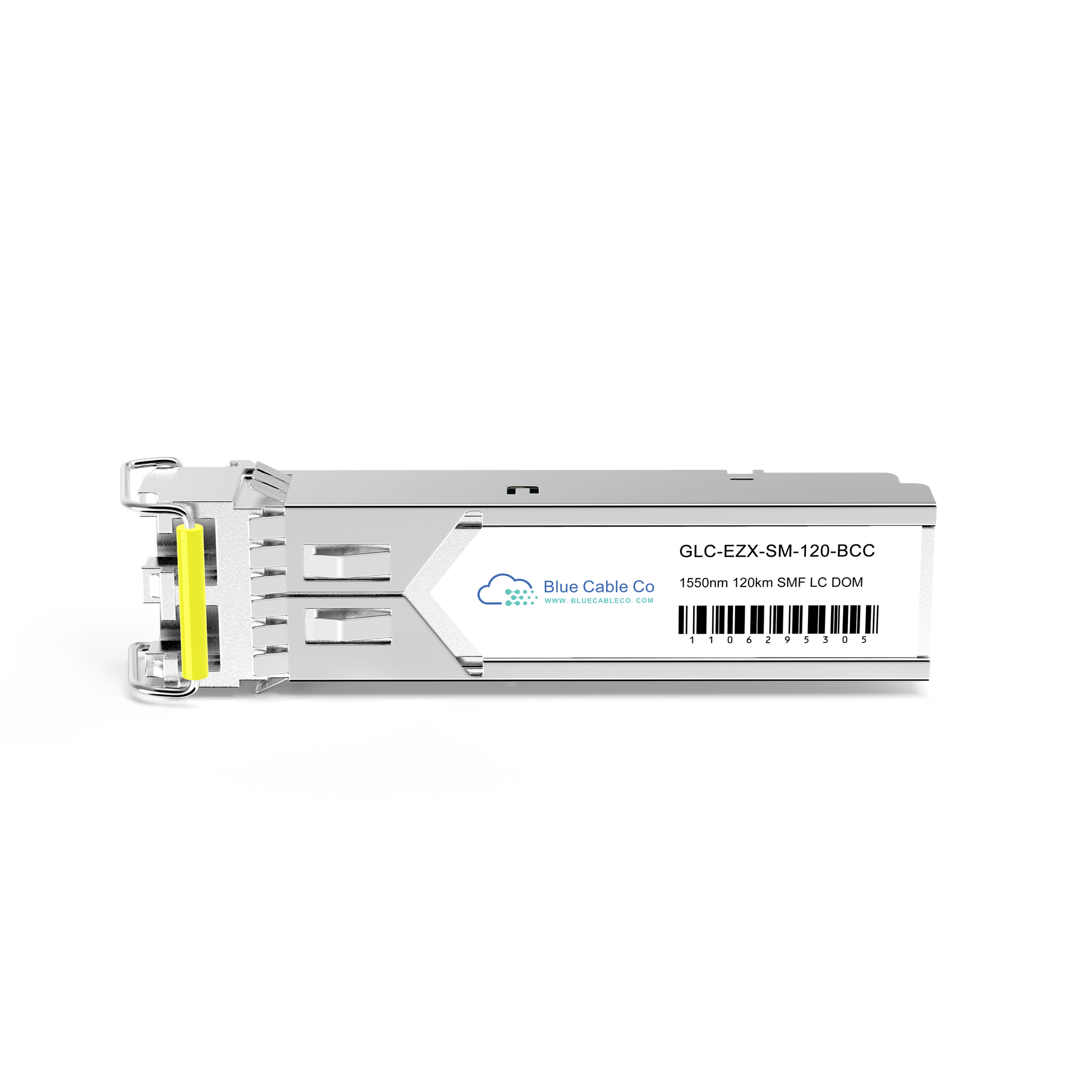

• Silver metallic cisco compatible 1gb single-mode sfp transceiver with yellow latch and model glc-ezx-sm-120-bcc label
1 1

Blue Cable Co

GLC-EZX-SM-120-BCC | Cisco Compatible 1GB Single-Mode 120km SFP (1000BASE-EZX)

GLC-EZX-SM-120-BCC

Stock Status: Enquire

$247.50 AUD
$247.50 AUD
$247.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The GLC-EZX-SM-120-BCC is a Cisco compatible 1GB single-mode SFP transceiver rated for links up to 120km over 9/125µm SMF fibre. Fitted with a 1550nm DFB laser transmitter and APD receiver, it delivers a 32dB link budget suitable for metro and access network applications. The module is plug-and-play, hot-pluggable, and ships with DDM support for real-time monitoring of optical parameters. Every unit is tested in Blue Cable Co's state of the art lab in Sydney to ensure compatibility with Cisco platforms.

  • Cisco compatible drop-in replacement for GLC-EZX-SM-120 applications
  • 1.25Gb/s data rate over single-mode fibre, up to 120km reach
  • 1550nm DFB laser transmitter with APD receiver and 32dB link budget
  • Hot-pluggable SFP form factor with duplex LC connector
  • DDM/DOM support compliant with SFF-8472 for live monitoring of temperature, voltage, bias current, and optical power
  • Available in commercial (0 to 70°C), extended (-5 to 85°C), and industrial (-40 to 85°C) temperature variants
  • RoHS compliant and lead free
  • 5-year advanced hardware replacement warranty backed by Blue Cable Co

Features

- Cisco compatible 1GB single-mode SFP — plug-and-play replacement for GLC-EZX-SM-120 applications
- Up to 120km reach on 9/125µm single-mode fibre with a 32dB link budget
- 1550nm DFB laser transmitter paired with an APD receiver for long-reach performance
- Hot-pluggable SFP with duplex LC connector for straightforward installation
- DDM/DOM support (SFF-8472) for real-time monitoring of optical power, temperature, voltage, and bias current
- Available in commercial, extended, and industrial operating temperature variants
- RoHS compliant and lead free
- Tested in Blue Cable Co's Sydney lab for Cisco platform compatibility
- Backed by a 5-year advanced hardware replacement warranty from Blue Cable Co

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-EZX-SM-120-BCC
Reference SKU: GLC-EZX-SM-120
Compatibility: Cisco compatible
Form Factor: SFP
Data Rate: 1.25 Gb/s
Ethernet Standard: 1000BASE-EZX
Wavelength: 1550nm (typical); 1530–1570nm range
Fibre Type: Single-Mode (9/125µm SMF)
Connector Type: Duplex LC
Max Reach: Up to 120km (per datasheet, depends on fibre and link conditions)
Total System Link Budget: 32dB
DOM/DDM Support: Yes, SFF-8472 compliant
Operating Temperature: Commercial 0 to +70°C / Extended -5 to +85°C / Industrial -40 to +85°C
Power Supply: +3.3V, max 1W
RoHS Compliant: Yes
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)

FAQs

Q1: Is this a drop-in replacement for the Cisco GLC-EZX-SM-120?
A1: Yes. The GLC-EZX-SM-120-BCC is designed as a plug-and-play compatible replacement for applications specifying the GLC-EZX-SM-120. It uses the same SFP form factor, duplex LC connector, and 1550nm single-mode optics, and requires no configuration changes to install.

Q2: How was this transceiver tested for Cisco compatibility?
A2: Every GLC-EZX-SM-120-BCC unit is tested in Blue Cable Co's state of the art lab in Sydney, Australia, to verify compatibility with Cisco platforms prior to despatch.

Q3: Which temperature rating do I need?
A3: Three variants are available: commercial (0 to +70°C), extended (-5 to +85°C), and industrial (-40 to +85°C). Select the variant that matches your deployment environment. Contact Blue Cable Co if you are unsure which applies to your equipment.

Q4: Can this transceiver be used with vendors other than Cisco?
A4: The GLC-EZX-SM-120-BCC can be recoded for compatibility with other supported vendor platforms including Arista, Aruba, Dell, Fortinet, Juniper, Meraki, Moxa, NVIDIA, Palo Alto, and Sophos. Contact Blue Cable Co to arrange the correct coding for your platform.

Q5: Does this module support digital diagnostic monitoring?
A5: Yes. The module supports DDM/DOM in compliance with SFF-8472, providing real-time visibility into transceiver temperature, supply voltage, laser bias current, and transmit and receive optical power levels.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney
