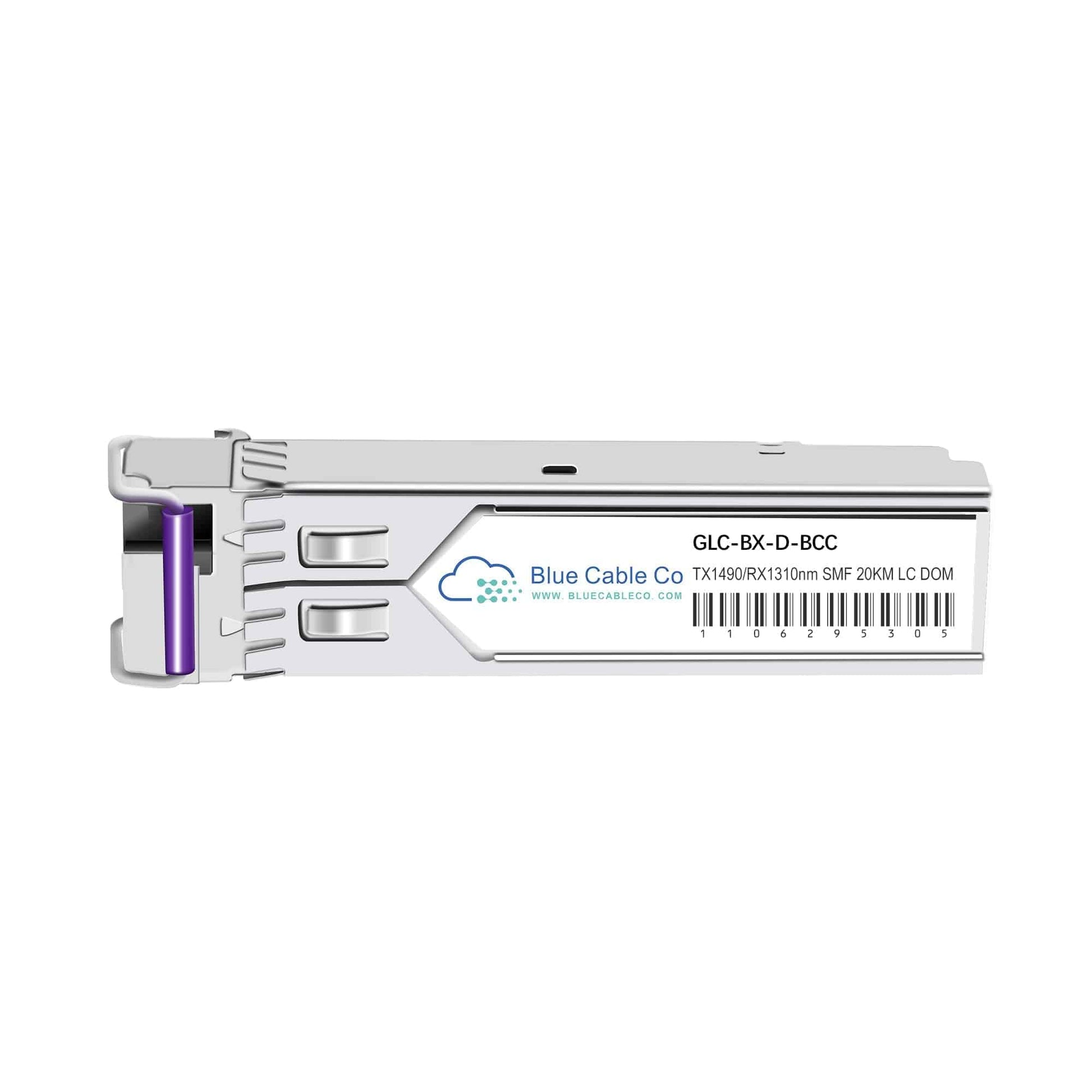

• Cisco Compatible GLC-BX-D-BCC 1GB BiDi SFP Transceiver with purple fiber
1 1

Blue Cable Co

GLC-BX-D-BCC | Cisco Compatible 1GB BiDi Transceiver - 10km (1000BASE-BX-D)

GLC-BX-D-BCC

13 in stock

$55.99 inc. GST
$50.90 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The GLC-BX-D-BCC is a drop-in compatible replacement for the Cisco GLC-BX-D. This bidirectional SFP transceiver is designed for plug-and-play operation in Cisco switches and routers with SFP ports. - IEEE 802.3ah 1000BASE-BX10-D compliance guarantees interoperability with standard-based 1000BASE-BX10-U devices - SFP form factor, 1.25 Gbps data rate, 1490nm transmit and 1310nm receive wavelengths over single-mode fibre - Up to 10km reach on a single strand of SMF using simplex LC connector, reducing fibre requirements by half - Digital Optical Monitoring (DOM) per SFF-8472 MSA provides real-time access to optical power, temperature, laser bias current and supply voltage - Must be paired with a complementary 1000BASE-BX10-U module (transmits 1310nm, receives 1490nm) for bidirectional communication

Features

• IEEE 802.3ah 1000BASE-BX10-D standard compliance ensures wavelength pairing with any compliant 1000BASE-BX10-U module for bidirectional transmission over a single fibre strand
• Integrated WDM splitter separates 1490nm transmit and 1310nm receive paths within the SFP housing, eliminating the need for external wavelength multiplexing hardware
• SFF-8472 MSA DOM capability exposes five diagnostic parameters in real-time: optical output power, received optical power, module temperature, transmitter bias current and supply voltage for proactive link monitoring
• Hot-swappable SFP form factor allows installation and removal without powering down the host switch or router, minimizing network disruption during maintenance
• Single-strand fibre architecture reduces fibre plant costs and complexity in point-to-point links by eliminating the second fibre strand required by conventional duplex optics
• Commercial temperature rating (0°C to 70°C) suits standard data centre and office environments; verify host platform thermal limits for high-density deployments
• Must be deployed with a 1000BASE-BX10-U counterpart at the opposite end; incorrect pairing (two BX-D or two BX-U modules) will result in no link due to wavelength mismatch

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: GLC-BX-D-BCC
Compatible Replacement For: GLC-BX-D
Compatibility: Cisco compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps (1000BASE-BX10-D)
Wavelength: 1490nm TX / 1310nm RX
Fibre Type: Single-Mode Fibre (SMF)
Connector Type: Simplex LC
DOM Support: Yes (SFF-8472 MSA compliant)
Standards: IEEE 802.3ah 1000BASE-BX10-D
Max Reach: Up to 10 km (per datasheet, subject to fibre quality and link budget)
Operating Temperature: 0°C to 70°C (commercial grade)

Also Known As

GLC-BX-D=

FAQs

Q: Will this work in place of the Cisco GLC-BX-D?
A: Yes. The GLC-BX-D-BCC is fully compliant with IEEE 802.3ah 1000BASE-BX10-D, matching the form factor, data rate, wavelengths and reach of the Cisco GLC-BX-D. It is plug-and-play in any Cisco switch or router with SFP ports that support 1000BASE-BX modules.

Q: Which Cisco platforms support this transceiver?
A: This transceiver is compatible with Cisco switches and routers that support SFP modules and 1000BASE-BX operation, including Catalyst 2960, 3560, 3650, 3750 series switches and ISR routers. Verify your specific platform supports BiDi SFPs and DOM if diagnostic monitoring is required.

Q: Why must this be paired with a 1000BASE-BX10-U module?
A: BiDi operation requires complementary wavelength pairing. The GLC-BX-D-BCC transmits at 1490nm and receives at 1310nm. The opposite-end module must transmit at 1310nm and receive at 1490nm (BX-U specification) to establish bidirectional communication over a single fibre strand. Two BX-D modules or two BX-U modules will not link.

Q: Can this transceiver operate over multi-mode fibre?
A: No. The 1490nm and 1310nm wavelengths are optimized for single-mode fibre only. Multi-mode fibre exhibits excessive attenuation at these wavelengths and will not support the 10km reach. Only use OS1 or OS2 grade single-mode fibre with simplex LC connectors for this transceiver.

Q: How do I monitor link health using DOM on this module?
A: If your Cisco platform supports SFF-8472 DOM, you can read real-time optical power levels (transmit and receive), temperature, laser bias current and supply voltage via CLI commands such as 'show interfaces transceiver' or equivalent. Monitor received power to detect fibre degradation before link failure, and compare transmit power against datasheet specifications to identify aging laser diodes.
