• Fortinet Compatible FR-TRAN-SX-BCC 1GB SX Transceiver Module
1 1

Blue Cable Co

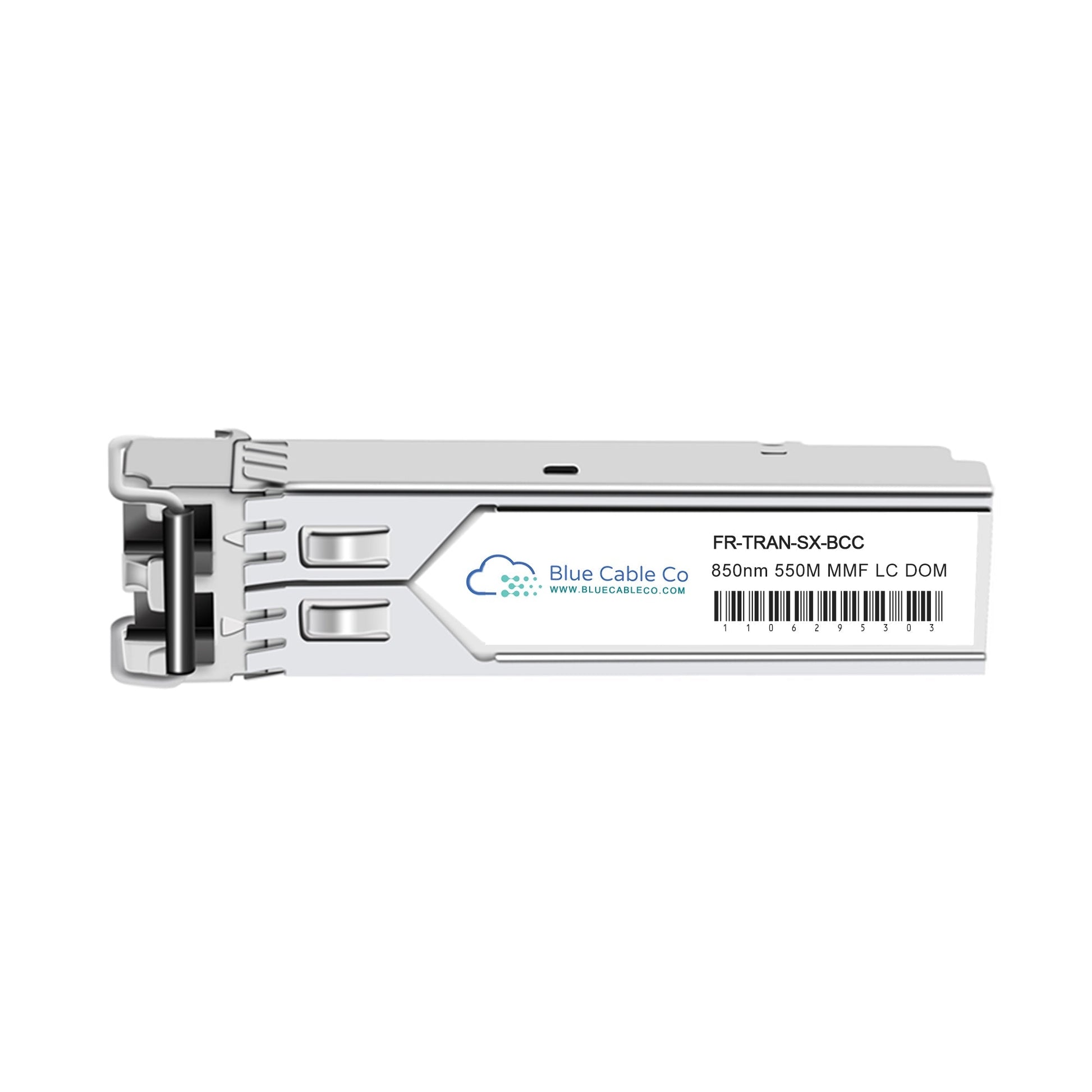

FR-TRAN-SX-BCC | Fortinet Compatible 1GB Multi-Mode 550m (1000BASE-SX)

FR-TRAN-SX-BCC

33 in stock

$49.50 inc. GST
$45.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FR-TRAN-SX-BCC is a drop-in compatible replacement for the Fortinet FR-TRAN-SX. This SFP transceiver provides plug-and-play 1000BASE-SX connectivity for Fortinet platforms with SFP and SFP/SFP+ slots. - IEEE 802.3z compliance guarantees interoperability with any 1000BASE-SX Gigabit Ethernet equipment - SFP form factor, 1.25 Gbps data rate, 850nm wavelength over multi-mode fibre - Up to 550m reach on OM2/OM3/OM4 fibre, 220m on OM1 fibre - Duplex LC connector with Digital Optical Monitoring (DOM) support - Industrial temperature range from -40°C to 85°C for ruggedized deployments - Hot-swappable design enables installation without network downtime

Features

• IEEE 802.3z standard compliance ensures the module will initialize and operate identically to OEM transceivers on any compliant Gigabit Ethernet switch or router without vendor lock-in
• VCSEL laser technology at 850nm optimizes cost and power efficiency for short-wavelength multi-mode transmission with lower complexity than long-reach single-mode alternatives
• Industrial temperature rating from -40°C to 85°C enables deployment in outdoor cabinets, factory floors, and other ruggedized Fortinet installations where commercial-grade optics cannot operate reliably
• Digital Optical Monitoring provides real-time access to temperature, voltage, transmit power, and receive power parameters for proactive link troubleshooting and preventive maintenance
• Hot-swappable SFP form factor allows module insertion and removal while the host system remains powered, eliminating scheduled downtime during upgrades or field replacements
• OM2, OM3, and OM4 fibre support at full 550m reach provides deployment flexibility across modern laser-optimized multi-mode plants with sufficient optical budget for typical enterprise and data centre topologies

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FR-TRAN-SX-BCC
Compatible Replacement For: FR-TRAN-SX
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gbps
Wavelength: 850nm
Fibre Type: Multi-mode (MMF)
Connector Type: Duplex LC
DOM Support: Yes
Standards: IEEE 802.3z, SFP MSA
Max Reach: 550m on OM2/OM3/OM4, 220m on OM1
Operating Temperature: -40°C to 85°C (industrial)

FAQs

Q: Will this work in place of the Fortinet FR-TRAN-SX?
A: Yes. This transceiver is fully compatible with the FR-TRAN-SX specification. It conforms to IEEE 802.3z for 1000BASE-SX, operates at 1.25 Gbps over 850nm multi-mode fibre, and uses the SFP form factor. It is plug-and-play compatible with Fortinet platforms that support the FR-TRAN-SX.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver works in Fortinet systems with SFP or SFP/SFP+ slots that support 1000BASE-SX optics. The FR-series is designed for ruggedized Fortinet products. Verify your platform has an SFP slot and supports Gigabit Ethernet over multi-mode fibre at 850nm.

Q: What fibre types and distances does this module support?
A: The FR-TRAN-SX-BCC supports OM1 (62.5µm) multi-mode fibre up to 220m, and OM2/OM3/OM4 (50µm) multi-mode fibre up to 550m. The 850nm VCSEL transmitter is optimized for multi-mode fibre. Single-mode fibre is not supported. Distance is subject to fibre quality, connector cleanliness, and link loss budget.

Q: Can this transceiver operate in extreme temperatures?
A: Yes. This module is rated for industrial temperature operation from -40°C to 85°C. This makes it suitable for outdoor enclosures, factory environments, and other ruggedized Fortinet deployments. The FR-series designation from Fortinet indicates support for wider thermal ranges compared to standard commercial-grade transceivers rated 0°C to 70°C.

Q: How do I access DOM data from this transceiver?
A: This transceiver supports Digital Optical Monitoring per SFF-8472. DOM parameters including temperature, supply voltage, transmit power, receive power, and laser bias current are accessible via the host platform CLI or management interface. Fortinet systems typically expose DOM readings through the CLI with commands specific to the platform model and FortiOS version.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney

Cisco sfp-10g-sr transceiver module with metallic housing and a white label displaying serial number, model details, and regulatory markings.
Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
Blue Cable Co
Cisco

Tested on real vendor hardware in Sydney

Every Blue Cable Co transceiver is coded for your platform and tested in our Sydney test rack on real vendor switches and firewalls before it ships. We check it is recognised and links up the same way the OEM optic does, so you don't find an "unsupported transceiver" error after it's installed.

Brands tested: Cisco, Meraki, Arista, Aruba, HPE, Juniper, Dell, Fortinet, Palo Alto, Check Point, Sophos, Moxa and NVIDIA. Speeds up to 100Gb.
