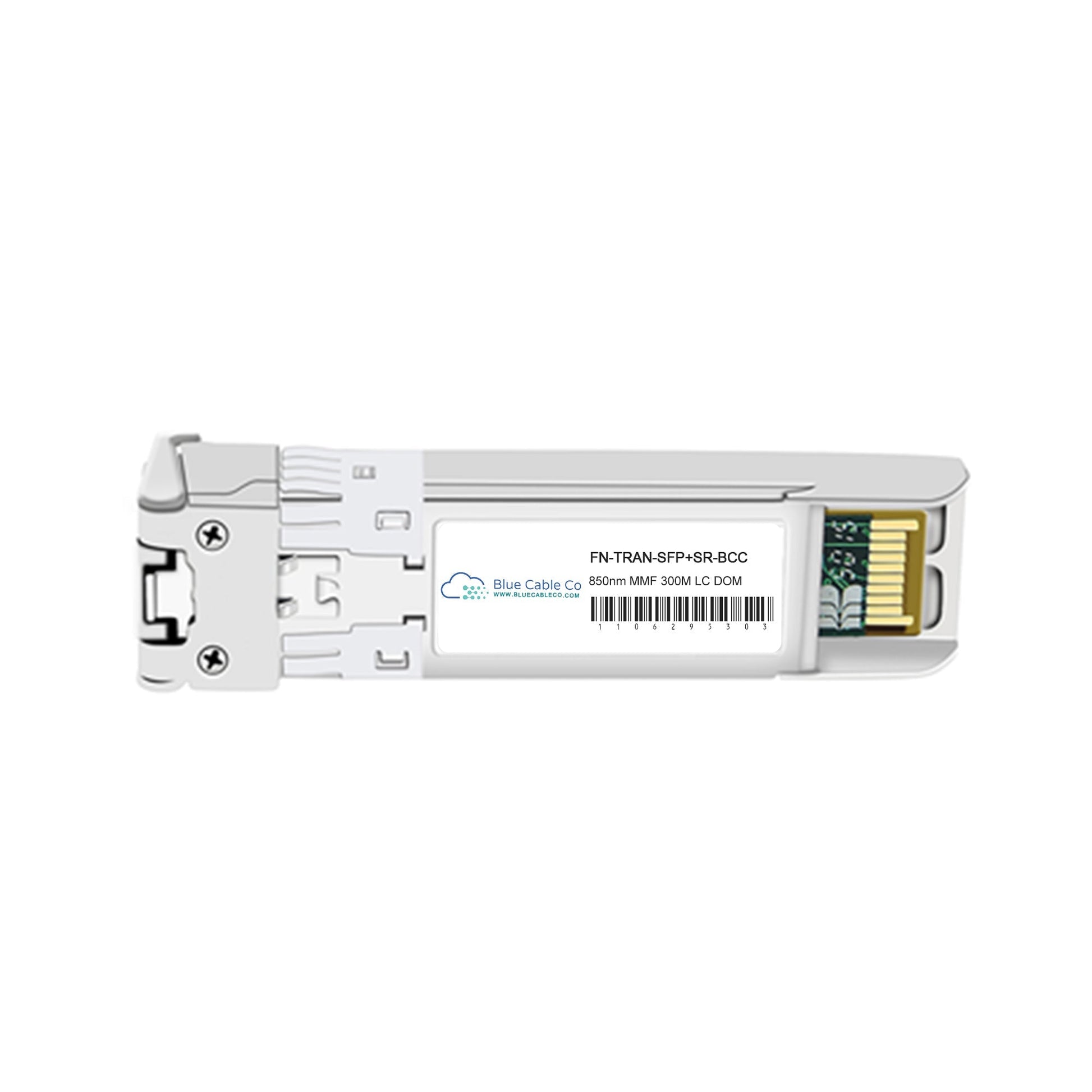

• Fortinet Compatible FN-TRAN-SFP+SR-BCC 10G SFP+ SR Transceiver Module
1 1

Blue Cable Co

FN-TRAN-SFP+SR-BCC | Fortinet Compatible 10GB Multi-Mode 300m (10GBASE-SR)

FN-TRAN-SFP+SR-BCC

10 in stock

$62.70 AUD
$62.70 AUD
$62.70 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The FN-TRAN-SFP+SR-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SFP+SR. This plug-and-play SFP+ transceiver integrates seamlessly with Fortinet systems that have SFP+ slots. - IEEE 802.3ae 10GBASE-SR compliance ensures standard 10 Gigabit Ethernet interoperability over multimode fibre - SFP+ form factor, 10.3 Gbps data rate, 850nm wavelength, duplex LC connector - Supports 300m reach over OM3 fibre and up to 400m over OM4 fibre - Digital diagnostics monitoring (DOM) via SFF-8472 for real-time parameter visibility - Commercial temperature range 0 to 70 degrees Celsius - Compliant with SFP+ MSA standards SFF-8431 and SFF-8432

Features

• IEEE 802.3ae 10GBASE-SR compliance guarantees standard physical layer behaviour for 10 Gigabit Ethernet over multimode fibre, ensuring interoperability with any standards-compliant SFP+ host port
• VCSEL laser technology at 850nm enables efficient short-reach transmission with lower power dissipation and cost compared to longer-wavelength solutions
• Reach varies with fibre grade: 300m over OM3 (2000MHz·km modal bandwidth) and 400m over OM4 (4700MHz·km), determined by optical budget and fibre attenuation
• Digital diagnostics monitoring per SFF-8472 provides access to temperature, voltage, transmit power, receive power, and bias current for proactive link health management
• Hot-pluggable SFP+ module allows insertion and removal without powering down the host system, supporting zero-downtime maintenance and deployment
• Commercial temperature rating (0 to 70°C) suits controlled environments including data centre racks, enterprise wiring closets, and indoor telecom applications

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SFP+SR-BCC
Compatible Replacement For: FN-TRAN-SFP+SR
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3 Gbps
Wavelength: 850nm
Fibre Type: Multi-Mode (MMF)
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae (10GBASE-SR), SFF-8431, SFF-8432
Max Reach: 300m (OM3), 400m (OM4)
Operating Temperature: 0 to 70 degrees Celsius
Power Dissipation: 600mW (typical)

FAQs

Q: Will this work in place of the Fortinet FN-TRAN-SFP+SR?
A: Yes. The FN-TRAN-SFP+SR-BCC is a plug-and-play replacement for the Fortinet FN-TRAN-SFP+SR. It shares the same SFP+ form factor, 10.3 Gbps data rate, 850nm wavelength, and IEEE 802.3ae 10GBASE-SR compliance, ensuring functional equivalence in Fortinet equipment with SFP+ ports.

Q: Which Fortinet platforms support this transceiver?
A: This module works in any Fortinet system with SFP+ or dual-speed SFP/SFP+ slots. The host port must support 10GBASE-SR signalling and IEEE 802.3ae standard. Confirm your device has an SFP+ slot rated for 10 Gigabit Ethernet operation.

Q: What determines the actual reach over multimode fibre?
A: Reach depends on fibre modal bandwidth and insertion loss. OM3 fibre (2000MHz·km) supports 300m, OM4 (4700MHz·km) supports 400m. Actual distance may be limited by connector loss, patch panel loss, and fibre cleanliness. The module optical budget is typically 4.6dB minimum.

Q: Can I monitor link health and optical parameters in real time?
A: Yes. This module implements digital diagnostics monitoring per SFF-8472. You can read temperature, supply voltage, transmit optical power, receive optical power, and laser bias current via the two-wire serial interface. Fortinet platforms typically expose these parameters via CLI or management interface.

Q: Does this module support operation at 1 Gigabit Ethernet speeds?
A: The chipset supports data rates from 1.25 to 10.31 Gbps, covering Gigabit Ethernet (1.25 Gbps) and 10 Gigabit Ethernet (10.31 Gbps). Actual speed support depends on the host port configuration. If the Fortinet port is dual-speed (SFP/SFP+), the module can operate at 1GbE or 10GbE as negotiated by the link.
