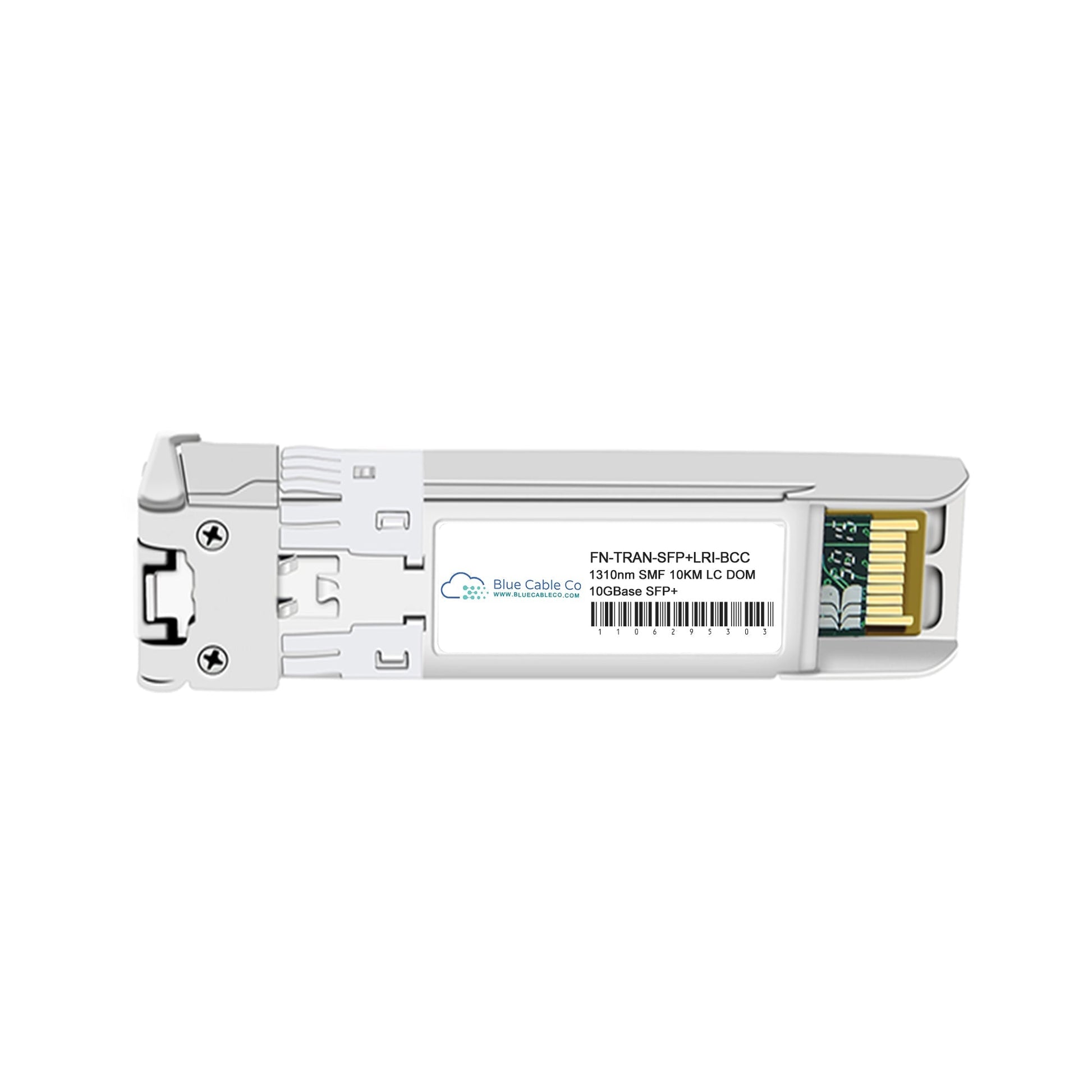

• Fortinet Compatible 10G SFP+ LRI Optical Transceiver Module with LC Connector
1 1

Blue Cable Co

FN-TRAN-SFP+LRI-BCC | Fortinet Compatible 10GB Single-Mode 10km (10GBASE-LR) Rugged / Industrial

FN-TRAN-SFP+LRI-BCC

Stock Status: Enquire

$95.70 inc. GST
$87.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FN-TRAN-SFP+LRI-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SFP+LRI. Plug-and-play operation with Fortinet systems equipped with SFP+ slots, offering 10 Gigabit Ethernet performance with an extended industrial temperature rating. - IEEE 802.3ae 10GBASE-LR compliance ensures interoperability with standards-based infrastructure - SFP+ hot-pluggable form factor, 10.3 Gbps data rate, 1310nm wavelength, 10km reach over single-mode fibre via duplex LC connector - Industrial temperature range (-40°C to 85°C) designed for harsh environments including outdoor, railway, oil and gas, and industrial automation deployments - Digital Diagnostics Monitoring (DDM) for real-time visibility into temperature, voltage, transmit bias current, and optical power levels - Hot-swap capability with MSA-compliant SFP+ footprint for seamless field deployment and maintenance

Features

• IEEE 802.3ae 10GBASE-LR compliance guarantees standards-based operation at 10.3 Gbps over single-mode fibre with 1310nm optical signalling and up to 10km reach per datasheet specifications
• Industrial temperature qualification (-40°C to 85°C) extends deployment scope to outdoor enclosures, railway trackside, substations, mining environments, and manufacturing floor installations where commercial-grade (0°C to 70°C) modules cannot operate reliably
• Digital Diagnostics Monitoring delivers real-time optical power (Tx and Rx), temperature, supply voltage, and transmit bias current via the 2-wire serial interface per SFF-8472 specification, enabling proactive link health assessment and troubleshooting
• Hot-swap capability with MSA-compliant electrical and mechanical interfaces allows field insertion and removal without powering down the host platform, reducing planned maintenance windows and unplanned downtime
• Single-mode 1310nm wavelength pairing optimizes for OS2 fibre infrastructure and provides headroom for extended reach deployments where fibre quality, splice loss, or connector insertion loss may reduce nominal 10km maximum distance
• Low power dissipation under 1W supports dense SFP+ line card configurations without thermal throttling or excessive cooling requirements in sealed industrial enclosures

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SFP+LRI-BCC
Compatible Replacement For: FN-TRAN-SFP+LRI
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10.3 Gbps
Protocol Standard: 10GBASE-LR
IEEE Standard: 802.3ae
Wavelength: 1310nm
Fibre Type: Single-Mode (SMF)
Connector Type: Duplex LC
Max Reach: Up to 10km
DOM Support: Yes (Digital Diagnostics Monitoring)
Operating Temperature: -40°C to 85°C (Industrial)
Power Dissipation: <1W
Hot-Pluggable: Yes

FAQs

Q: Will this work in place of the FN-TRAN-SFP+LRI?
A: Yes. This module is a drop-in replacement for the Fortinet FN-TRAN-SFP+LRI, delivering identical 10GBASE-LR performance at 10.3 Gbps over single-mode fibre using 1310nm wavelength and duplex LC connectors. IEEE 802.3ae compliance and industrial temperature rating (-40°C to 85°C) match the OEM specification. It is plug-and-play compatible with Fortinet platforms equipped with SFP+ slots.

Q: Which Fortinet platforms support this transceiver?
A: This module is compatible with any Fortinet system featuring SFP+ slots, including FortiGate security appliances and FortiSwitch models with 10 Gigabit SFP+ interfaces. Host platform must support 10GBASE-LR at the hardware and software level. Verify your specific model documentation to confirm SFP+ slot availability.

Q: What fibre type and quality is required for 10km reach?
A: This module requires OS2 single-mode fibre (9/125µm) to achieve the 10km maximum reach specification. Actual distance depends on total link loss budget, which includes fibre attenuation, splice loss, and connector insertion loss. For deployments approaching 10km, ensure fibre infrastructure meets minimum optical return loss and maximum insertion loss per IEEE 802.3ae 10GBASE-LR guidelines.

Q: How does the industrial temperature rating affect deployment flexibility?
A: The -40°C to 85°C operating range allows installation in uncontrolled environments where ambient temperature exceeds the 0°C to 70°C range of commercial-grade transceivers. This includes outdoor telecom cabinets, railway lineside enclosures, substation control networks, and industrial plant floors. The extended thermal specification ensures stable link operation during extreme seasonal temperature swings without requiring climate control.

Q: Can I monitor link health and optical power levels with this transceiver?
A: Yes. This module supports Digital Diagnostics Monitoring (DDM) per SFF-8472, providing access to real-time transmit optical power, receive optical power, temperature, supply voltage, and transmit bias current. These parameters are accessible through the Fortinet platform CLI or management interface, enabling proactive link performance monitoring, fault isolation, and predictive maintenance workflows without test equipment.
