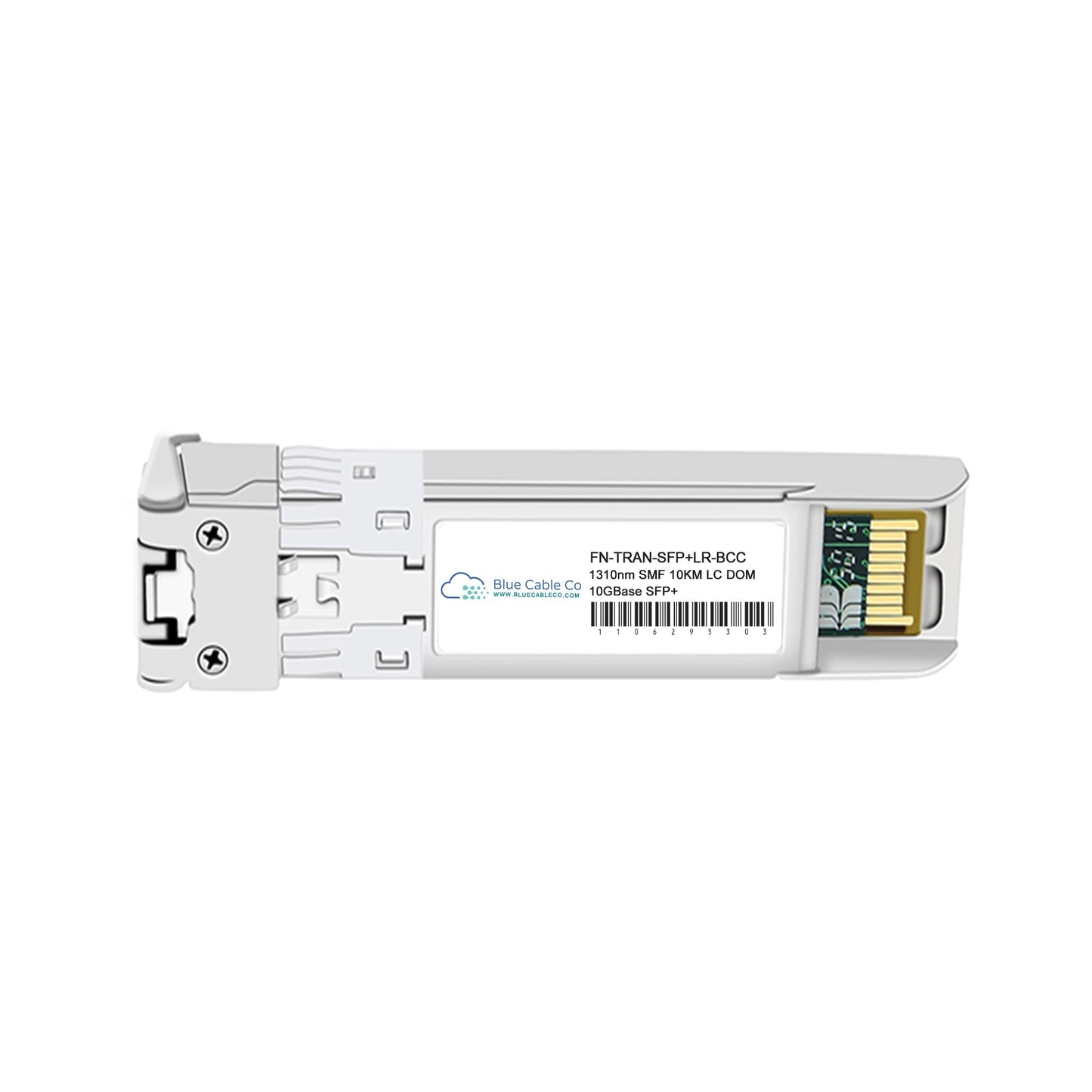

• Fortinet Compatible FN-TRAN-SFP+LR-BCC 10G SFP+ Optical Transceiver Module
1 1

Blue Cable Co

FN-TRAN-SFP+LR-BCC | Fortinet Compatible 10GB Single-Mode 10km (10GBASE-LR)

FN-TRAN-SFP+LR-BCC

43 in stock

$90.20 inc. GST
$82.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FN-TRAN-SFP+LR-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SFP+LR. This transceiver operates as a plug-and-play module in Fortinet FortiGate firewalls and FortiSwitch platforms with SFP+ slots. - IEEE 802.3ae 10GBASE-LR compliance ensures interoperability with standards-compliant 10 Gigabit Ethernet equipment across multi-vendor environments - SFP+ form factor, 10 Gbps data rate, 1310nm wavelength, single-mode fibre with duplex LC connector - Transmission reach up to 10km over OS1/G.652 single-mode fibre with 6dB minimum link budget - Digital Diagnostic Monitoring (DDM) support via SFF-8472 interface for real-time monitoring of optical power, temperature, bias current, and voltage - Hot-swappable design with 850mW typical power dissipation and 0 to 70 degrees Celsius operating temperature range

Features

• IEEE 802.3ae compliance guarantees interoperability with any standards-compliant 10GBASE-LR equipment, enabling seamless integration into multi-vendor 10 Gigabit Ethernet networks without vendor lock-in
• 1310nm DFB laser transmitter paired with PIN photodiode receiver delivers reliable long-reach optical performance over standard G.652 single-mode fibre infrastructure
• 6dB minimum link budget accommodates typical insertion loss budgets for 10km single-mode links including connector pairs, splices, and fibre attenuation without requiring margin engineering
• SFF-8472 Digital Diagnostic Monitoring exposes five real-time parameters (TX/RX optical power, temperature, bias current, supply voltage) via I2C interface for proactive link health monitoring and troubleshooting
• Hot-swap capable design allows field insertion and removal without powering down the host system, reducing maintenance windows and service interruption during transceiver replacement or upgrades
• 850mW typical power dissipation and 0 to 70 degrees Celsius operating range suit standard data centre and enterprise wiring closet thermal environments without special cooling requirements

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SFP+LR-BCC
Compatible Replacement For: FN-TRAN-SFP+LR
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10 Gbps (10.3125 Gbps line rate)
Standards: IEEE 802.3ae 10GBASE-LR
Wavelength: 1310nm
Fibre Type: Single-Mode (SMF)
Connector Type: Duplex LC
Max Reach: Up to 10km over OS1/G.652 single-mode fibre (per datasheet, subject to fibre and link conditions)
Link Budget: 6dB minimum
DOM Support: Yes (SFF-8472 compliant)
Power Dissipation: 850mW typical
Operating Temperature: 0°C to 70°C
Hot Swappable: Yes

FAQs

Q: Will this work in place of the Fortinet FN-TRAN-SFP+LR?
A: Yes. This transceiver is a plug-and-play replacement for the FN-TRAN-SFP+LR. It conforms to the IEEE 802.3ae 10GBASE-LR standard, uses the same SFP+ form factor, operates at 10 Gbps over single-mode fibre at 1310nm with duplex LC connector, and provides identical 10km reach. It will be recognised by FortiGate and FortiSwitch platforms with SFP+ slots without requiring configuration changes.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver is compatible with Fortinet FortiGate firewalls and FortiSwitch models equipped with SFP+ ports. Confirmed compatible FortiSwitch models include 124F, 148F, 548D, 3032E, and 3048E. FortiGate models with SFP+ interfaces also support this module. FortiOS does not require CLI override commands to enable third-party SFP+ modules in these platforms.

Q: What single-mode fibre types can this transceiver use for 10km reach?
A: This transceiver operates over ITU-T G.652 compliant single-mode fibre, also designated as OS1 or OS2 depending on attenuation specification. G.652 is the industry-standard single-mode fibre type with 9/125 micron core/cladding diameter. The 1310nm wavelength and 6dB link budget accommodate typical insertion loss for patch cords, splices, and fibre attenuation over 10km distances without additional inline amplification.

Q: How do I access the Digital Diagnostic Monitoring parameters?
A: DDM parameters are accessible via the SFF-8472 compliant I2C interface on memory address A2h. FortiOS exposes these diagnostics through CLI commands (diagnose hardware deviceinfo nic) or the GUI under Network > Interfaces. You can monitor transmit optical power, receive optical power, laser bias current, transceiver temperature, and supply voltage in real time for link health assessment and troubleshooting.

Q: Can I mix this 10GBASE-LR transceiver with other 10G optical types on the same switch?
A: Yes. Each SFP+ port operates independently, so you can use 10GBASE-LR (1310nm, 10km SMF), 10GBASE-SR (850nm, multi-mode), or other 10G optics in different ports on the same FortiSwitch or FortiGate without compatibility issues. Link parameters such as wavelength and fibre type are defined per transceiver pair, not globally. Ensure the far-end transceiver matches the wavelength and fibre type for each individual link.
