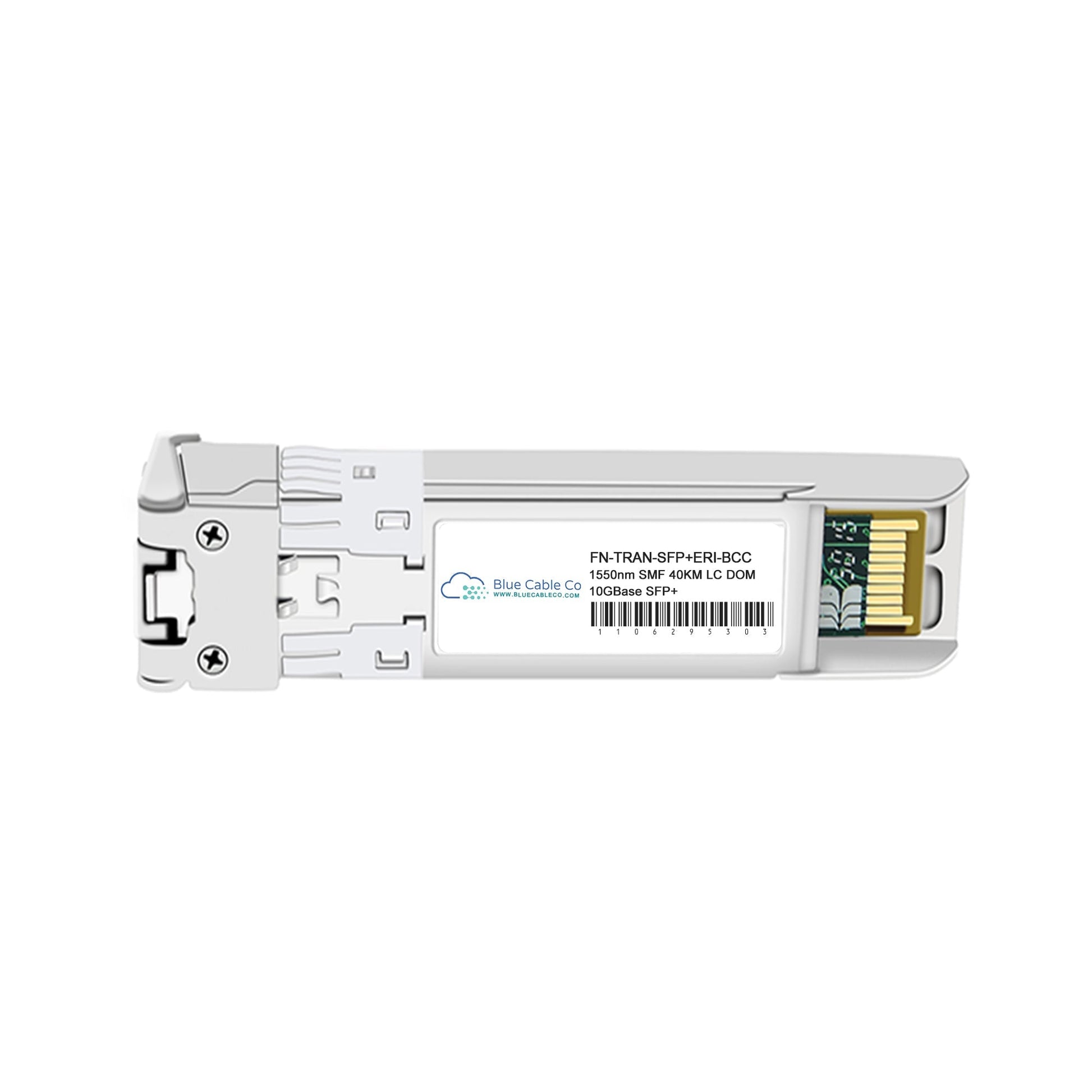

• Fortinet Compatible 10GBASE-ER SFP+ Transceiver Module
1 1

Blue Cable Co

FN-TRAN-SFP+ERI-BCC | Fortinet Compatible 10GB Single-Mode ER - 40km (10GBASE-ER) Rugged / Industrial

FN-TRAN-SFP+ERI-BCC

Stock Status: Enquire

$658.90 inc. GST
$599.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FN-TRAN-SFP+ERI-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-SFP+ERI. This rugged-temperature SFP+ module operates plug-and-play in FortiGate and FortiSwitch systems with SFP+ slots. - IEEE 802.3ae 10GBASE-ER compliance guarantees interoperability across 10 Gigabit Ethernet infrastructure over single-mode fibre - SFP+ form factor, 10.3 Gbps data rate, 1550nm wavelength, duplex LC connector, up to 40km reach over OS2 single-mode fibre - Industrial temperature range of -40°C to 85°C for deployment in harsh environments and outdoor enclosures - Digital Diagnostics Monitoring (DDM) support for real-time optical parameter visibility via management interface - Hot-pluggable design for zero-downtime installation and replacement in FortiGate firewalls and FortiSwitch platforms

Features

• IEEE 802.3ae 10GBASE-ER compliance ensures electrical and optical conformance for multi-vendor single-mode 10 Gigabit Ethernet deployments over standard G.652 and OS2 fibre plant
• 1550nm wavelength with cooled EML (Electroabsorption Modulated Laser) transmitter and APD receiver architecture delivers the link budget required for 40km extended-reach applications
• Industrial temperature range (-40°C to 85°C) qualifies this module for outdoor cabinets, uncontrolled equipment rooms, and extreme-climate deployments where commercial-grade optics cannot operate
• DDM functionality exposes transmit power, receive power, bias current, module temperature, and supply voltage via the SFF-8472 two-wire serial interface for proactive fault isolation
• Hot-swap capability allows field insertion and removal without powering down the host system, reducing maintenance windows and improving operational availability
• 10.3125 Gbps line rate supports native 10 Gigabit Ethernet framing and can operate in systems designed for 10GBASE-ER / 10GBASE-EW specifications
• Single-mode fibre transmission over duplex LC reduces modal dispersion, enabling consistent 40km reach performance across OS2 9/125µm fibre infrastructure

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-SFP+ERI-BCC
Compatible Replacement For: FN-TRAN-SFP+ERI
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)

Form Factor: SFP+
Data Rate: 10.3125 Gbps
Standards: IEEE 802.3ae 10GBASE-ER
Wavelength: 1550nm
Fibre Type: Single-Mode (SMF)
Connector Type: Duplex LC
Max Reach: Up to 40km over OS2 single-mode fibre
DOM Support: Yes (Digital Diagnostics Monitoring)
Power Dissipation: 1.5W typical
Operating Temperature: -40°C to 85°C (Industrial/Rugged)

FAQs

Q: Will this work in place of the Fortinet FN-TRAN-SFP+ERI?
A: Yes. This module is a direct replacement for the FN-TRAN-SFP+ERI. It shares the same SFP+ form factor, 10.3125 Gbps data rate, 1550nm wavelength, 40km reach, and IEEE 802.3ae 10GBASE-ER compliance. The module is plug-and-play in FortiGate and FortiSwitch systems with SFP+ slots and operates across the same -40°C to 85°C industrial temperature range.

Q: Which Fortinet platforms support this industrial-temperature 10GBASE-ER module?
A: This module is designed for Fortinet systems with SFP+ slots, including FortiGate firewalls and FortiSwitch models. The FN-TRAN-SFP+ERI is listed in the Fortinet Transceivers datasheet as compatible with systems supporting SFP+ slots. Confirm your specific platform supports 10GBASE-ER optics and SFP+ electrical specifications before deployment.

Q: Why is the 1550nm wavelength used for this 40km reach module instead of 1310nm?
A: The 1550nm wavelength operates in the low-loss window of single-mode fibre (attenuation around 0.2 dB/km versus 0.35 dB/km at 1310nm), which is critical for achieving 40km reach. Combined with an EML laser transmitter and higher link budget, 1550nm enables extended-reach 10GBASE-ER applications without inline amplification. The 10GBASE-LR standard uses 1310nm but is limited to 10km.

Q: Can this module operate in a standard commercial-temperature environment, or is the industrial range required?
A: This module will operate in standard data centre environments (0°C to 70°C) without issue. The industrial temperature range (-40°C to 85°C) is a design qualification that extends operational capability to outdoor cabinets, hardened enclosures, and uncontrolled equipment rooms. If your deployment is indoors and climate-controlled, the commercial-grade FN-TRAN-SFP+ER (0°C to 70°C) is an alternative.

Q: What is the typical link budget and receiver sensitivity for this 10GBASE-ER module?
A: 10GBASE-ER modules typically provide a link budget of around 15 dB, with transmit power in the range of -2 to +4 dBm and receiver sensitivity better than -15.8 dBm. This budget accommodates 40km of OS2 fibre (approximately 8 dB attenuation at 0.2 dB/km) plus connector losses, splice losses, and margin for fibre aging. Exact parameters depend on implementation, but the IEEE 802.3ae specification defines minimum performance thresholds.
