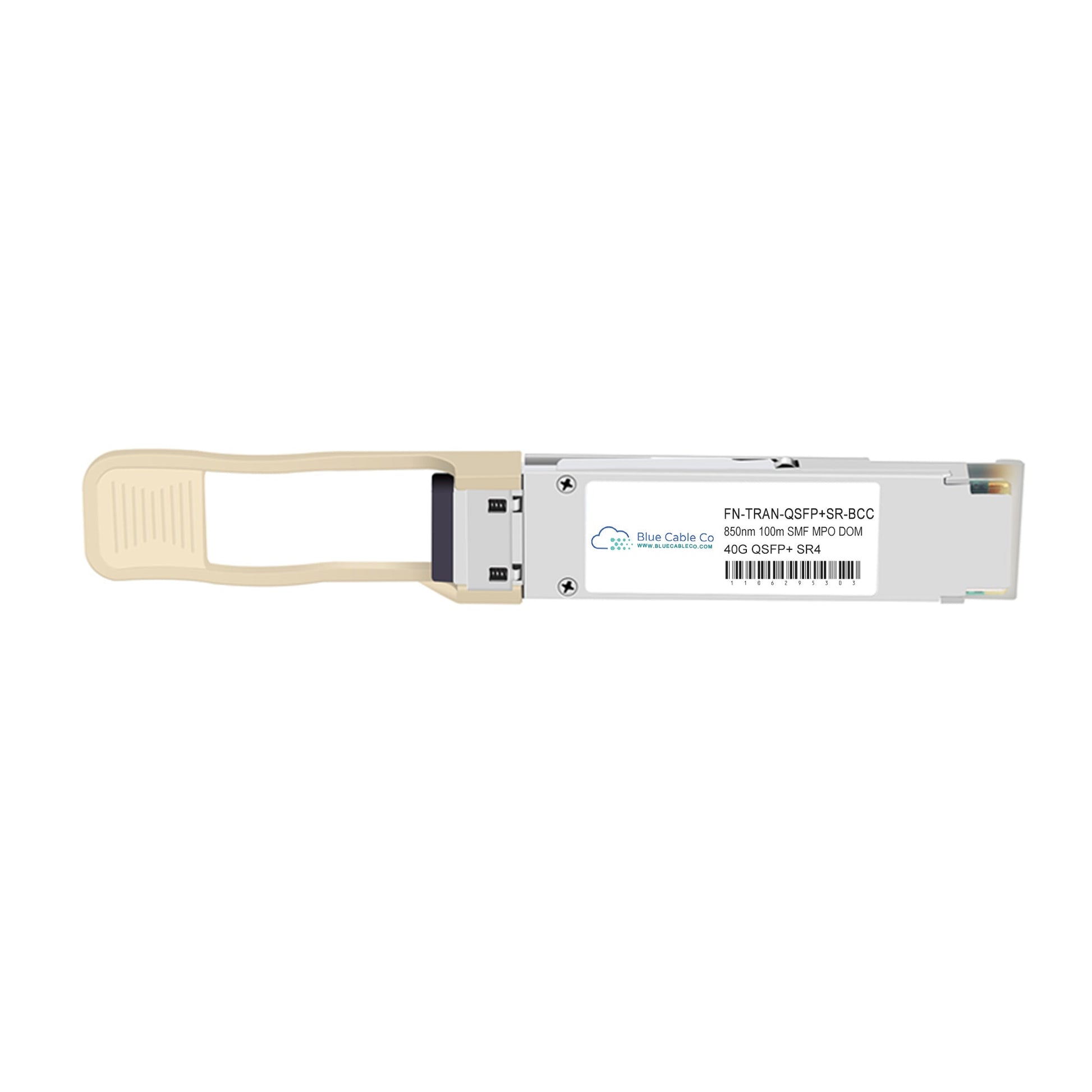

• Fortinet Compatible FN-TRAN-QSFP+SR-BCC 40G QSFP+ SR4 Transceiver Module
1 1

Blue Cable Co

FN-TRAN-QSFP+SR-BCC | Fortinet Compatible 40GB Multi-Mode 150m (40GBASE-SR4)

FN-TRAN-QSFP+SR-BCC

18 in stock

$212.30 inc. GST
$193.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FN-TRAN-QSFP+SR-BCC is a drop-in compatible replacement for the Fortinet FN-TRAN-QSFP+SR. This transceiver delivers plug-and-play 40 Gigabit Ethernet connectivity in systems with QSFP+ and QSFP28 slots from Fortinet. - IEEE 802.3ba 40GBASE-SR4 compliant, guaranteeing interoperability with all standard 40GBASE-SR4 interfaces across multi-vendor environments - QSFP+ form factor with MPO-12 connector, four parallel lanes at 850nm wavelength, each operating at 10.3125 Gbps for 40 Gbps aggregated throughput - 150m reach over OM4 multi-mode fibre (100m over OM3), using four-channel VCSEL array transmitter and PIN photodiode receiver - DOM support via I2C interface provides real-time monitoring of optical power, temperature, bias current, and supply voltage per QSFP+ MSA specification - Hot-swappable design enables installation and removal without system interruption, operating temperature range 0 to 70 degrees C - Tested in Sydney to confirm Fortinet QSFP+ and QSFP28 slot compatibility

Features

• IEEE 802.3ba 40GBASE-SR4 compliance ensures full interoperability with standard 40 Gigabit Ethernet equipment from any vendor, eliminating proprietary lock-in and enabling mixed-vendor deployments across data centre and campus networks
• Four independent parallel optical lanes operating at 10.3125 Gbps each, using 64B/66B line coding and four-channel 850nm VCSEL array for simultaneous transmit and receive over 12-strand MPO ribbon cable
• Hot-swappable QSFP+ MSA form factor allows installation into live QSFP+ and QSFP28 slots without powering down the host system, supporting field maintenance and network expansion without service interruption
• Digital Diagnostic Monitoring accessible via I2C delivers per-channel optical power levels, module temperature, laser bias current, and supply voltage in real time for proactive link health assessment and troubleshooting
• OM3 and OM4 fibre support with laser-optimised multi-mode performance: 100m on OM3 (2000 MHz·km bandwidth) or 150m on OM4 (4700 MHz·km bandwidth), covering typical rack-to-rack and intra-building distances
• Standard 0 to 70 degrees C commercial operating range and single +3.3V power supply with typical power dissipation under 1.5W, suitable for controlled environment deployment in switches, routers, and data centre fabric infrastructure
• QSFP28 backward compatibility enables use in next-generation 100G-capable slots running at 40G speed, providing migration path flexibility and platform longevity

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: FN-TRAN-QSFP+SR-BCC
Compatible Replacement For: FN-TRAN-QSFP+SR
Compatibility: Fortinet compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: QSFP+
Data Rate: 40 Gbps (4 x 10.3125 Gbps)
Wavelength: 850nm
Fibre Type: Multi-mode (MMF)
Connector Type: MPO-12
DOM Support: Yes (DDM/DOM via I2C)
Standards: IEEE 802.3ba 40GBASE-SR4, QSFP+ MSA
Max Reach: 150m on OM4, 100m on OM3 (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70 degrees C
Power Consumption: < 1.5W typical

FAQs

Q: Will this work in place of the Fortinet FN-TRAN-QSFP+SR?
A: Yes. This transceiver is engineered to the same IEEE 802.3ba 40GBASE-SR4 standard, uses the same QSFP+ form factor with MPO-12 connector, operates at the same 850nm wavelength, and delivers the same 40 Gbps data rate over multi-mode fibre. It is plug-and-play compatible and functions identically to the Fortinet original in systems with QSFP+ or QSFP28 slots.

Q: Which Fortinet platforms support this transceiver?
A: This transceiver works in any Fortinet system with QSFP+ or QSFP28 slots, as confirmed by the official Fortinet datasheet. Compatibility is determined by the physical slot type and IEEE 802.3ba support in the platform, not by specific model numbers. If your Fortinet device has a QSFP+ or QSFP28 port and supports 40 Gigabit Ethernet, this transceiver will operate correctly.

Q: What fibre type and reach does this transceiver support?
A: This is a multi-mode transceiver optimised for OM3 and OM4 fibre. It reaches 100 metres over OM3 fibre and 150 metres over OM4 fibre. The four parallel lanes at 850nm use VCSEL technology designed for laser-optimised multi-mode fibre only. Do not use this transceiver with single-mode fibre, as the wavelength, connector type, and power budget are incompatible.

Q: How does the four-lane architecture of 40GBASE-SR4 work?
A: 40GBASE-SR4 splits the 40 Gbps signal into four independent 10.3125 Gbps optical lanes, transmitted simultaneously over a 12-strand MPO ribbon cable (eight active fibres, four Tx and four Rx). Each lane uses 64B/66B encoding and an 850nm VCSEL transmitter. This parallel architecture avoids the complexity and cost of a single 40 Gbps serial lane, enables use of proven 10G-class optics, and permits 4x10G breakout applications when needed.

Q: Does this transceiver support Digital Diagnostic Monitoring and what parameters can I monitor?
A: Yes. This transceiver provides full DDM/DOM functionality per the QSFP+ MSA specification, accessible via the I2C interface. You can monitor per-channel transmitted and received optical power, module internal temperature, laser bias current for each of the four VCSEL channels, and supply voltage. Most network management systems with SNMP support can poll these parameters in real time for link health assessment and early fault detection.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% compatible with equipment from major vendors

Coded and tested in our state of the art lab in Sydney

Cisco sfp-10g-sr transceiver module with metallic housing and a white label displaying serial number, model details, and regulatory markings.
Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
Blue Cable Co
Cisco

Tested on real vendor hardware in Sydney

Every Blue Cable Co transceiver is coded for your platform and tested in our Sydney test rack on real vendor switches and firewalls before it ships. We check it is recognised and links up the same way the OEM optic does, so you don't find an "unsupported transceiver" error after it's installed.

Brands tested: Cisco, Meraki, Arista, Aruba, HPE, Juniper, Dell, Fortinet, Palo Alto, Check Point, Sophos, Moxa and NVIDIA. Speeds up to 100Gb.

  • 5 year replacement warranty
  • Sydney stock
  • Re-coding if you need it
