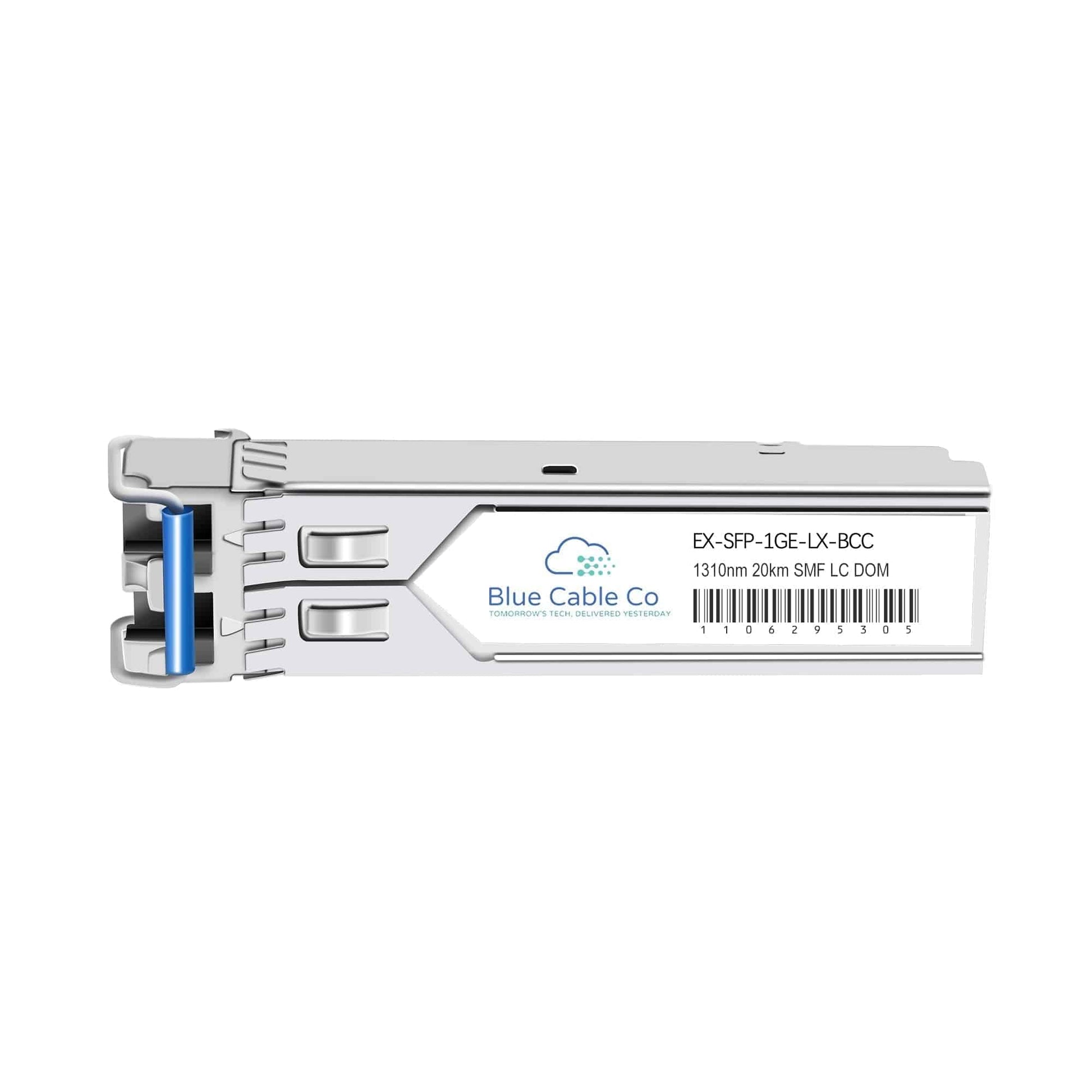

• Juniper Compatible EX-SFP-1GE-LX-BCC 1GB SFP Transceiver Module
1 1

Blue Cable Co

EX-SFP-1GE-LX-BCC | Juniper Compatible 1GB Single-Mode 10km (1000BASE-LX)

EX-SFP-1GE-LX-BCC

91 in stock

$49.28 inc. GST
$44.80 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The EX-SFP-1GE-LX-BCC is a drop-in compatible replacement for the Juniper EX-SFP-1GE-LX. This SFP transceiver provides plug-and-play compatibility with Juniper switching and routing platforms that support the 1000BASE-LX standard. - IEEE 802.3z 1000BASE-LX compliance guarantees interoperability with any standards-based Gigabit Ethernet equipment - SFP form factor with 1.25 Gbps data rate over single-mode fibre at 1310 nm wavelength, 10 km maximum reach - LC duplex connector, compatible with G.652 single-mode fibre (9 micron core) - Digital Optical Monitoring (DOM) support for real-time diagnostics of transmit power, receive power, temperature, and bias current - Hot-swappable design allows installation and removal without powering down the host device - Operating temperature range 0 to 70 degrees C for commercial deployment environments

Features

• IEEE 802.3z 1000BASE-LX compliance ensures interoperability with any vendor's standards-based Gigabit Ethernet switch, router, or media converter, regardless of the original transceiver manufacturer
• 1310 nm nominal wavelength FP laser transmitter with 1310 nm PIN photodiode receiver provides the long-wavelength transmission required for extended single-mode fibre links
• Digital Optical Monitoring implemented per SFF-8472 MSA allows in-service visibility of five real-time parameters: transmit optical power, receive optical power, laser bias current, supply voltage, and module temperature
• Hot-swappable SFP form factor compliant with INF-8074i MSA allows field installation and removal from any SFP cage without disrupting adjacent ports or requiring system shutdown
• Suitable for G.652 standard single-mode fibre infrastructure with 9 micron core diameter, the most widely deployed fibre type in campus and metro environments
• 1.25 GBd signalling rate with 8b/10b line encoding delivers full-duplex 1000 Mbps Ethernet throughput over duplex LC fibre pairs
• Commercial temperature range (0 to 70 degrees C) suits standard data centre, enterprise wiring closet, and campus network enclosures without requiring extended or industrial temperature rating

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: EX-SFP-1GE-LX-BCC
Compatible Replacement For: EX-SFP-1GE-LX
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP (Small Form-Factor Pluggable)
Data Rate: 1.25 Gbps
Standard: 1000BASE-LX (IEEE 802.3z)
Wavelength: 1310 nm nominal
Fibre Type: Single-mode (SMF), 9 micron core, G.652 compliant
Connector Type: LC duplex
Max Reach: 10 km (up to 10 km over single-mode fibre per datasheet, subject to fibre and link conditions)
DOM Support: Yes (Digital Optical Monitoring per SFF-8472)
Operating Temperature: 0 to 70 degrees C (commercial)
Compliance: SFP MSA (INF-8074i), RoHS

Also Known As

740-011614, CTP-SFP-1GE-LX, EX-SFP-1GE-LX, QFX-SFP-1GE-LX, SFP-1G-LX-C, SFP-1GE-LX, SRX-SFP-1GE-LX, SRX-SFP-1GE-LX-ET

FAQs

Q: Will this work in place of the Juniper EX-SFP-1GE-LX?
A: Yes. The EX-SFP-1GE-LX-BCC is built to the same 1000BASE-LX standard (IEEE 802.3z), uses the same SFP form factor, operates at the same 1.25 Gbps data rate, and transmits at the same 1310 nm wavelength over single-mode fibre. It is plug-and-play compatible and will initialize and perform identically to the Juniper original in any platform that lists EX-SFP-1GE-LX as a supported transceiver.

Q: Which Juniper platforms support this transceiver?
A: This module is compatible with Juniper EX Series switches, SRX security gateways, MX routers, QFX fabric switches, and ACX universal access routers that feature SFP slots and list 1000BASE-LX support. Any Juniper platform with an SFP interface that accepts the EX-SFP-1GE-LX will accept this compatible module. Consult your platform's hardware compatibility tool or datasheet to confirm SFP support.

Q: What type of fibre and patch cables do I need for 10 km reach?
A: You need G.652 standard single-mode fibre (9 micron core) with LC duplex connectors. The 10 km reach specification assumes typical single-mode fibre attenuation of approximately 0.5 dB per km at 1310 nm and standard LC connector insertion loss. Multimode fibre is not supported for this transceiver. Actual reach depends on the optical power budget, fibre quality, number of splices, and connector condition.

Q: Can I access DOM diagnostic data from my network operating system?
A: Yes. This transceiver implements Digital Optical Monitoring per the SFF-8472 MSA standard. Junos CLI commands such as 'show interfaces diagnostics optics' will display real-time transmit power, receive power, temperature, bias current, and voltage. This allows you to monitor link margin, detect failing transceivers before outages occur, and verify optical power levels during troubleshooting without external test equipment.

Q: Does this transceiver support autonegotiation or require manual speed configuration?
A: 1000BASE-LX is a fixed-rate physical layer standard operating at 1.25 GBd. The transceiver does not autonegotiate speed like 1000BASE-T copper interfaces. The host port must be configured for 1000 Mbps full-duplex operation. Most Juniper platforms auto-detect SFP module type and apply the correct speed and duplex settings, but you should verify port configuration matches the installed optic to avoid link failures.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.
