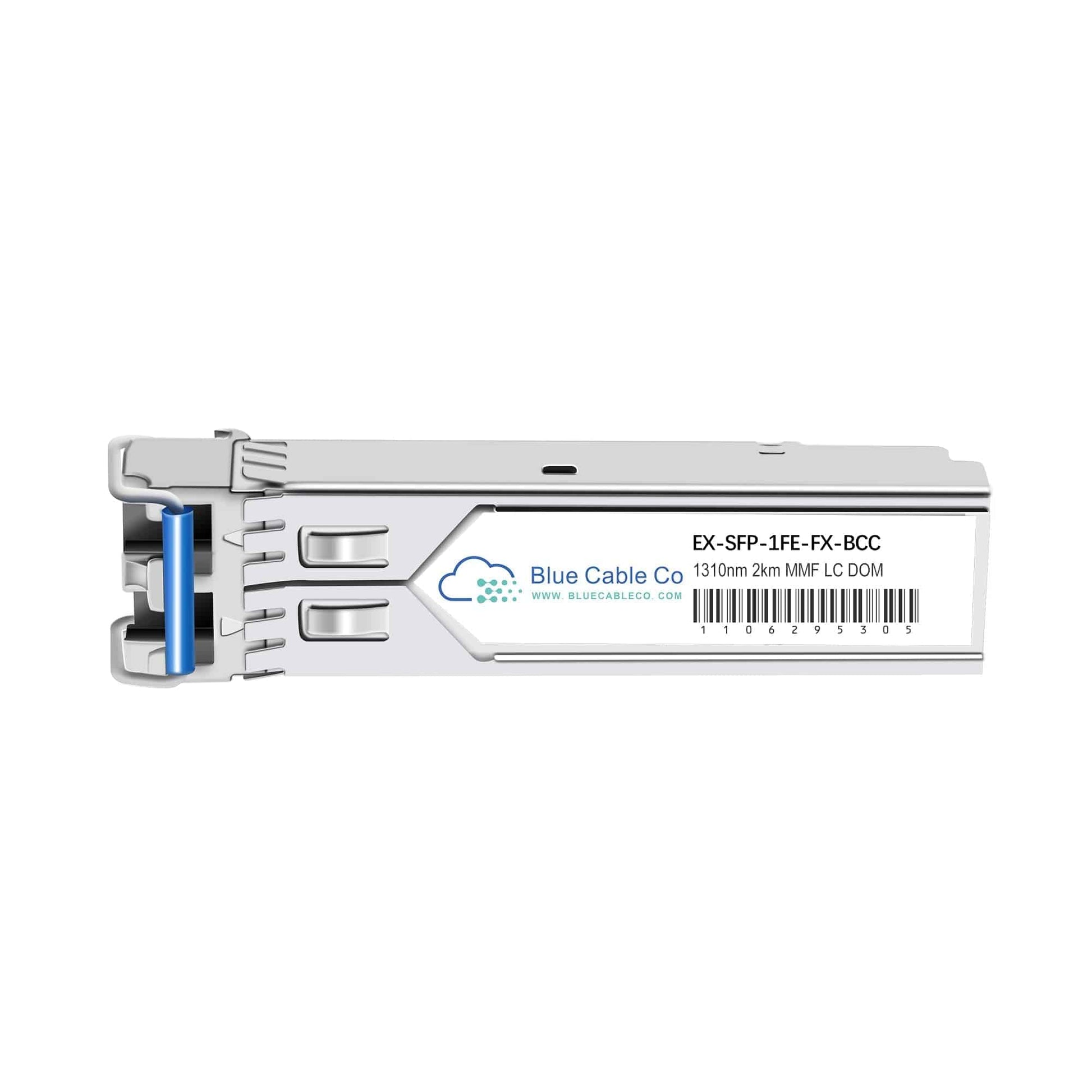

• Blue Cable Co. Juniper Compatible 100BASE-FX SFP Transceiver
1 1

Blue Cable Co

EX-SFP-1FE-FX-BCC | Juniper Compatible 100MB Multi-Mode - 2km (100BASE-FX)

EX-SFP-1FE-FX-BCC

11 in stock

$36.94 inc. GST
$33.58 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The EX-SFP-1FE-FX-BCC is a drop-in compatible replacement for the Juniper EX-SFP-1FE-FX. This SFP transceiver delivers plug-and-play compatibility with Juniper EX Series switches and other platforms supporting 100BASE-FX Fast Ethernet. - Complies with IEEE 802.3u 100BASE-FX and SFP MSA standards, ensuring interoperability across 100Mbps Fast Ethernet infrastructure - SFP form factor, 100Mbps data rate, 1310nm wavelength, duplex LC connector, 2km reach over multi-mode fibre - Digital Diagnostic Monitoring (DOM) support enables real-time performance tracking of optical parameters via I2C interface - Operates from 0 to 70 degrees C, suitable for standard temperature network environments - FP laser transmitter and PIN photodiode receiver with 11dB optical budget for reliable 2km transmission over OM1 or OM2 fibre

Features

• IEEE 802.3u 100BASE-FX compliance guarantees functional equivalence to original Juniper optics across all 100Mbps Fast Ethernet applications, including legacy FDDI infrastructure transitions
• 1310nm FP laser operates in the short wavelength window, offering lower cost than long-reach single-mode variants while maintaining adequate dispersion tolerance for 2km multi-mode links
• 11dB minimum optical budget accommodates typical insertion loss and fibre attenuation over 2km of OM1 (62.5/125 micron) or OM2 (50/125 micron) cable, calculated at 3dB/km for FDDI-grade fibre
• Digital Diagnostic Monitoring exposes transmit power, receive power, temperature, voltage, and bias current over the I2C bus, enabling proactive fault isolation without removing the module
• Hot-swappable design allows field replacement without powering down the host switch, reducing downtime during maintenance or upgrades
• SFP MSA SFF-8477 mechanical and electrical compliance ensures fit and signal integrity in any MSA-compliant SFP cage, including multi-vendor environments
• Low power dissipation under 1W typical enables high-density deployments in chassis with shared cooling resources

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we’ll deliver a replacement part before you return the faulty item—minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Also Known As

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: EX-SFP-1FE-FX-BCC
Compatible Replacement For: EX-SFP-1FE-FX
Compatibility: Juniper compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 100Mbps
Standard: 100BASE-FX, IEEE 802.3u
Wavelength: 1310nm
Fibre Type: Multi-mode (MMF)
Connector Type: Duplex LC
Max Reach: Up to 2km (per datasheet, subject to fibre and link conditions)
Fibre Compatibility: 50/125 micron OM2, 62.5/125 micron OM1/FDDI
DOM Support: Yes (Digital Diagnostic Monitoring)
Operating Temperature: 0 to 70 degrees C
Compliance: SFP MSA SFF-8477, RoHS

Also Known As

740-021487, SFP-1FE-FX

FAQs

Q: Will this work in place of the Juniper EX-SFP-1FE-FX?
A: Yes. The EX-SFP-1FE-FX-BCC is coded to the same 100BASE-FX standard using identical electrical and optical interfaces (SFP form factor, 100Mbps SERDES, 1310nm wavelength, duplex LC). It is plug-and-play compatible with the original and functions identically in all Juniper platforms that accept the EX-SFP-1FE-FX.

Q: Which Juniper switches support this transceiver?
A: This transceiver is compatible with Juniper EX Series switches including EX2200, EX2300, EX3200, EX3300, EX3400, EX4200, EX4300, and EX9200 family models. It works in any Juniper platform with an SFP slot that supports 100BASE-FX Fast Ethernet optics.

Q: What fibre types and reach can I achieve with this module?
A: This module is specified for 2km over multi-mode fibre at 1310nm. It supports both 50/125 micron OM2 and 62.5/125 micron OM1/FDDI-grade fibre. Actual reach depends on the fibre quality, connector loss, and patch panel insertion loss. The 11dB optical budget accommodates approximately 2km of OM1 fibre with typical connector and splice losses.

Q: How do I access DOM diagnostic data from this transceiver?
A: DOM parameters are accessed via the I2C management interface on pins 4 and 5 of the SFP connector. Most Juniper platforms expose this data through CLI commands (such as 'show interfaces diagnostics optics') or SNMP polling. You can monitor real-time transmit power, receive power, module temperature, supply voltage, and laser bias current without removing the transceiver.

Q: Can this transceiver support STM-1 or other 155Mbps SONET/SDH applications?
A: While the underlying SFP hardware can operate at data rates up to 155Mbps (including STM-1 and OC-3 signalling), this module is specifically coded and tested for 100BASE-FX Ethernet applications. Use in SONET/SDH applications would depend on whether the host platform negotiates the correct framing and whether the EEPROM coding is recognised by the SONET line card.
