Cisco WP-WIFI6-Z | Wi-Fi 6 Module for IR1800 Routers, 2x2 MIMO

WP-WIFI6-Z

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WP-WIFI6-Z is a field-replaceable Wi-Fi 6 (802.11ax) interface module designed for Cisco Catalyst IR1800 rugged industrial routers. This pluggable module delivers 2x2 MIMO wireless connectivity across both 2.4 GHz and 5 GHz bands with dual spatial streams, providing versatile deployment options including CAPWAP access point mode and workgroup bridge (WGB) mode. Ideal for industrial IoT environments requiring extended temperature range operation and flexible antenna configurations with external RP-SMA connectors.

Features

Wi-Fi 6 (802.11ax) technology with 2x2 MIMO and 2 spatial streams for enhanced throughput and efficiency
- Dual concurrent radios supporting 2.4 GHz and 5 GHz frequency bands
- Multiple deployment modes: CAPWAP access point, EWC, WGB, uWGB, and concurrent Root AP
- Extended temperature range operation for harsh industrial environments
- Flexible antenna port feature supporting dual-band or single-band configurations
- External RP-SMA antenna connectors for versatile RF coverage options
- Based on Cisco Aironet 9105AXI platform architecture with full feature alignment
- CAPWAP protocol support for centralized wireless LAN controller management
- Embedded Wireless Controller capability for standalone or distributed deployment
- Workgroup Bridge modes (WGB and uWGB) to wirelessly connect wired devices and networks
- Concurrent Root AP with wireless client operation for simultaneous AP and client functionality
- Internal Gigabit Ethernet connection to IR1800 switch infrastructure (wlan-GigabitEthernet 0/1/4)
- Dedicated management VLAN (2371) support for firmware upgrades and control traffic isolation
- VRF-aware management through wifi6-mgmt-vrf for traffic separation
- Field-upgradeable firmware with support for multiple image bundles (CAPWAP, UIW, EWC)
- Web authentication captive portal support for WGB Root AP deployments
- LED indicators for module enable status and Wi-Fi operational state
- Automatic thermal throttling from 2x2 MIMO to 1x1 SISO under high temperature conditions
- Integration with Cisco SD-WAN for centralized configuration and firmware management
- Support for NAT, ACL, and advanced routing features through IR1800 host router

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6)
- Radio Configuration: 2x2 MIMO with 2 spatial streams
- Frequency Bands: Dual-band 2.4 GHz and 5 GHz
- Compatibility: Cisco Catalyst IR1800 series routers (all models)
- Operating Modes: CAPWAP access point, Embedded Wireless Controller (EWC), Workgroup Bridge (WGB), Universal WGB (uWGB), Concurrent Root AP + wireless client
- Wired Interface: Internal connection to wlan-GigabitEthernet 0/1/4 switch port
- Antenna Connectors: External RP-SMA connectors with flexible antenna port support
- Software Requirement: IOS XE version 17.7.1 or higher on IR1800 router

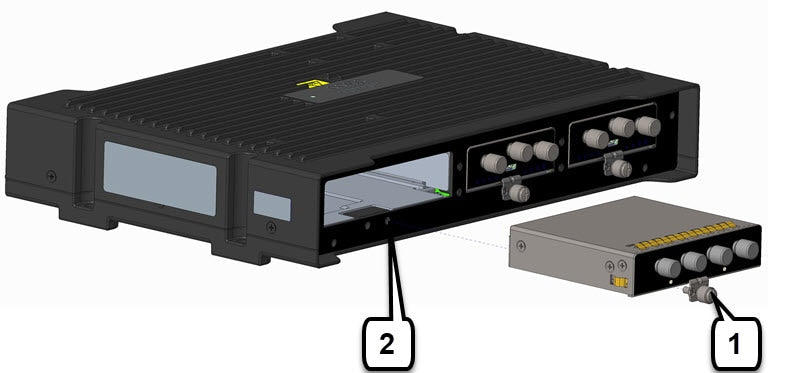

- Form Factor: Field Replaceable Unit (FRU), pluggable module (does not support hot-swap)
- Based on Platform: Cisco Aironet AP 9105AXI architecture
- Thermal Management: Supports 2x2 MIMO under normal conditions; throttles to 1x1 SISO under high temperature/low airflow
- Regulatory Domain: WP-WIFI6-Z designates regulatory domain Z

FAQs

Q: Which Cisco routers are compatible with the WP-WIFI6-Z module?
A: The WP-WIFI6-Z is compatible with all models in the Cisco Catalyst IR1800 rugged series router family. The host router must be running IOS XE version 17.7.1 or greater to support the module's functionality.

Q: What operating modes does the WP-WIFI6-Z support?
A: The module supports multiple deployment modes including CAPWAP access point (managed by external Cisco wireless controllers), Embedded Wireless Controller (EWC) mode, Workgroup Bridge (WGB) for connecting wired devices via wireless uplink, Universal WGB, and concurrent Root AP with wireless client operation. The module can be converted between modes through software configuration.

Q: Does the WP-WIFI6-Z support hot-swapping?
A: No, while the WP-WIFI6-Z is a field-replaceable unit (FRU), it does not support Online Insertion and Removal (OIR). The router should be powered down before installing or removing the module.

Q: What antenna configuration does this module use?

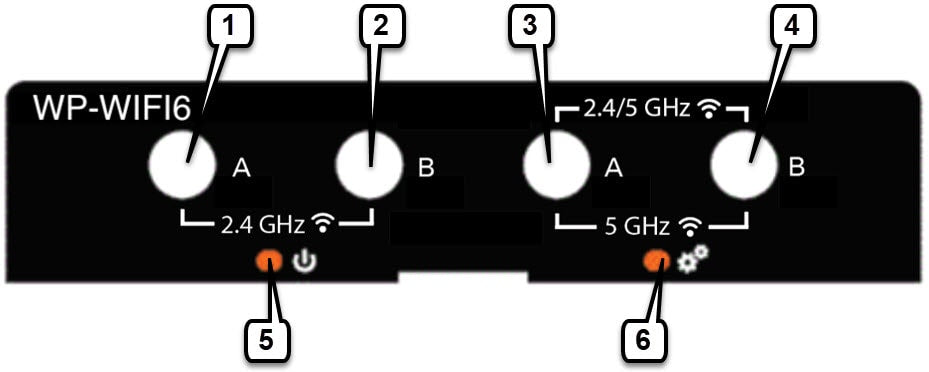

A: The module features external RP-SMA antenna connectors with flexible antenna port capability. Under normal conditions, both 2.4 GHz and 5 GHz radios operate in 2x2 MIMO mode using antenna ports A and B. The flexible antenna port feature allows configuration for dual-band or single-band operation depending on deployment needs.

Q: Can the WP-WIFI6-Z be managed through an external wireless controller?
A: Yes, when operating in CAPWAP mode, the module functions as a standard access point managed by external Cisco IOS XE wireless LAN controllers (such as Catalyst 9800 series). It acquires an IP address via DHCP and discovers the controller using Layer 3, DHCP, DNS, or IP subnet broadcast. Firmware upgrades can also be managed through Cisco SD-WAN controllers.
