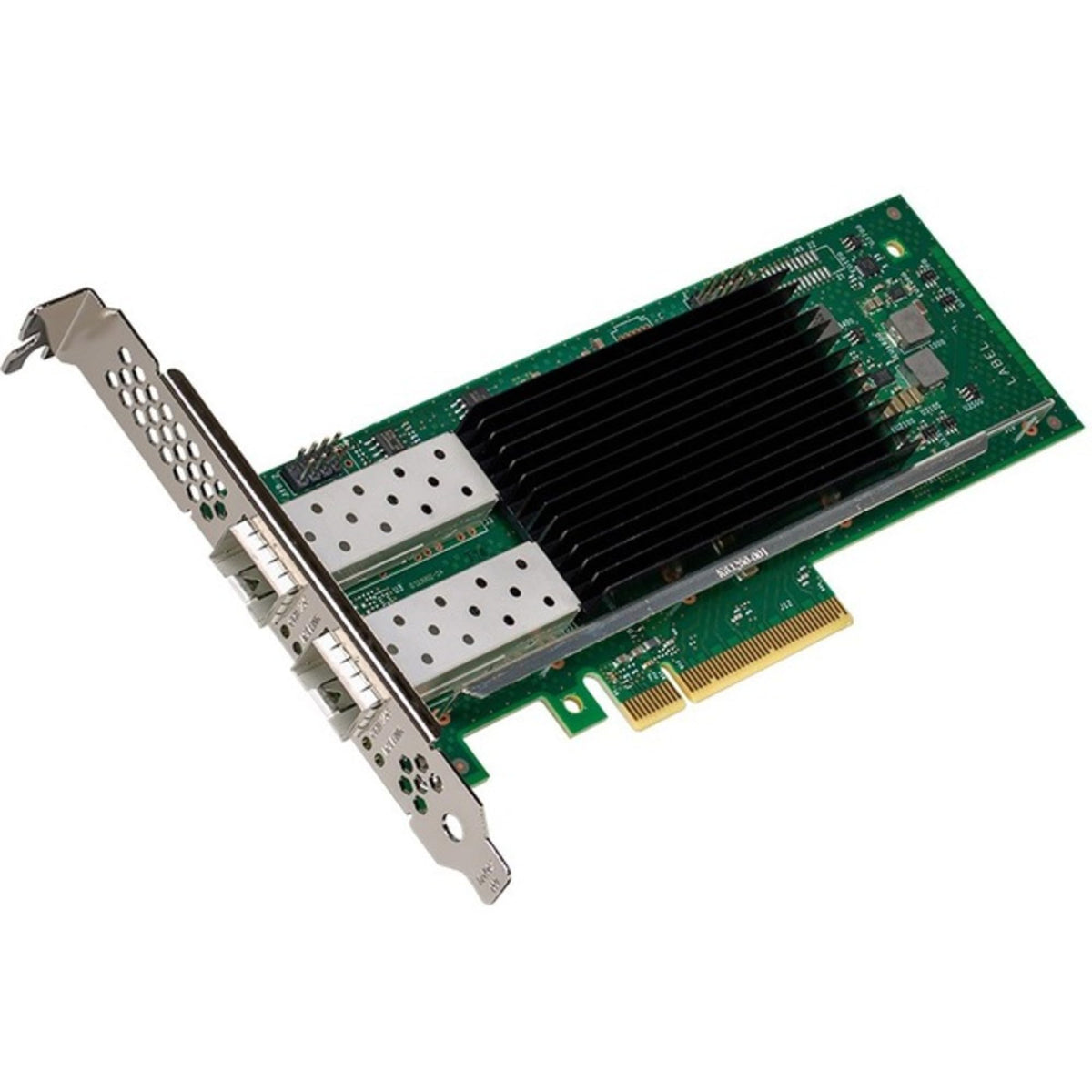

Cisco UCSXE-P-I8D25GF | E810-XXVDA2 2-Port 25G SFP28 NIC, UCS XE130c M8

UCSXE-P-I8D25GF

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Intel Ethernet Network Adapter E810-XXVDA2 is a dual-port 10/25GbE SFP28 network interface card in the Intel Ethernet 800 Series, built on the Intel Ethernet Controller E810-XXV AM2. This Cisco PID is the half-height, half-length, single-slot option card for the UCS XE130c M8 compute node in the UCS XE9305 chassis. It suits cloud, enterprise and storage workloads, along with communications, NFV and 5G RAN deployments.

Each of the two SFP28 ports runs at 25GbE or 10GbE over a PCIe 4.0 x8 host interface. RDMA is supported through both iWARP and RoCEv2 with 256K queue pairs, and the controller provides up to 256 SR-IOV virtual functions, 2048 Tx and 2048 Rx queues, and IEEE 1588 PTP v1/v2 timestamping. The card is bus-powered, drawing a maximum of 9.8 W with DACs or 13.7 W with optics. No licence or subscription is required for the adapter itself.

It installs in the left PCIe riser (S2) of the XE130c M8 and requires the UCSXE-1U-PCI-L Left PCIe Riser, with a maximum of one PCIe adapter per compute node. Supported physical layers include 25GBASE-CR, 25GBASE-SR, 25GBASE-LR, SFP+ Twinax, 10GBASE-SR and 10GBASE-LR.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Application Device Queues (ADQ) for dedicated traffic queues with lower latency and jitter
- Dynamic Device Personalization (DDP) for protocol-specific traffic acceleration
- RDMA support through both iWARP and RoCEv2
- Enhanced DPDK support for packet processing
- IEEE 1588 PTP v1/v2 timestamping for 5G RAN and time-sensitive deployments
- Hardware Root of Trust, signed firmware updates and automated recovery aligned with NIST 800-193
- Signed UEFI option ROM compatible with HTTPS boot
- Host virtualisation via VMDQ and SR-IOV, with VxLAN, GENEVE, NVGRE and MPLS offloads

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Controller: Intel Ethernet Controller E810-XXV AM2
- Ports: 2 x SFP28
- Data rate: 25/10GbE per port
- Host interface: PCIe 4.0 x8
- Form factor: HHHL, single-slot, left PCIe riser (S2) in the UCS XE130c M8
- Tx/Rx queues: 2048 Tx and 2048 Rx
- Interrupt vectors: 2048
- SR-IOV virtual functions: up to 256
- RDMA: iWARP and RoCEv2, 256K queue pairs
- VLAN support: up to 4096 VLAN tags
- ACLs: 8K programmable TCAM entries
- Switch ports (VSIs): 768
- Manageability: SMBus up to 1Mb/s, NC-SI 1.1 at 100Mb/s, MCTP over PCIe and SMBus, PLDM
- Power with DACs at 25GbE max traffic: 8.9 W typical, 9.8 W max
- Power with optics at 25GbE max traffic: 12.1 W typical, 13.7 W max
- Idle power with DACs: 8.0 W typical, 8.8 W max
- Dimensions: 167 mm x 68 mm (6.57 in x 2.67 in)
- Bracket: full-height installed, low-profile available
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 70 C
- Certifications: FCC B, UL, CE, VCCI, BSMI, RCM, KCC
- RoHS: compliant with EU Directive 2011/65/EU and 2015/863/EU

FAQs

Q: Does this network card need a licence or subscription?
A: No. The adapter itself does not require a licence or subscription.

Q: Which server does this card install in?
A: It is the PCIe option card for the Cisco UCS XE130c M8 compute node in the UCS XE9305 chassis. It fits the left PCIe riser (S2) and needs the UCSXE-1U-PCI-L Left PCIe Riser, with a maximum of one PCIe adapter per compute node.

Q: Which Cisco optics and cables work with it?
A: Cisco-tested options include SFP-25G-SR-S, SFP-10/25G-CSR-S, SFP-10/25G-LR-S, SFP-10G-SR/SR-S, SFP-10G-LR, SFP-25G-AOC10M, SFP-10G-AOC7M, SFP-H25G-CU1M/2M/3M/5M, SFP-H10GB-CU1M/3M/5M and QSFP-4SFP25G-CU1M/2M/3M. RS-FEC must be enabled for 2M, 3M and 5M 25G DACs.

Q: How much power does the card draw?
A: It is bus-powered from the PCIe slot. At 25GbE maximum traffic it draws up to 9.8 W with DACs or 13.7 W with optics, which includes up to 1.5 W per SFP28 optic.

Q: Does it support RDMA?
A: Yes. It supports RDMA through both iWARP and RoCEv2, with 256K queue pairs, which suits NVMe over Fabrics and low-latency storage workloads.
