Cisco UCSXE-M2-960G | UCS XE-Series 960GB M.2 SATA SSD, Boot Drive

UCSXE-M2-960G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

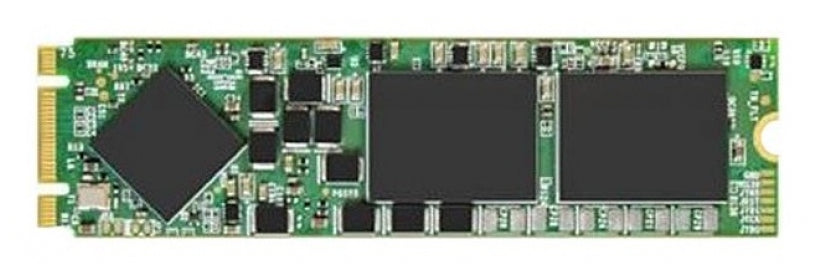

This 960GB M.2 SATA solid-state drive (Micron G2) is built for Cisco UCS XE-Series compute nodes in the Cisco Unified Edge platform. It is intended as the boot and operating system drive for edge compute nodes in the UCS XE9305 chassis, covering bare-metal, virtualisation, container and AI/ML edge workloads.

The drive connects through the UCSXE-M2-HWRD2 boot-optimised M.2 RAID controller, which runs the SATA interface at 6Gb/s and supports two M.2 drives. Drives are fitted in matched pairs, with RAID 1 mirroring or JBOD available. The 960GB capacity sits above the 240GB and 480GB options in the same range, and capacities cannot be mixed within one compute node. Boot mode is UEFI only.

It is supported in the Cisco UCS XE130c and XE150c M8 compute nodes. The drive is not hot-pluggable, so the compute node must be powered off before replacement. Volume configuration and monitoring of the controller and M.2 drives are handled through Cisco Intersight, and no licence is required for the drive itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Boot-optimised M.2 SATA storage for Cisco Unified Edge compute nodes
- Hardware RAID 1 mirroring across two M.2 drives via the boot-optimised RAID controller
- JBOD mode supported for independent drive use
- Managed and monitored through Cisco Intersight
- Field-replaceable within the UCS XE9305 chassis compute nodes
- Optional fit: M.2 drives can be omitted because E3.S NVMe drives can also be used for booting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSXE-M2-960G
- Description: 960GB 2.5in M.2 SATA Micron G2 SSD
- Capacity: 960 GB
- Interface: SATA (M.2), 6Gb/s via boot-optimised RAID controller
- Media: Micron G2
- Controller: UCSXE-M2-HWRD2 M.2 RAID Controller for UCS XE-Series Compute Nodes
- Drives per RAID controller: 2 M.2 drives
- RAID support: RAID 1 and JBOD
- Order quantity: 0 or 2 per compute node
- Capacity mixing: Not allowed within one compute node
- Boot mode: UEFI only, legacy boot not supported
- Recommended use: Boot-only device
- Hot-plug: Not supported, compute node must be powered off to replace
- Management: Cisco Intersight
- Compatible nodes: UCS XE130c and XE150c M8 in the UCS XE9305 chassis
- Related capacities: UCSXE-M2-240G (240GB), UCSXE-M2-480G (480GB)

FAQs

Q: Does this drive need a licence?
A: No licence is required for the drive itself. Volume configuration and monitoring of the M.2 controller and drives are handled through Cisco Intersight.

Q: Which compute nodes is it compatible with?
A: It is designed for the Cisco UCS XE130c and XE150c M8 compute nodes installed in the UCS XE9305 chassis. It is a separate part number from the UCSX-M2-960G-D (UCS X-Series) and UCS-M2-960G (C-Series) drives.

Q: Can I fit a single drive?
A: No. These drives are ordered in pairs, with a quantity of 0 or 2 per compute node. Both drives must be the same capacity, as mixing capacities in one node is not allowed.

Q: What RAID controller does it use?
A: It connects through the UCSXE-M2-HWRD2 M.2 RAID controller for UCS XE-Series compute nodes. The controller supports two M.2 drives in RAID 1 or JBOD.

Q: Can it be replaced while the node is running?
A: No. The drive is not hot-pluggable, so the compute node must be powered off before it is replaced.

Q: How does it differ from the other M.2 capacities?
A: This is the 960GB option. The same range also includes the UCSXE-M2-240G (240GB) and UCSXE-M2-480G (480GB), all used as boot drives behind the same RAID controller.
