Cisco

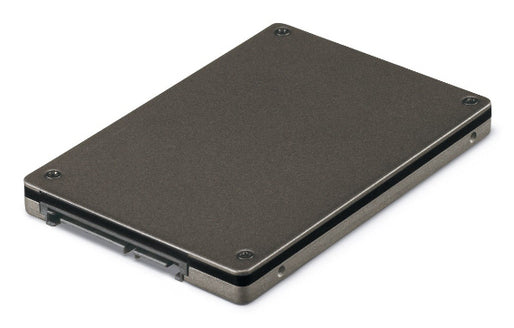

Cisco UCSXE-M2-480G | UCS XE-Series 480GB M.2 SATA Boot SSD, Micron G2

UCSXE-M2-480G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCSXE-M2-480G is a 480GB M.2 SATA boot solid-state drive built on Micron G2 flash, designed for Cisco UCS XE-Series compute nodes such as the UCS XE130c M8. It suits edge and AI deployments that need a dedicated boot volume separate from the main data drives.

The drive is installed on the node's M.2 boot-optimised RAID controller, UCSXE-M2-HWRD2, and is ordered in matched pairs. Paired drives support RAID 1 or JBOD, and the 480GB capacity sits between the 240GB and 960GB options in the same range. Capacities cannot be mixed within a single compute node. Boot mode is UEFI only, and Cisco recommends the drives for boot-only use.

The XE130c M8 compute node is housed in the UCS XE9305 chassis. Cisco Intersight can configure volumes and monitor the controller and installed M.2 drives. The drives are not hot-plug, so the compute node must be powered off before replacement. No licence is needed for the SSD itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Boot-optimised M.2 SATA storage for UCS XE-Series compute nodes
- Hardware RAID 1 across two M.2 drives via the UCSXE-M2-HWRD2 controller
- Configured and monitored through Cisco Intersight
- Alternative to E3.S NVMe drives for booting
- Micron G2 SSD with 480GB capacity per drive
- Pairs with sibling 240GB and 960GB capacities in the range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: UCSXE-M2-480G
- Capacity: 480GB
- Form factor: M.2 SATA
- SSD generation: Micron G2
- Interface: 6Gb/s SATA via the M.2 RAID controller
- Recommended use: boot-only devices
- Boot mode: UEFI only, legacy boot not supported
- Ordering quantity: drives must be ordered in quantities of 2
- Capacity mixing: different M.2 SATA capacities cannot be mixed in one compute node
- RAID support: RAID 1 and JBOD via UCSXE-M2-HWRD2 controller
- Management: Cisco Intersight
- Serviceability: not hot-plug, node must be powered off for replacement

FAQs

Q: Does this SSD need a licence?
A: No licence is required for the SSD itself. Cisco Intersight can be used to configure volumes and monitor the controller and drives.

Q: Which compute node does it fit?
A: It is used in the Cisco UCS XE130c M8 Compute Node, installed in the UCS XE9305 chassis. It plugs into the UCSXE-M2-HWRD2 M.2 RAID controller.

Q: Can I order a single drive?
A: No. The drives must be ordered in quantities of 2, and two matching drives are required per controller.

Q: Which RAID levels are supported?
A: RAID 1 and JBOD are supported through the UCSXE-M2-HWRD2 M.2 RAID controller.

Q: Can I mix this with a 240GB or 960GB M.2 SSD?
A: No. Mixing different M.2 SATA SSD capacities within a single compute node is not allowed.

Q: Can it be replaced while the node is running?
A: No. Hot-plug replacement is not supported, so the compute node must be powered off before replacing a drive.
