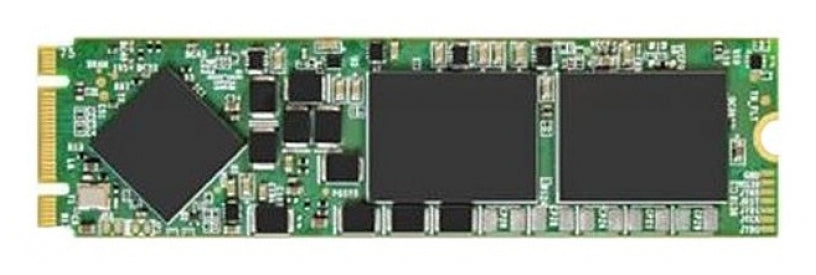

Cisco UCSXE-ECMC-M2-75G | UCS XE9305 eCMC 75GB M.2 SSD, Extended Image Cache

UCSXE-ECMC-M2-75G

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 75GB M.2 SSD is the extended image cache option for the Edge Chassis Management Controller (eCMC) in the Cisco UCS XE9305 chassis, part of Cisco Unified Edge. It gives the eCMC local storage so OS images can be staged on the chassis, supporting parallel compute OS installation through visual media. It suits edge deployments where several compute nodes need to be provisioned quickly from a local cache.

The module provides 75 GB of capacity on an M.2 SSD fitted to the eCMC boot-optimised M.2 module, connecting to the eCMC PCB over USB 2.0. One SSD is used per eCMC. The UCS XE9305 chassis takes two eCMCs, so the approved configuration selects one Extended Image Cache for each eCMC, two in total. This SKU is the eCMC option with the 75GB SSD, as distinct from UCSXE-ECMC-G1, which is the controller without an SSD.

It is powered from the eCMC module, so no separate power supply is needed, and it carries no licence of its own. It is intended for the UCSXE-ECMC-G1 eCMC in UCS XE9305 chassis running Cisco Unified Edge compute nodes, and the chassis is managed through Cisco Intersight.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Optional boot-optimised M.2 module for the eCMC
- Local storage to support parallel compute OS installation through visual media
- Works with the hot-swappable eCMC pair, which provides N+N management and intra-chassis network redundancy
- Managed through Cisco Intersight
- Powered from the eCMC, with no separate power supply
- Suited to edge sites that provision several compute nodes at once

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID (PID): UCSXE-ECMC-M2-75G
- Description: 75GB M.2 SSD for eCMC Extended Image Cache
- Capacity: 75 GB
- Form factor: M.2 SSD on eCMC boot-optimised M.2 module
- Interface to eCMC PCB: USB 2.0
- SSDs per eCMC module: 1
- Host platform: Cisco UCS XE9305 chassis (Cisco Unified Edge)
- Approved configuration: two eCMCs per chassis, one Extended Image Cache selected per eCMC (two in total)
- Ordering: eCMC orderable with M.2 SSD (UCSXE-ECMC-M2-75G) or without (UCSXE-ECMC-G1)
- Function: local storage for parallel compute OS installation via visual media
- Power: supplied by the eCMC module, no separate power supply

FAQs

Q: Does this SSD need a licence?
A: No. There is no licence for the SSD itself. The UCS XE9305 chassis is managed through Cisco Intersight, and Intersight server licences apply to the compute nodes.

Q: How many SSDs are needed per chassis?
A: One SSD is used per eCMC module. The UCS XE9305 chassis has two eCMCs, so the approved configuration selects one Extended Image Cache for each, two in total.

Q: What does it fit?
A: It is for the Cisco UCS XE9305 eCMC (UCSXE-ECMC-G1 Edge Chassis Management Controller), used with Cisco Unified Edge compute nodes such as the UCSXE 130c M8 and 150c M8.

Q: How does it differ from UCSXE-ECMC-G1?
A: UCSXE-ECMC-G1 is the eCMC without an SSD. UCSXE-ECMC-M2-75G is the eCMC option with a 75GB M.2 SSD installed for the extended image cache.

Q: Does it need separate power?
A: No. It is powered from the eCMC module, which draws from the chassis 12V supply, so no separate power supply is required.
