Cisco UCSX-V4-BRIDGE | UCS X-Series VIC 14000 Bridge Connector, mLOM to Mezz
SKU:UCSX-V4-BRIDGE
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

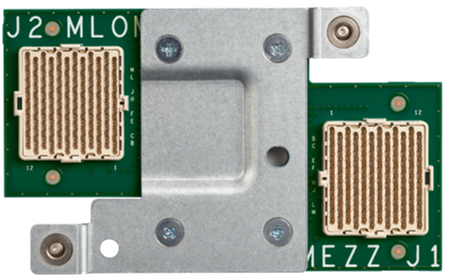

The UCSX-V4-BRIDGE is a bridge connector for the Cisco UCS X-Series modular system. It links the UCS VIC 14425 mLOM and the UCS VIC 14825 mezzanine card inside a single X-Series compute node, so both adapters work together. It suits data centre teams building out X-Series compute nodes that use the VIC 14000 family for 25G connectivity.
This is a passive accessory with no ports of its own. It is required alongside the VIC 14825 mezzanine card to connect the compute node to the UCSX-I-9108-25G Intelligent Fabric Module. It pairs the UCSX-V4-Q25GML 4x25G mLOM with the UCSX-V4-Q25GME 4x25G mezzanine, and the VIC 1400/14000 datasheet lists the Cisco UCS X210c M6 Compute Node as the supported server. No licence is needed for the connector itself.
With the bridge fitted, the blade can present up to 4x25G per adapter to the fabric as part of a policy-based, stateless VIC configuration.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Connects the VIC 14425 mLOM to the VIC 14825 mezzanine card in the same compute node
- Required with the VIC 14825 mezzanine for connectivity to the UCSX-I-9108-25G IFM
- Lets the X-Series blade present up to 4x25G per adapter to the fabric
- Supports a policy-based, stateless VIC configuration
- Passive design with no ports or ASIC of its own
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: UCSX-V4-BRIDGE
- Description: UCS VIC 14000 bridge connector between mLOM and mezz for X Compute Node
- Component type: Passive bridge connector accessory
- Bridges mLOM: UCSX-V4-Q25GML (UCS VIC 14425 4x25G mLOM)
- Bridges mezzanine: UCSX-V4-Q25GME (UCS VIC 14825 4x25G mezzanine)
- Supported server: Cisco UCS X210c M6 Compute Node
- Required for: Connecting the compute node with VIC 14825 mezz to the UCSX-I-9108-25G Intelligent Fabric Module
- Licence: None required for the connector itself
FAQs
Q: Which adapters does the UCSX-V4-BRIDGE connect?
A: It bridges the UCS VIC 14425 4x25G mLOM (UCSX-V4-Q25GML) and the UCS VIC 14825 4x25G mezzanine card (UCSX-V4-Q25GME) in a Cisco UCS X-Series compute node.
Q: Do I need it to connect to the Intelligent Fabric Module?
A: Yes. It is required with the VIC 14825 mezzanine card to connect the compute node to the UCSX-I-9108-25G Intelligent Fabric Module.
Q: Which compute node is it used in?
A: The VIC 1400/14000 datasheet lists the Cisco UCS X210c M6 Compute Node as the supported server.
Q: Does the bridge connector need a licence?
A: No licence is required for the bridge connector itself.
Q: Does it add a separate power load?
A: No separate power draw is listed for the connector. The adapters it connects are rated at a maximum of 24.8 W for the VIC 14425 and 42.4 W for the VIC 14825.
