Cisco

Cisco UCSX-RAID-M1L6 | UCS X-Series M1 RAID Controller, 24G Tri-Mode, 4GB FBWC

SKU:UCSX-RAID-M1L6

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

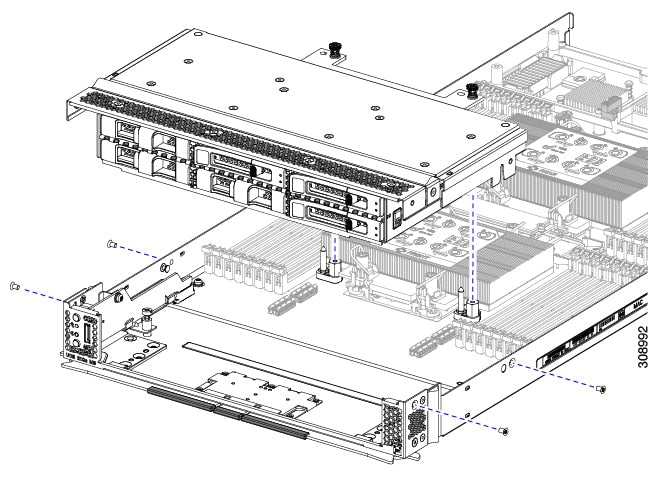

The UCS X-Series M1 Tri-Mode RAID Controller is a front mezzanine storage controller for Cisco UCS X210c compute nodes. It gives modular UCS X-Series systems hardware-RAID local storage across mixed SAS, SATA and U.3 NVMe drive configurations from a single card.

This variant is a 24G tri-mode controller with 4GB of flash-backed write cache (FBWC) and manages up to six hot-pluggable 2.5-inch drives. It supports RAID levels 0, 1, 5, 6, 10 and 50 across SAS, SATA and U.3 NVMe drives, and offers an optional pass-through mode for up to two U.3 NVMe drives in drive slots 5 and 6.

The card is powered from the compute node and occupies the single front mezzanine slot, so it cannot be combined with the E3.S pass-through controller or the GPU front mezzanine. It is listed as a front mezzanine option for the UCS X210c M8 compute node alongside the UCSX-X10C-RAIDF-D, UCSX-X10C-PT4F-D, UCSX-X10C-PTE3 and UCSX-X10C-GPUFM-D options.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware RAID for SAS, SATA and U.3 NVMe drives from a single controller
- Flash-backed write cache protects cached writes
- Hot-swappable 2.5-inch drive support through the front mezzanine
- Optional NVMe pass-through for drive slots 5 and 6
- Supports RAID 0, 1, 5, 6, 10 and 50 across six drives

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Part number: UCSX-RAID-M1L6
- Description: 24G Tri-Mode M1 RAID Controller with 4GB FBWC, 6 drives
- Connector type: Front mezzanine
- Interface speed: 24G tri-mode (SAS, SATA, U.3 NVMe)
- Cache: 4GB flash-backed write cache (FBWC)
- Maximum drives: 6 x 2.5-inch SAS/SATA SSD or U.3 NVMe
- RAID levels: 0, 1, 5, 6, 10 and 50
- NVMe pass-through option: up to 2 U.3 NVMe drives (drive slots 5-6)
- Drive form factor: 2.5-inch hot-pluggable drives in sleds
- Installation: one front mezzanine slot per compute node
- Power: supplied by the UCS X-Series compute node

FAQs

Q: Which compute nodes does this controller fit?
A: It is a front mezzanine option for the Cisco UCS X210c compute node and is listed on the UCS X210c M8 spec sheet. Check the matching X210c M7 spec sheet for M7 support.

Q: Can I use it with other front mezzanine cards?
A: No. It occupies the single front mezzanine slot, so it cannot be combined with the E3.S pass-through controller or the GPU front mezzanine.

Q: Does it need a separate power supply?
A: No. It is powered from the UCS X-Series compute node it is installed in.

Q: How many drives does it support and which types?
A: It manages up to six 2.5-inch hot-pluggable drives, which can be SAS SSD, SATA SSD or U.3 NVMe.

Q: Can it pass NVMe drives straight through without RAID?
A: Yes. An optional pass-through mode supports up to two U.3 NVMe drives in drive slots 5 and 6.
