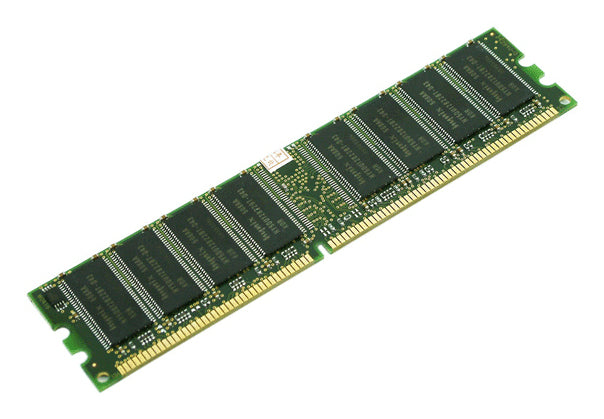

Cisco UCSX-MRX64G2RE1 | UCS X-Series M7 64GB DDR5-4800 RDIMM Memory, 2Rx4
SKU:UCSX-MRX64G2RE1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 64GB DDR5-4800 registered DIMM is built for Cisco UCS X-Series M7 modular compute nodes, specifically the UCS X210c M7 and UCS X410c M7 running 4th Gen Intel Xeon Scalable processors. It suits memory expansion or replacement in virtualisation, database and other memory-intensive data centre workloads.
The module is a dual-rank 2Rx4 RDIMM using 16Gb DRAM density at 1.1V, with on-die ECC. With 4th Gen Intel Xeon processors it runs at up to 4800 MT/s at one DIMM per channel and up to 4400 MT/s at two DIMMs per channel. Each CPU provides 8 memory channels with up to 2 DIMMs per channel, allowing up to 32 DIMMs in a 2-socket X210c M7 and up to 64 DIMMs in a 4-socket X410c M7. The x4 DRAM organisation supports SDDC and ADDDC RAS features.
This is the DDR5-4800 part, so keep a server populated with DDR5-4800 modules only. DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in a single server. The DDR5-5600 64GB equivalent is UCSX-MRX64G2RE3. It can be combined with 32GB RDIMMs of the same speed grade per Cisco's supported configuration tables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Registered DDR5 with on-die ECC
- Supports SDDC and ADDDC RAS features via x4 DRAM organisation
- Higher bandwidth than DDR4-3200, with Cisco citing up to 50% greater peak bandwidth for DDR5-4800
- Can be combined with 32GB RDIMMs of the same speed grade per Cisco's supported configuration tables
- Cisco-qualified memory for UCS X-Series M7 compute nodes
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Cisco PID: UCSX-MRX64G2RE1
- Capacity: 64GB
- DIMM type: RDIMM (registered DDR5 with on-die ECC)
- Speed: DDR5-4800 MT/s
- Rank and organisation: 2Rx4
- DRAM density: 16Gb
- Operating voltage: 1.1V
- Effective speed with 4th Gen Intel Xeon: up to 4800 MT/s at 1DPC, up to 4400 MT/s at 2DPC
- Memory channels: 8 per CPU, up to 2 DIMMs per channel
- Maximum DIMMs per server: 32 (2-socket X210c M7), 64 (4-socket X410c M7)
- Supported CPUs: 4th Gen Intel Xeon Scalable
- Compatible servers: Cisco UCS X210c M7, UCS X410c M7
- Mixing rule: DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in a single server
FAQs
Q: Which servers is this memory compatible with?
A: It is designed for Cisco UCS X210c M7 and UCS X410c M7 compute nodes with 4th Gen Intel Xeon Scalable processors.
Q: Can I mix this with DDR5-5600 DIMMs?
A: No. DDR5-4800 and DDR5-5600 DIMMs cannot be mixed in a single server. When expanding a DDR5-4800 server, use only DDR5-4800 modules.
Q: What speed will it run at?
A: With 4th Gen Intel Xeon Scalable processors it runs at up to 4800 MT/s at one DIMM per channel and up to 4400 MT/s at two DIMMs per channel.
Q: Which part number applies to 5th Gen Xeon configurations?
A: 5th Gen Xeon configurations use the DDR5-5600 64GB part UCSX-MRX64G2RE3 instead of this DDR5-4800 module.
Q: How many of these DIMMs can a server hold?
A: Each CPU has 8 memory channels with up to 2 DIMMs per channel, giving up to 32 DIMMs in a 2-socket X210c M7 and up to 64 DIMMs in a 4-socket X410c M7.
